MMIC, RFIC and hybrid amplifiers

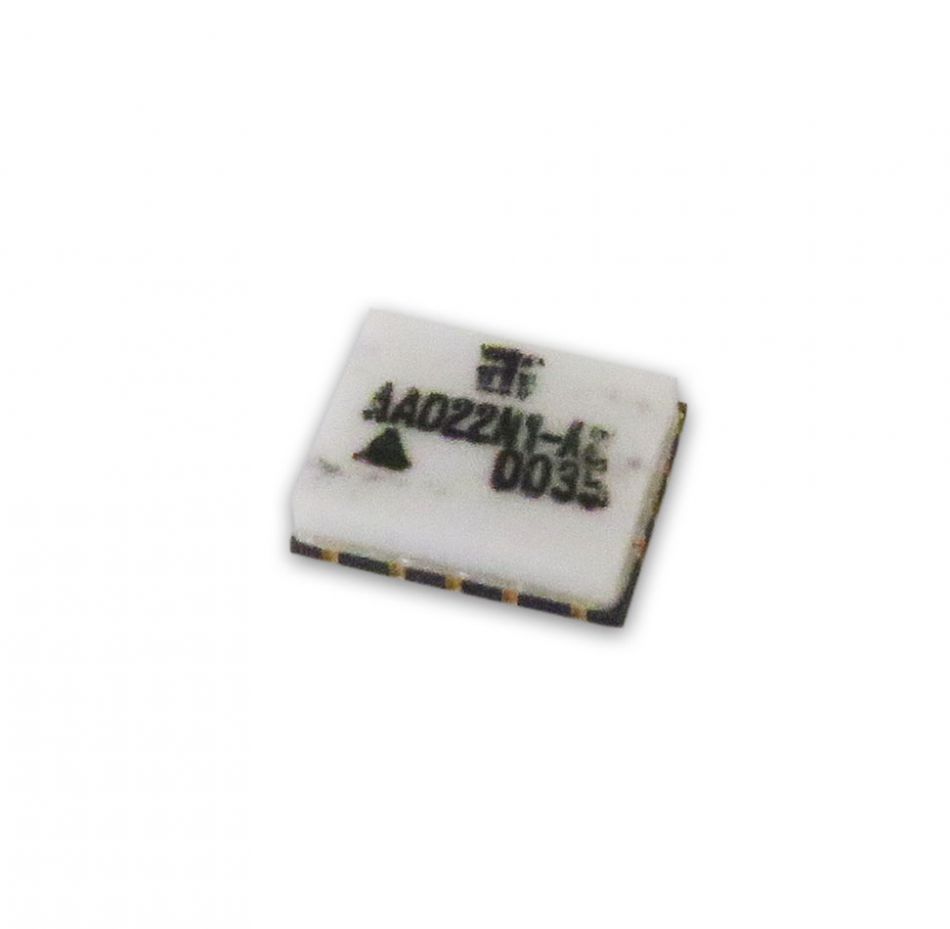

Low noise amplifier, ceramic package

Order code:	AA022N1-A2
	Low noise amplifier, ceramic package Alpha AA022N1-A2
Conditions:	N (The product is brand new)
Min. frequency:	20 GHz
Max. frequency:	24 GHz
Operating voltage:	5.5 V
Operating current:	38 mA
Gain (max.):	17 dB
Output power (max.):	8 dBm
Noise figure (min.):	3.2 dB
Package:	ceramic
Mounting:	SMD

Go to product page AA022N1-A2

GaAs MMIC amplifier, SOT-89

Order code:	AG101-G
	GaAs MMIC amplifier, SOT-89 WJ Communications AG101-G
Conditions:	N (The product is brand new)
Min. frequency:	60 MHz
Max. frequency:	3 GHz
Operating voltage:	4.5 V
Operating current:	50 mA
Gain (max.):	16 dB
Output power (max.):	15 dBm
Noise figure (min.):	2.4 dB
Package:	SOT-89
Mounting:	SMD

Go to product page AG101-G

GaAs MMIC amplifier, SOT-89

Order code:	AG102
	GaAs MMIC amplifier, SOT-89 WJ Communications AG102
Conditions:	N (The product is brand new)
Min. frequency:	60 MHz
Max. frequency:	3 GHz
Operating voltage:	4.5 V
Operating current:	70 mA
Gain (max.):	16 dB
Output power (max.):	18 dBm
Noise figure (min.):	2.4 dB
Package:	SOT-89
Mounting:	SMD

Go to product page AG102

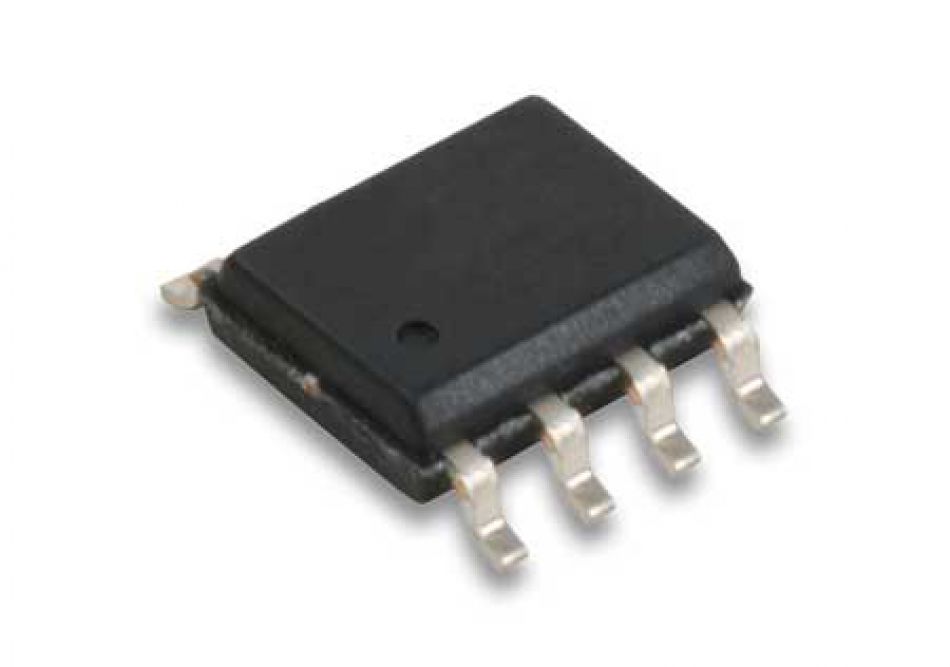

1W high linearity MMIC InGaP HBT amplifier, SOIC-8

Order code:	AH225
	1W high linearity MMIC InGaP HBT amplifier, SOIC-8 TriQuint AH225-S8G
Conditions:	N (The product is brand new)
Min. frequency:	400 MHz
Max. frequency:	2.7 GHz
Operating voltage:	5 V
Operating current:	300 mA
Dissipated power:	600 mW
Gain (max.):	20.1 dB
Output power (max.):	31 dBm
Package:	SOIC-8
Mounting:	SMD

Go to product page AH225

GaAs MMIC amplifier, SOT-89

Order code:	AM1
	GaAs MMIC amplifier, SOT-89 WJ Communications AM1
Conditions:	N (The product is brand new)
Min. frequency:	60 MHz
Max. frequency:	3 GHz
Operating voltage:	4.5 V
Operating current:	78 mA
Gain (max.):	16 dB
Output power (max.):	18 dBm
Noise figure (min.):	2.4 dB
Package:	SOT-89
Mounting:	SMD

Go to product page AM1

GaAs MMIC amplifier, SOIC-8

Order code:	AM50-0003
	GaAs MMIC amplifier, SOIC-8 M/A-COM AM50-0003
Conditions:	N (The product is brand new)
Min. frequency:	800 MHz
Max. frequency:	1000 MHz
Operating voltage:	3 V, 5 V
Operating current:	20 mA, 60 mA
Gain (max.):	13.5 dB, 15 dB
Output power (max.):	8.5 dBm, 16.5 dBm
Noise figure (min.):	1.2 dB
Package:	SOIC-8
Mounting:	SMD

Go to product page AM50-0003

GaAs MMIC amplifier, SOIC-8

Order code:	AM50-0004
	GaAs MMIC amplifier, SOIC-8 M/A-COM AM50-0004
Conditions:	N (The product is brand new)
Min. frequency:	1400 MHz
Max. frequency:	2000 MHz
Operating voltage:	3 V, 5 V
Operating current:	20 mA, 45 mA
Gain (max.):	12.5 dB, 14 dB
Output power (max.):	9 dBm, 16 dBm
Noise figure (min.):	1.4 dB, 1.5 dB
Package:	SOIC-8
Mounting:	SMD

Go to product page AM50-0004

6 - 20 GHz general purpose amplifier

Order code:	AMMP-5618
	6 - 20 GHz general purpose amplifier Avago AMMP-5618-BLK
Conditions:	N (The product is brand new)
Min. frequency:	6 GHz
Max. frequency:	20 GHz
Operating voltage:	5 V
Operating current:	107 mA
Dissipated power:	535 mW
Gain (max.):	13 dB
Output power (max.):	19 dBm
Noise figure (min.):	4.4 dB
Package:	5x5 mm ceramic
Mounting:	SMD

Go to product page AMMP-5618

GaAs MMIC variable gain amplifier, MW-6

Order code:	CGY120
	GaAs MMIC variable gain amplifier, MW-6 Siemens CGY120
Conditions:	N (The product is brand new)
Min. frequency:	800 MHz
Max. frequency:	2.5 GHz
Operating voltage:	5 V
Operating current:	70 mA
Dissipated power:	600 mW
Gain (max.):	24 dB
Output power (max.):	21 dBm
Package:	MW-6
Mounting:	SMD

Go to product page CGY120

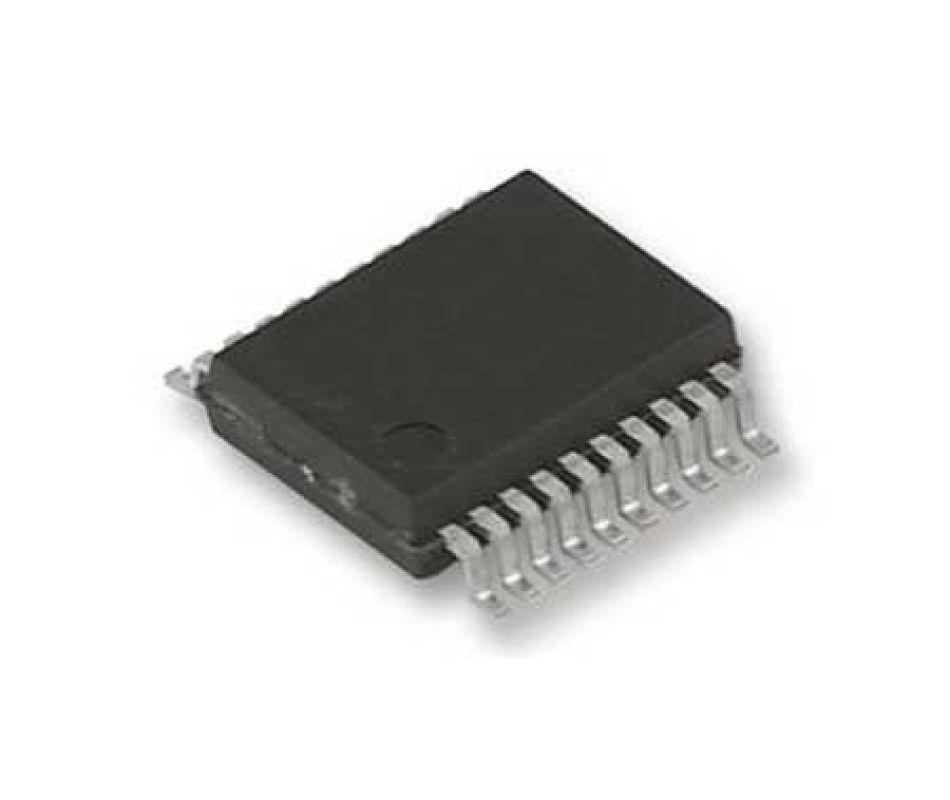

GSM dual band GaAs MMIC amplifier, HTSSOP-20

Order code:	CGY2014ATW
	GSM dual band GaAs MMIC amplifier, HTSSOP-20 Philips CGY2014ATW
Conditions:	N (The product is brand new)
Min. frequency:	880 MHz, 1710 MHz
Max. frequency:	915 MHz, 1910 MHz
Operating voltage:	3.5 V
Operating current:	200 mA
Dissipated power:	2 W
Output power (max.):	32.5 dBm, 35 dBm
Package:	HTSSOP-20
Mounting:	SMD

Go to product page CGY2014ATW

GSM dual band GaAs MMIC amplifier, HTSSOP-20

Order code:	CGY2014TT
	GSM dual band GaAs MMIC amplifier, HTSSOP-20 Philips CGY2014TT
Conditions:	N (The product is brand new)
Min. frequency:	880 MHz, 1710 MHz
Max. frequency:	915 MHz, 1910 MHz
Operating voltage:	3.5 V
Dissipated power:	2 W
Output power (max.):	32.5 dBm
Package:	HTSSOP-20
Mounting:	SMD

Go to product page CGY2014TT

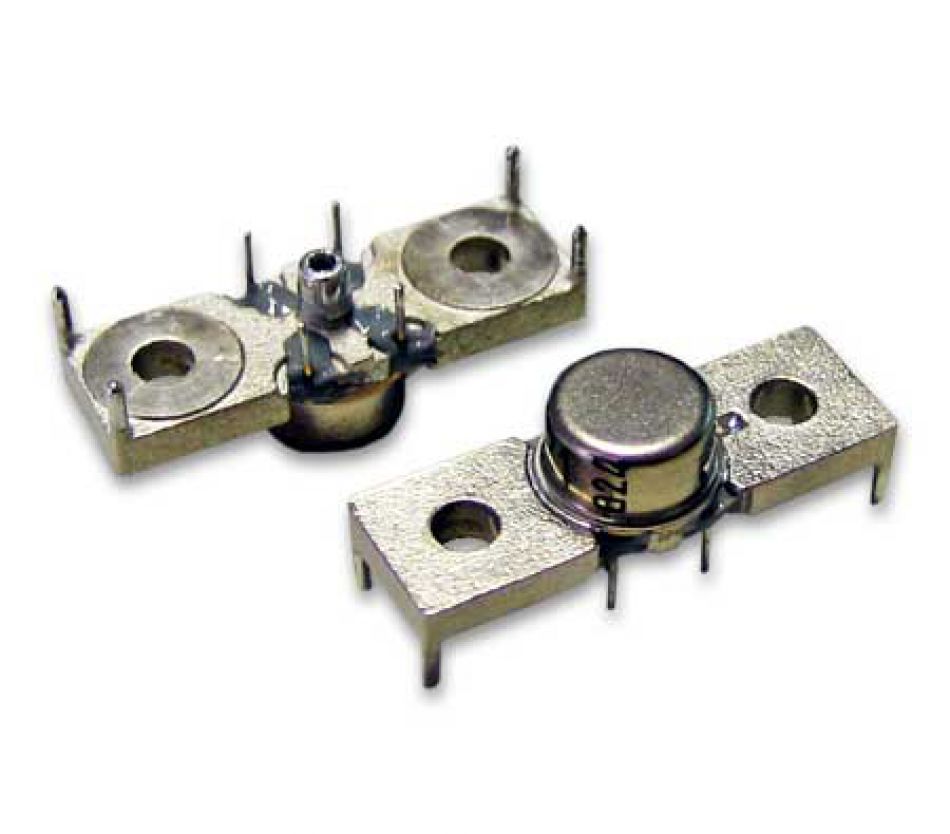

GaAs MMIC amplifier, TO-12 on heat-sink

Order code:	CGY21
	GaAs MMIC amplifier, TO-12 on heat-sink Siemens CGY21
Conditions:	N (The product is brand new)
Min. frequency:	0 Hz
Max. frequency:	2000 MHz
Operating voltage:	4.5 V
Operating current:	160 mA
Dissipated power:	2 W
Gain (max.):	21 dB
Output power (max.):	19 dBm
Noise figure (min.):	3.9 dB
Package:	TO-12
Mounting:	thru-hole

Go to product page CGY21

Power amplifier MMIC, ceramic hermetic package

Order code:	EMM5074VU
	Power amplifier MMIC, ceramic hermetic package Eudyna EMM5074VU
Conditions:	N (The product is brand new)
Min. frequency:	5.8 GHz
Max. frequency:	8.5 GHz
Operating voltage:	6 V
Operating current:	1.4 A
Gain (max.):	26 dB
Output power (max.):	33 dBm
Package:	6.7x8.3 mm ceramic
Mounting:	SMD

Go to product page EMM5074VU

Power amplifier MMIC, ceramic hermetic package

Order code:	EMM5832VU
	Power amplifier MMIC, ceramic hermetic package Eudyna EMM5832VU
Conditions:	N (The product is brand new)
Min. frequency:	21.2 GHz
Max. frequency:	26.5 GHz
Operating voltage:	6 V
Operating current:	800 mA
Gain (max.):	23 dB
Output power (max.):	31 dBm
Package:	6.7x8.3 mm ceramic
Mounting:	SMD

Go to product page EMM5832VU

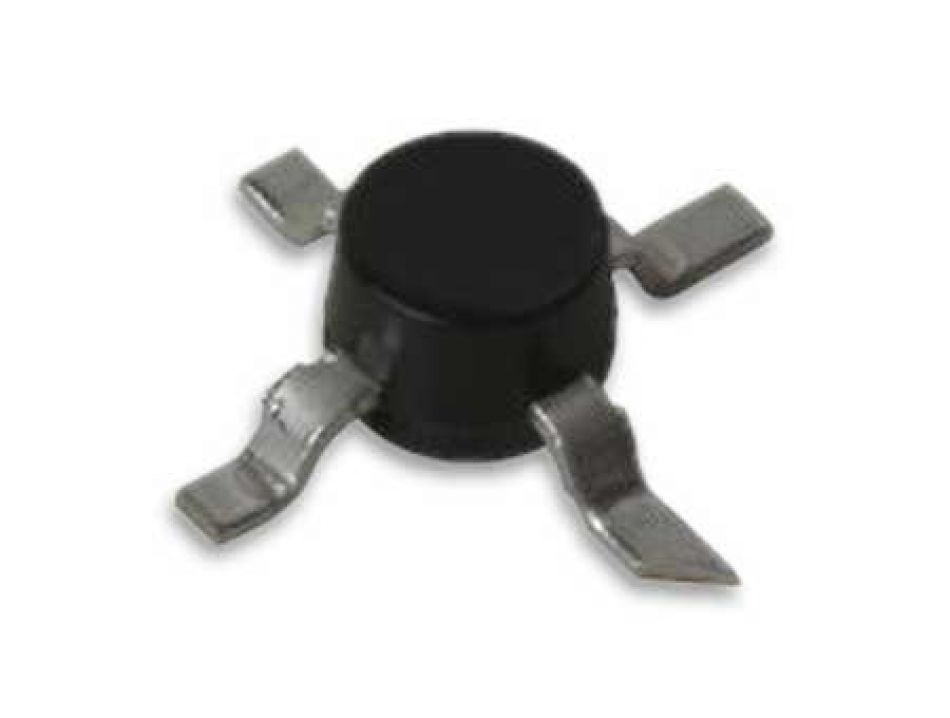

InGaP HBT MMIC amplifier, micro-X

Order code:	ERA-1SM
	InGaP HBT MMIC amplifier, micro-X Mini-Circuits ERA-1SM+
Conditions:	N (The product is brand new)
Min. frequency:	0 Hz
Max. frequency:	8 GHz
Operating voltage:	3.4 V
Operating current:	40 mA
Dissipated power:	330 mW
Gain (max.):	12.9 dB
Output power (max.):	12 dBm
Noise figure (min.):	4.3 dB
Package:	micro-X
Mounting:	SMD

Go to product page ERA-1SM
