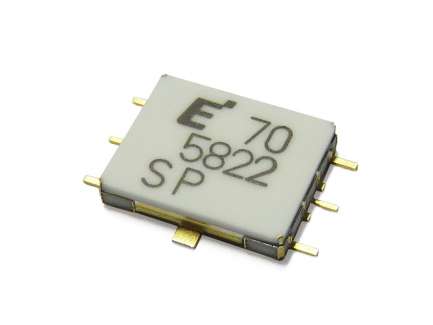

Power amplifier MMIC, ceramic hermetic package

• RoHS compliant:
  Yes
• Min. frequency:
  17.7 GHz
• Max. frequency:
  19.7 GHz
• Operating voltage:
  6 V
• Operating current:
  850 mA
• Gain (max.):
  21 dB
• Output power (max.):
  32 dBm
• Package:
  6.7x8.3 mm ceramic
• Mounting:
  SMD

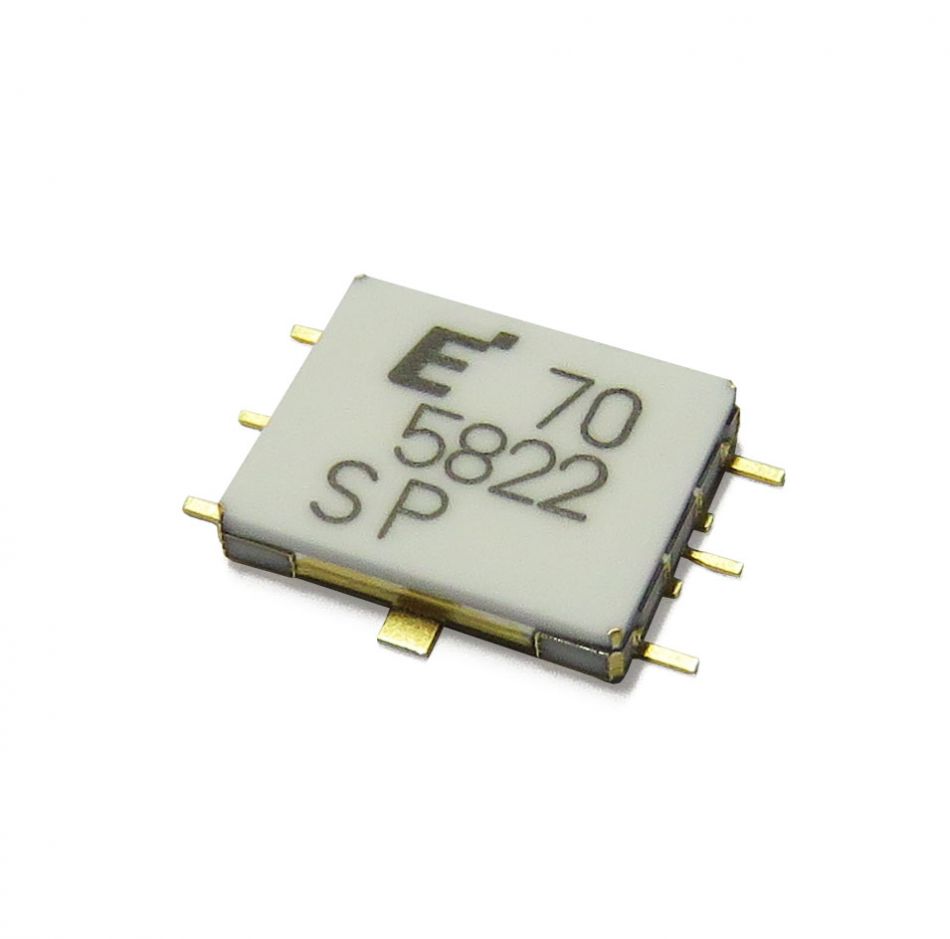

Power amplifier MMIC, ceramic hermetic package

This Eudyna (former Fujitsu and now Sumitomo) MMIC has input and output matched at 50Ω and 1.5W high gain output power, to simplify the implementation of this device, it has input and output dc-block capacitors already included in its package.

Max frequency: 17 - 20.5 GHz - 1W
Optimal frequency: 17.7 - 19.7 GHz - 1.5W
