Brand: Mini-Circuits
Manufacturer code: ERA-5SM+
Order code: ERA-5SM

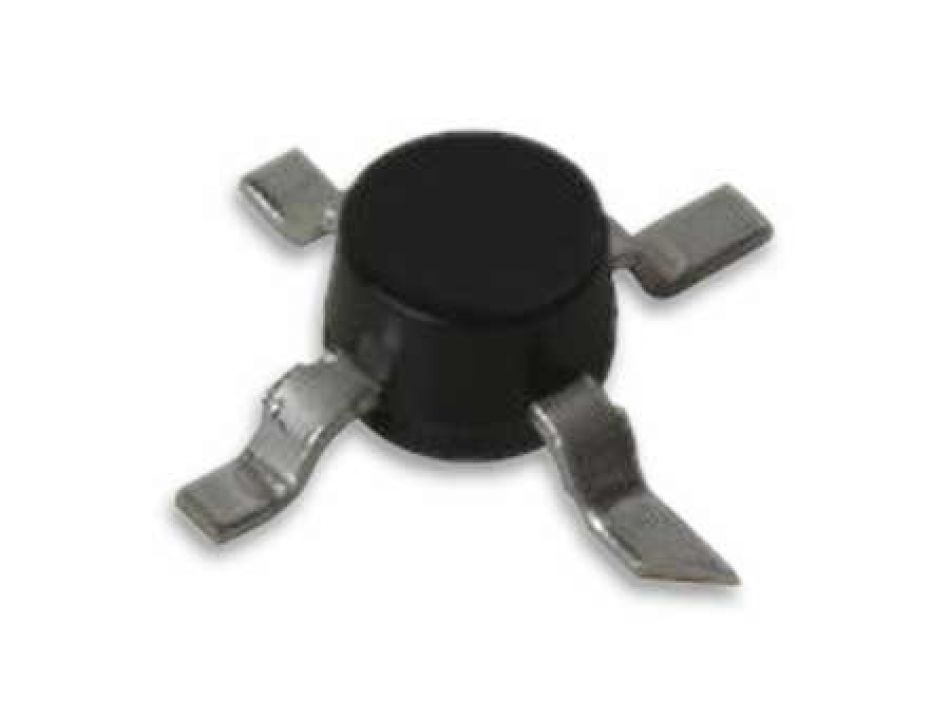

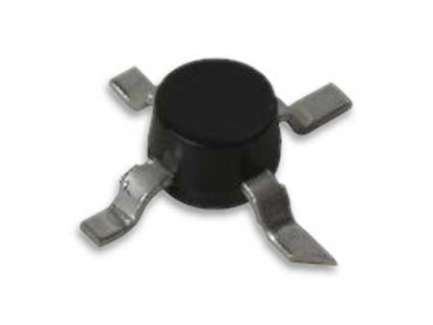

InGaP HBT MMIC amplifier, micro-X

Product conditions: N
$6.04
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
128 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $6.04 $6.04
5+ $5.67 $28.33
10+ $5.29 $52.95
50+ $4.98 $248.91
100+ $4.76 $475.98
250+ $4.55 $1,138.10
(VAT tax not included)
Compliance
Country of origin MY
EU Tariff Code 85423390
Weight 0.50 g
RoHS Yes
REACH SVHC not present
  • 0 Hz
  • 4 GHz
  • 4.9 V
  • 65 mA
  • 22 dB
  • 18.4 dBm
  • 3.5 dB
  • micro-X
  • SMD

InGaP HBT MMIC amplifier, micro-X

Usable up to 10 GHz

GAIN:
- 20 dB @ 500 MHz
- 19 dB @ 1 GHz
- 18 dB @ 2 GHz
- 17 dB @ 3 GHz
- 16 dB @ 4 GHz
- 12 dB @ 6 GHz

ERA-5SM
/
  Title Dimension
Datasheet 450.7 kB
