LOW LOSS COAXIAL CABLES
To have low loss coaxial cables it is possible to act in these ways:
- Increase the diameter of the cable (increase the size of cable)
- Improve the skin effect of conductors (decrease the attenuation due to conductor)
- Increase the percentage of air in the dielectric (improve the quality of the dielectric)
Increase the size of the cable has a practical limit beyond which, cost, weight, handling etc... become unsustainable, by further increasing the diameter there is a reduction of the cutoff frequency.
The skin effect is optimized to the maximum by using silver plated conductors or using a solid central conductor or both of them.
Increase the amount of air into the dielectric is the best solution to decrease attenuation. Years ago the problem was solved in TV antenna connection using as dielectric the cheap foam, in fact, these cables are still considered with the lowest loss. The trick is to use a cheap dielectric and easily made by adding a high concentration of air (inert gas) , obviously the scarce specifications necessary for the consumer TV field does not make them suitable for industrial uses. For the industrial purpose are available foam corrugated cables (for example Cellflex cables) and foam not corrugated 10 mm cables like RG8-FOAM, Ecoflex10, WBC400, RT5020, H1000, LMR400 etc..., and 5.5 mm cables like LMR240, WBC240, H155, etc..., these cables are suitable for industrial applications at a reasonable cost.
For more complex microwave applications it is available a Huber+Suhner S_04272_B cable with 5.5 mm diameter
Order code: | K02252D |
---|---|
![]() |

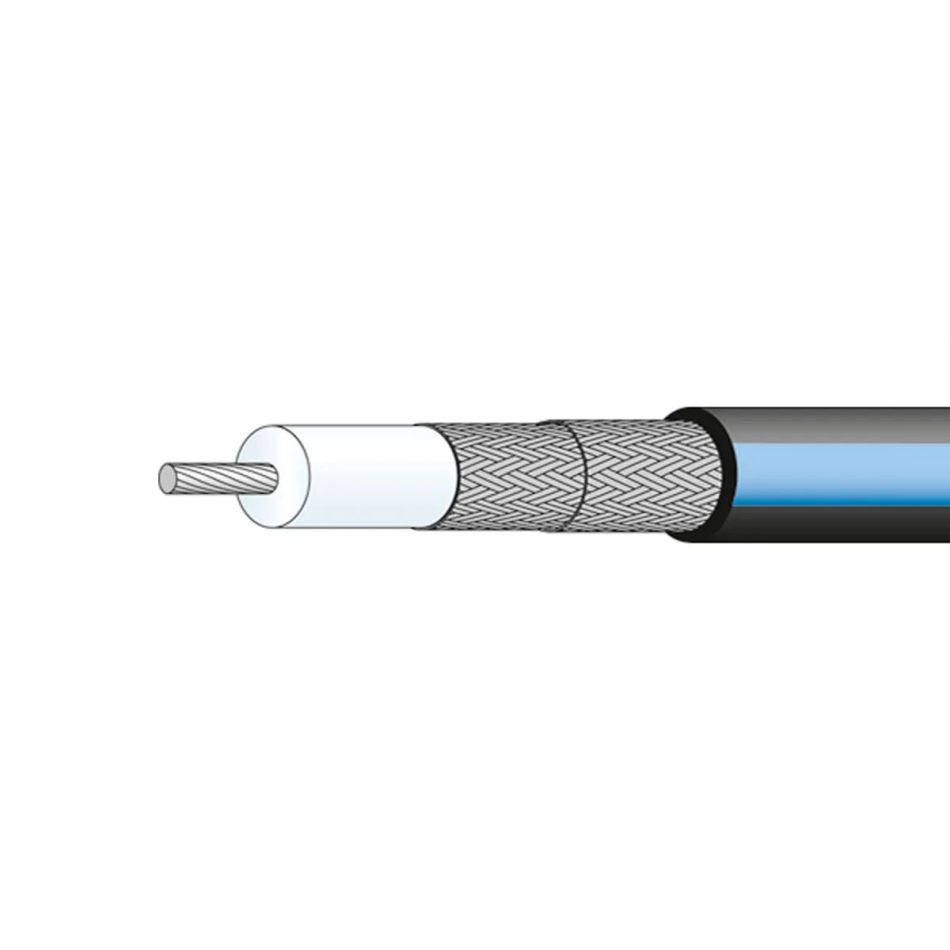

Dual shield flexible coaxial cable, 50 Ohm Huber+Suhner K_02252_D |
Conditions: | N (The product is brand new) |
Application: | high temperature / high power |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 3 mm |
Dielectric: | PTFE |
Jacket: | FEP |
Maximum frequency: | 6 GHz |
Non-magnetic : | No |
Order code: | LLF195 |
---|---|
![]() |

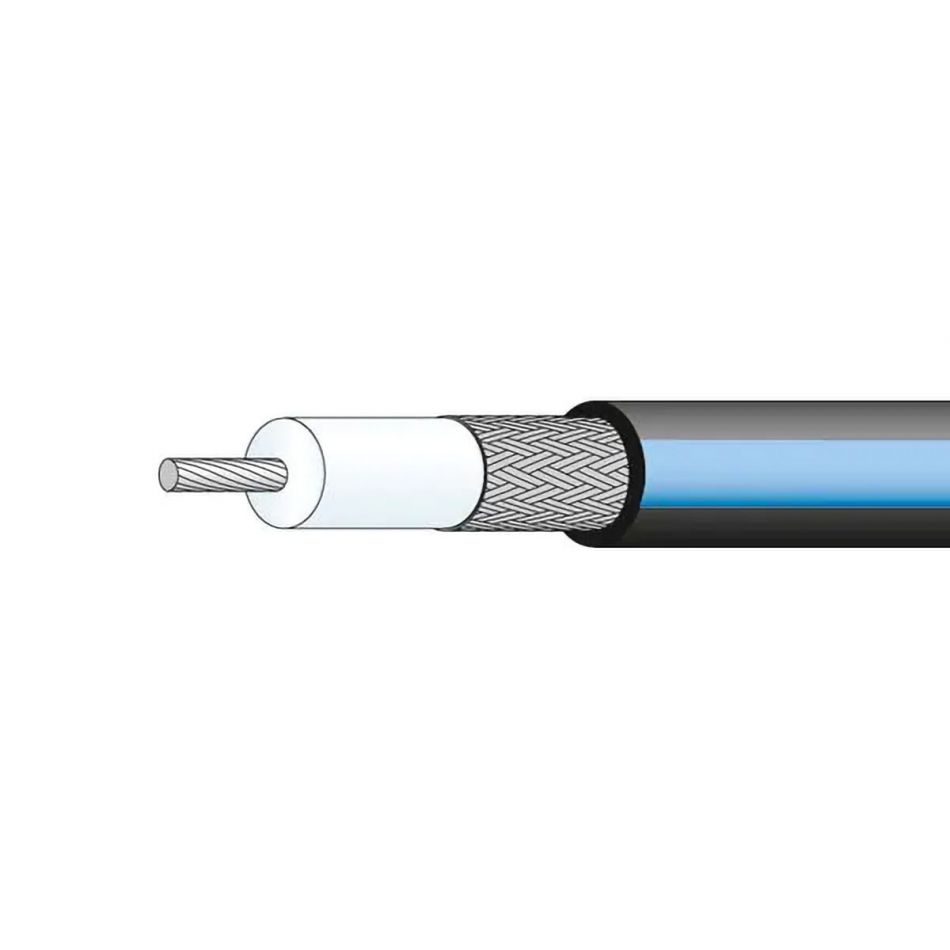

Foam PE low loss coaxial cable QAXIAL LLF195 |
Conditions: | N (The product is brand new) |
Application: | low loss |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 5 mm |
Dielectric: | foam PE |
Jacket: | PE |
Maximum frequency: | 6 GHz |
Non-magnetic : | No |
Order code: | LLF240 |
---|---|
![]() |
Foam PE low loss coaxial cable QAXIAL LLF240 |
Conditions: | N (The product is brand new) |
Application: | low loss |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 6.1 mm |
Dielectric: | foam PE |
Jacket: | PVC |
Maximum frequency: | 6 GHz |
Non-magnetic : | No |
Order code: | LLF400 |
---|---|
![]() |

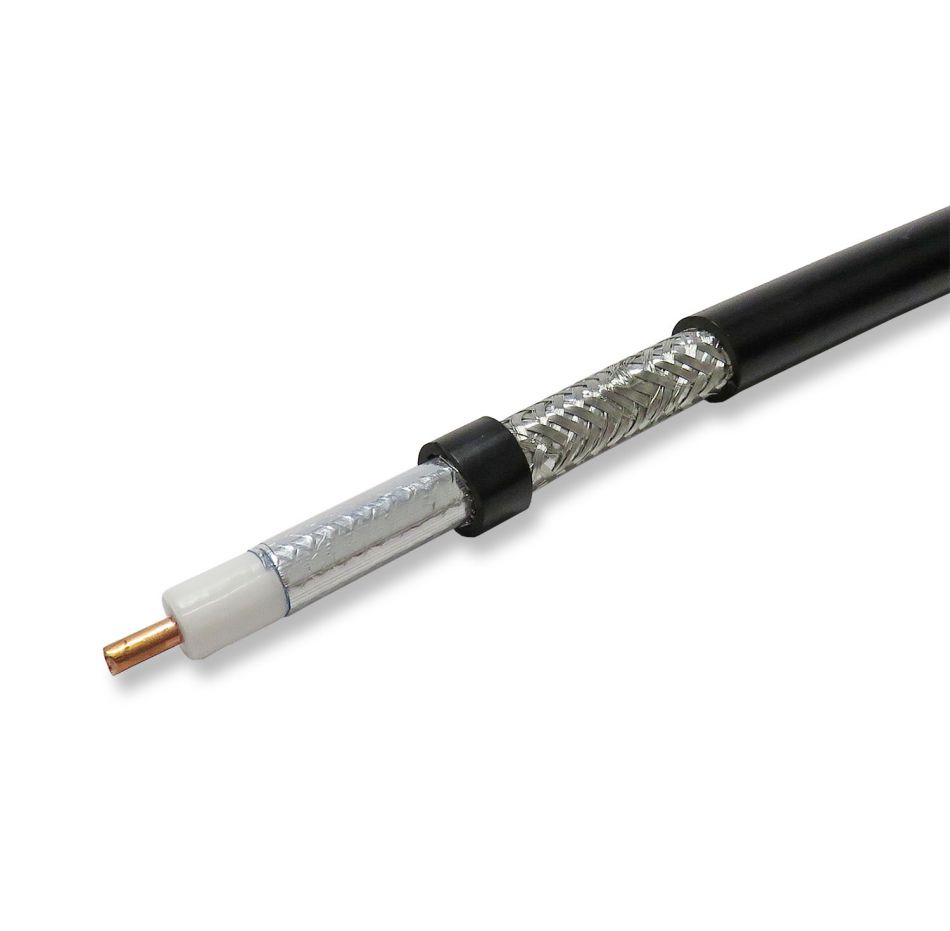

Foam PE low loss coaxial cable QAXIAL LLF400-CCA |
Conditions: | N (The product is brand new) |
Application: | low loss |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 10.3 mm |
Dielectric: | foam PE |
Jacket: | PVC |
Maximum frequency: | 6 GHz |
Non-magnetic : | No |
Order code: | MF141 |
---|---|
![]() |

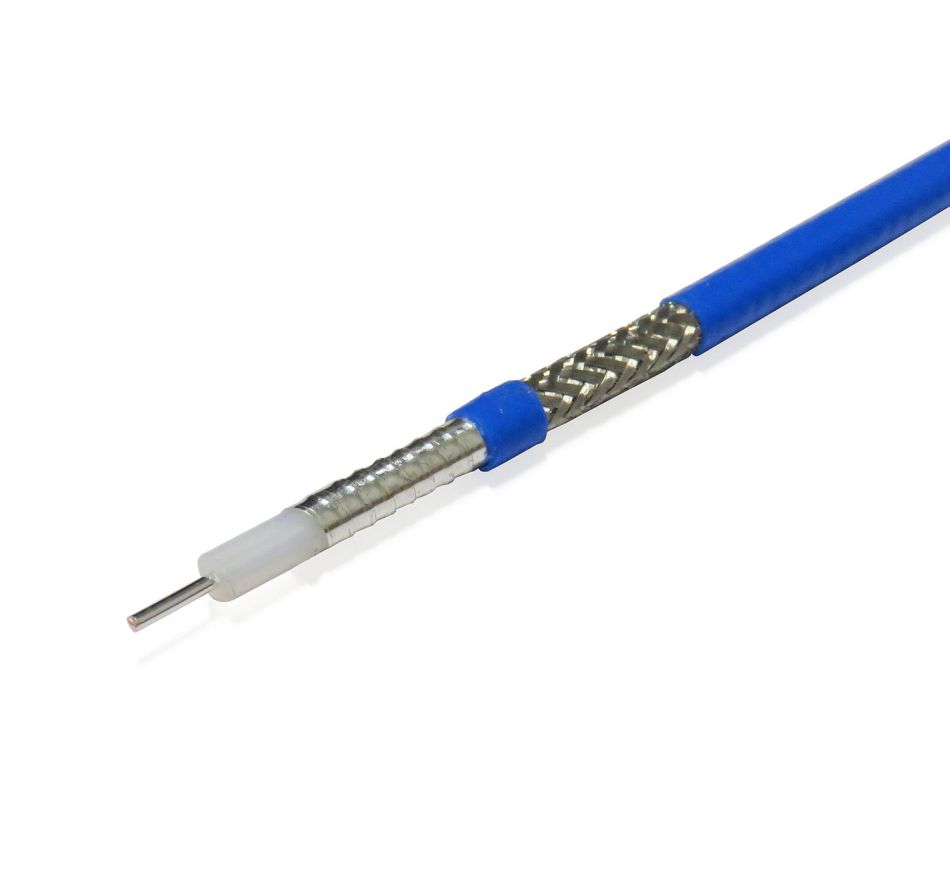

Microwave flexible non magnetic coaxial cable Huber+Suhner MULTIFLEX_141 |
Conditions: | N (The product is brand new) |
Application: | high temperature / high power, microwave, test equipment |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 4.14 mm |
Dielectric: | PTFE |
Jacket: | FEP |
Maximum frequency: | 33 GHz |
Non-magnetic : | Yes |
Order code: | MF86 |
---|---|
![]() |

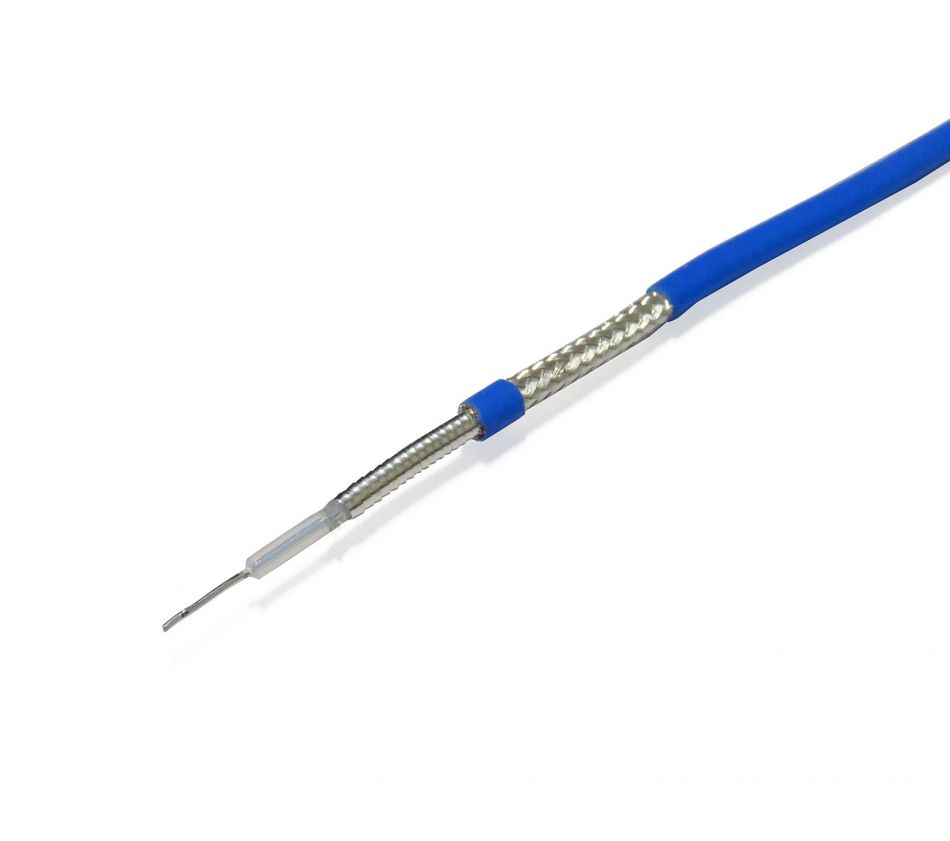

Microwave flexible non magnetic coaxial cable Huber+Suhner MULTIFLEX_86 |
Conditions: | N (The product is brand new) |
Application: | high temperature / high power, microwave, test equipment |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 2.65 mm |
Dielectric: | PTFE |
Jacket: | FEP |
Maximum frequency: | 40 GHz |
Non-magnetic : | Yes |
Order code: | PAN6425 |
---|---|
![]() |
Flexible Kapton coaxial cable Nexans Filotex PAN 6425 |
Conditions: | N (The product is brand new) |
Application: | high temperature |
Flexibility: | Flexible |
Impedance: | 15 Ohm |
External diameter: | 2.1 mm |
Dielectric: | Kapton |
Jacket: | FEP |
Maximum frequency: | 1 GHz |
Non-magnetic : | Yes |
Order code: | RG115 |
---|---|
![]() |
Flexible coaxial cable for high power (20m reel) Times Microwave Systems RG115/51513 |
Conditions: | N (The product is brand new) |
Application: | high temperature / high power |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 10.3 mm |
Dielectric: | PTFE |
Jacket: | Impregnated Fiberglass Braid |
Maximum frequency: | 12.4 GHz |
Non-magnetic : | Yes |
Order code: | RG141-35 |
---|---|
![]() |
Non-magnetic flexible coaxial cable QAXIAL RG141-35 |
Conditions: | N (The product is brand new) |
Application: | special applications |
Flexibility: | Flexible |
Impedance: | 35 Ohm |
External diameter: | 4.25 mm |
Dielectric: | PTFE |
Jacket: | FEP |
Maximum frequency: | 6 GHz |
Non-magnetic : | Yes |
Order code: | RG142Q |
---|---|
![]() |
Flexible teflon coaxial cable with silver plated double shield QAXIAL RG142B/U |
Conditions: | N (The product is brand new) |
Application: | high temperature / high power |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 4.95 mm |
Dielectric: | PTFE |
Jacket: | FEP |
Maximum frequency: | 6 GHz |
Non-magnetic : | No |
Order code: | RG178 |
---|---|
![]() |
Flexible teflon coaxial cable Vima RG178B/U |
Conditions: | N (The product is brand new) |
Application: | high temperature / high power |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 1.9 mm |
Dielectric: | PTFE |
Jacket: | FEP |
Maximum frequency: | 3 GHz |
Non-magnetic : | No |
Order code: | RG178Q |
---|---|
![]() |
Flexible teflon coaxial cable QAXIAL RG178B/U |
Conditions: | N (The product is brand new) |
Application: | high temperature, micro coax |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 1.8 mm |
Dielectric: | PTFE |
Jacket: | FEP |
Maximum frequency: | 3 GHz |
Non-magnetic : | Yes |
Order code: | RG179BU |
---|---|
![]() |
Flexible teflon coaxial cable QAXIAL RG179B/U |
Conditions: | N (The product is brand new) |
Application: | high temperature / high power, video |
Flexibility: | Flexible |
Impedance: | 75 Ohm |
External diameter: | 2.52 mm |
Dielectric: | PTFE |
Jacket: | FEP |
Maximum frequency: | 3 GHz |
Non-magnetic : | Yes |
Order code: | RG180 |
---|---|
![]() |
Flexible teflon coaxial cable QAXIAL RG180B/U |
Conditions: | N (The product is brand new) |
Application: | special applications |
Flexibility: | Flexible |
Impedance: | 95 Ohm |
External diameter: | 3.58 mm |
Dielectric: | PTFE |
Jacket: | FEP |
Maximum frequency: | 3 GHz |
Non-magnetic : | No |
Order code: | RG213 |
---|---|
![]() |
RG213/U coaxial cable QAXIAL RG213/U |
Conditions: | N (The product is brand new) |
Application: | general purpose |
Flexibility: | Flexible |
Impedance: | 50 Ohm |
External diameter: | 10.3 mm |
Dielectric: | PE |
Jacket: | PVC |
Maximum frequency: | 1 GHz |
Non-magnetic : | Yes |
