Power amplifier modules

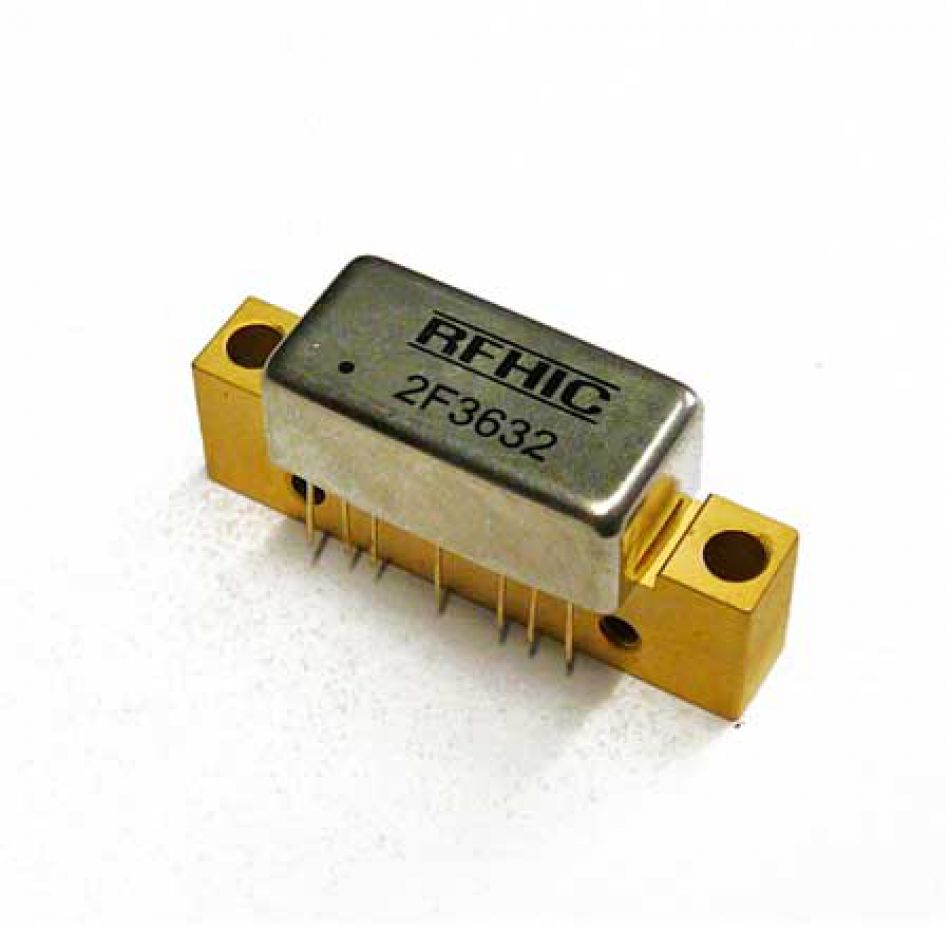

Wide band power amplifier module, 45 - 870 ...

Order code:	2F3632
	Wide band power amplifier module, 45 - 870 MHz RFHIC 2F3632
Minimum frequency:	45 MHz
Maximum frequency:	870 MHz
Supply voltage:	24 V
Current:	220 mA
Output power:	300 mW
Mode of operation:	AM/FM/SSB/TV

Go to product page 2F3632

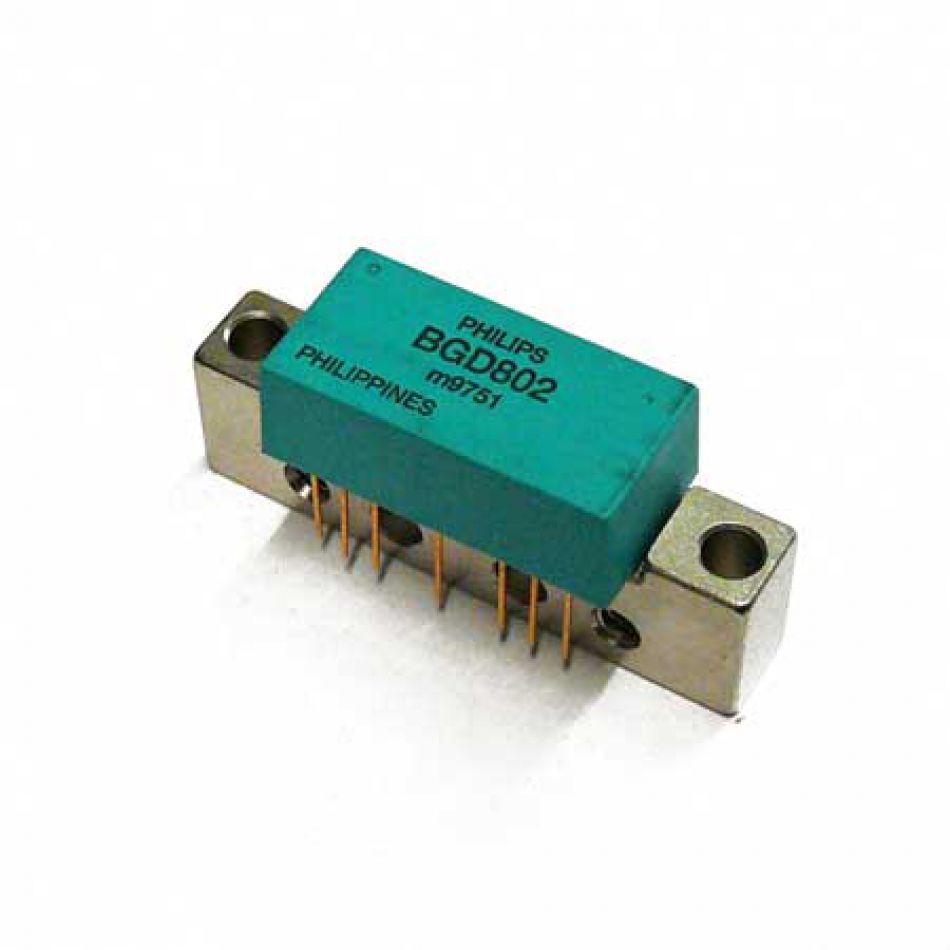

Wide band power amplifier module, 40 - 860 ...

Order code:	BGD802
	Wide band power amplifier module, 40 - 860 MHz Philips BGD802
Minimum frequency:	40 MHz
Maximum frequency:	860 MHz
Supply voltage:	24 V
Current:	410 mA
Output power:	1.3 W
Mode of operation:	AM/FM/SSB/TV

Go to product page BGD802

Wide band power amplifier module, 40 - 900 ...

Order code:	BGD904
	Wide band power amplifier module, 40 - 900 MHz Philips BGD904
Minimum frequency:	40 MHz
Maximum frequency:	900 MHz
Supply voltage:	24 V
Current:	435 mA
Output power:	1.3 W
Mode of operation:	AM/FM/SSB/TV

Go to product page BGD904

Wide band power amplifier module, 40 - 1000 ...

Order code:	BGY1085A
	Wide band power amplifier module, 40 - 1000 MHz Philips BGY1085A
Minimum frequency:	40 MHz
Maximum frequency:	1000 MHz
Supply voltage:	24 V
Current:	240 mA
Output power:	650 mW
Mode of operation:	AM/FM/SSB/TV

Go to product page BGY1085A

VHF power amplifier module

Order code:	BGY136
	VHF power amplifier module Philips BGY136
Minimum frequency:	144 MHz
Maximum frequency:	174 MHz
Supply voltage:	12.5 V
Input power:	150 mW
Output power:	20 W
Mode of operation:	CW/FM

Go to product page BGY136

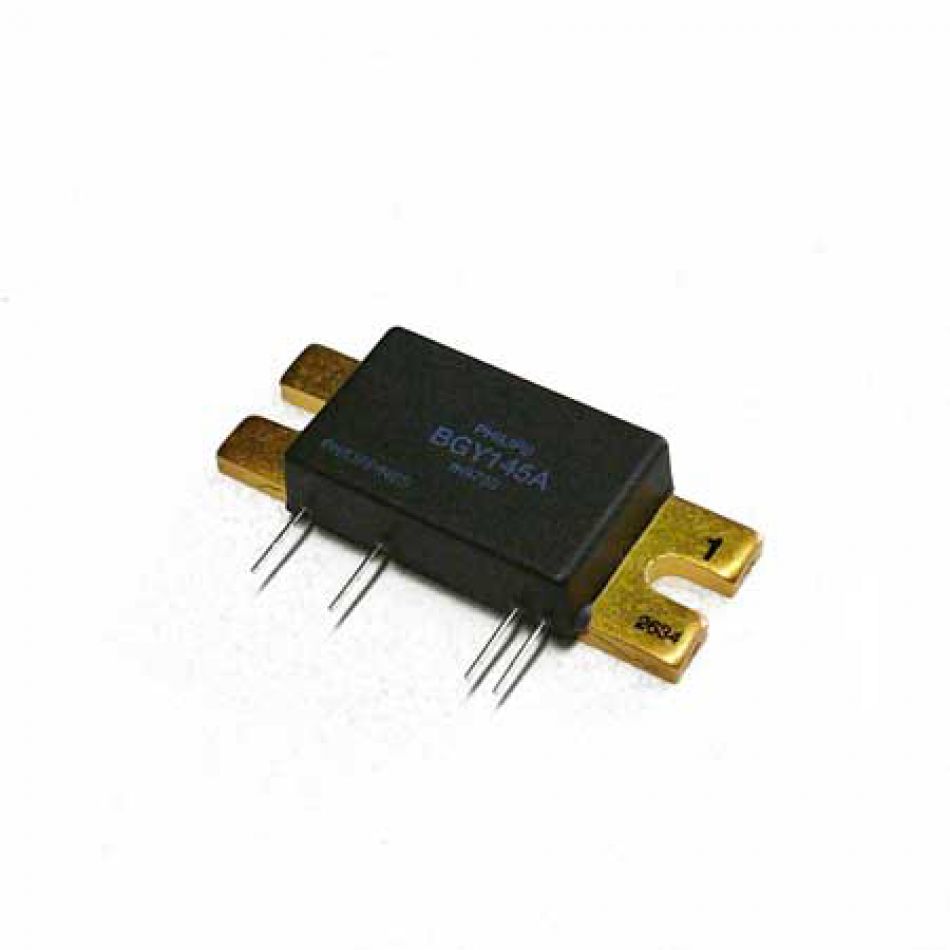

VHF power amplifier module

Order code:	BGY145A
	VHF power amplifier module Philips BGY145A
Minimum frequency:	68 MHz
Maximum frequency:	88 MHz
Supply voltage:	12.5 V
Input power:	300 mW
Output power:	29 W

Go to product page BGY145A

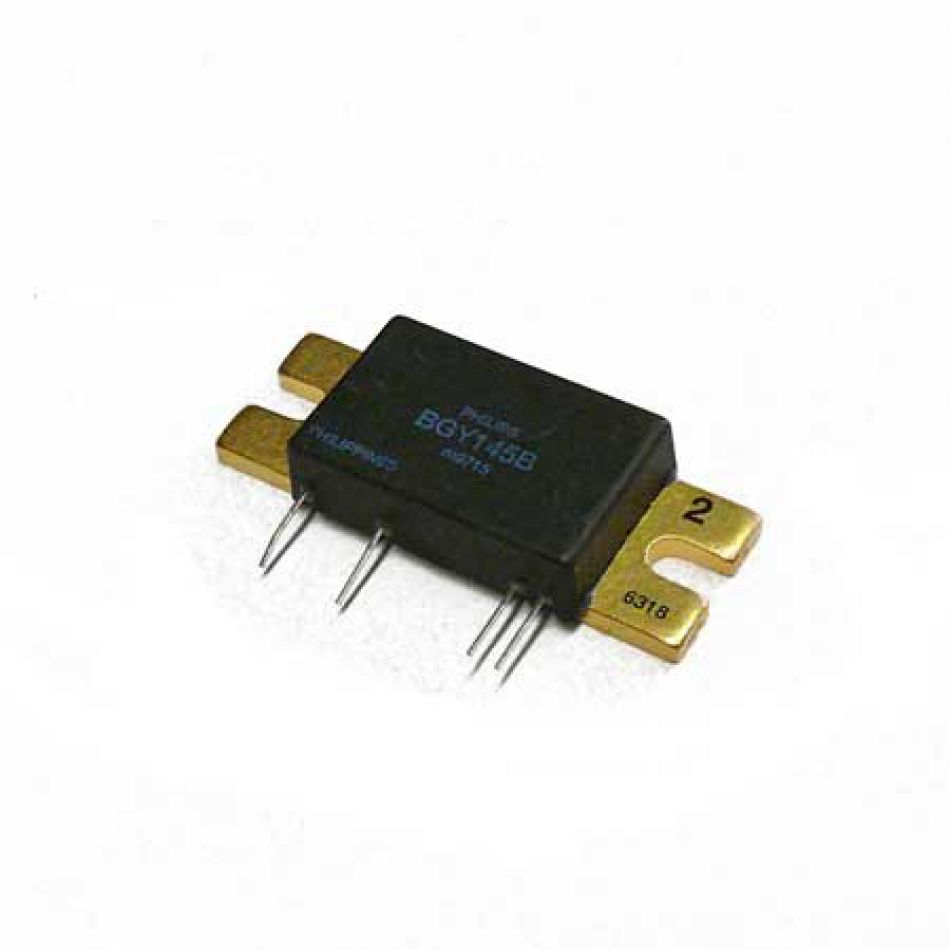

VHF power amplifier module

Order code:	BGY145B
	VHF power amplifier module Philips BGY145B
Minimum frequency:	146 MHz
Maximum frequency:	174 MHz
Supply voltage:	12.5 V
Input power:	300 mW
Output power:	28 W

Go to product page BGY145B

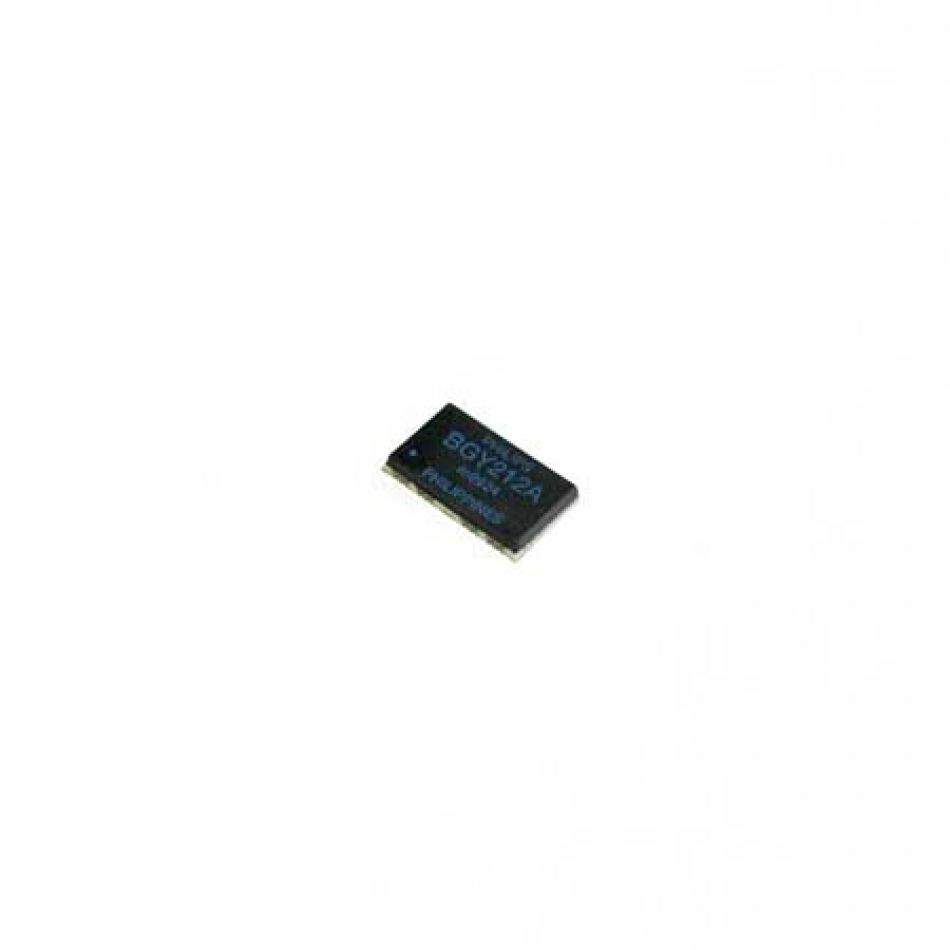

UHF power amplifier module

Order code:	BGY212A
	UHF power amplifier module Philips BGY212A
Minimum frequency:	1710 MHz
Maximum frequency:	1785 MHz
Supply voltage:	3.5 V
Input power:	1 mW
Output power:	2 W
Mode of operation:	pulsed

Go to product page BGY212A

UHF power amplifier module

Order code:	BGY240S
	UHF power amplifier module Philips BGY240S
Minimum frequency:	890 MHz
Maximum frequency:	915 MHz
Supply voltage:	3.5 V
Input power:	1 mW
Output power:	3 W
Mode of operation:	pulsed

Go to product page BGY240S

UHF power amplifier module

Order code:	BGY241
	UHF power amplifier module Philips BGY241
Minimum frequency:	880 MHz
Maximum frequency:	915 MHz
Supply voltage:	3.5 V
Input power:	0.12 mW
Output power:	3.5 W
Mode of operation:	pulsed

Go to product page BGY241

UHF power amplifier module

Order code:	BGY32D
	UHF power amplifier module Philips BGY32D
Minimum frequency:	420 MHz
Maximum frequency:	470 MHz
Supply voltage:	12.5 V
Input power:	50 mW
Output power:	20 W

Go to product page BGY32D

VHF power amplifier module

Order code:	BGY35
	VHF power amplifier module Philips BGY35
Minimum frequency:	132 MHz
Maximum frequency:	156 MHz
Supply voltage:	12.5 V
Input power:	150 mW
Output power:	20 W
Mode of operation:	CW/FM

Go to product page BGY35

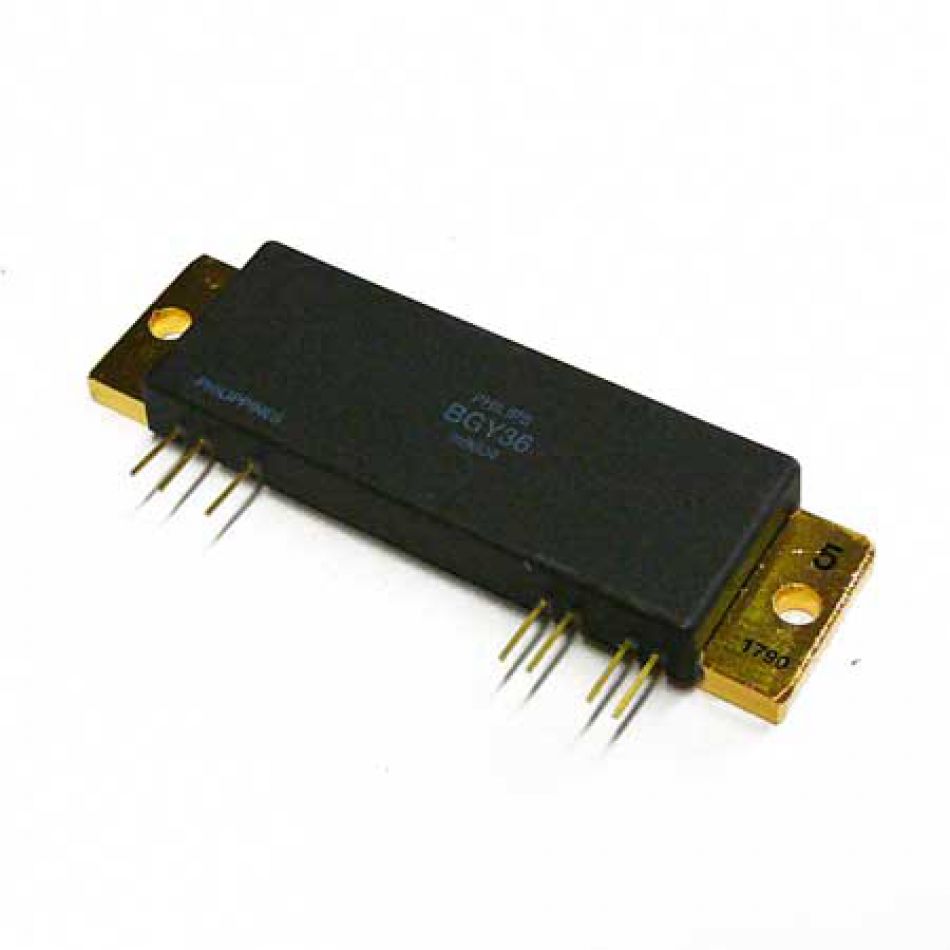

VHF power amplifier module

Order code:	BGY36
	VHF power amplifier module Philips BGY36
Minimum frequency:	144 MHz
Maximum frequency:	174 MHz
Supply voltage:	12.5 V
Input power:	150 mW
Output power:	20 W
Mode of operation:	CW/FM

Go to product page BGY36

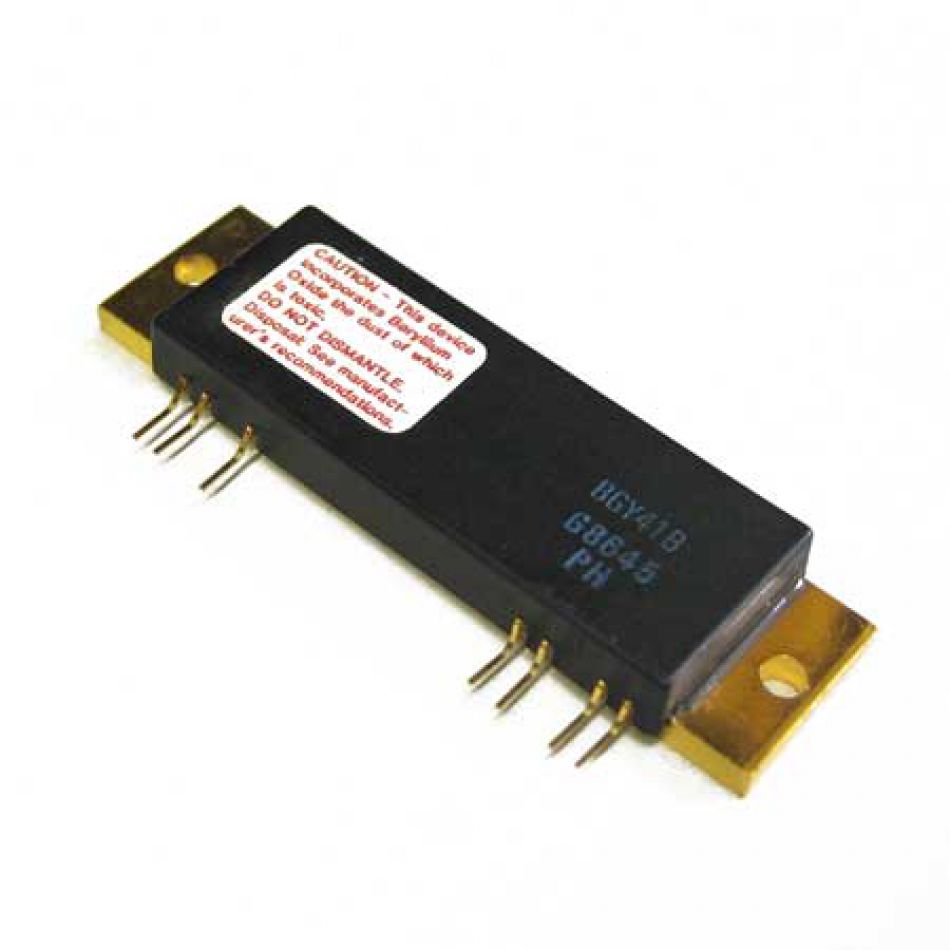

UHF power amplifier module

Order code:	BGY41B
	UHF power amplifier module Philips BGY41B
Minimum frequency:	440 MHz
Maximum frequency:	470 MHz
Supply voltage:	12.5 V
Input power:	150 mW
Output power:	15 W

Go to product page BGY41B

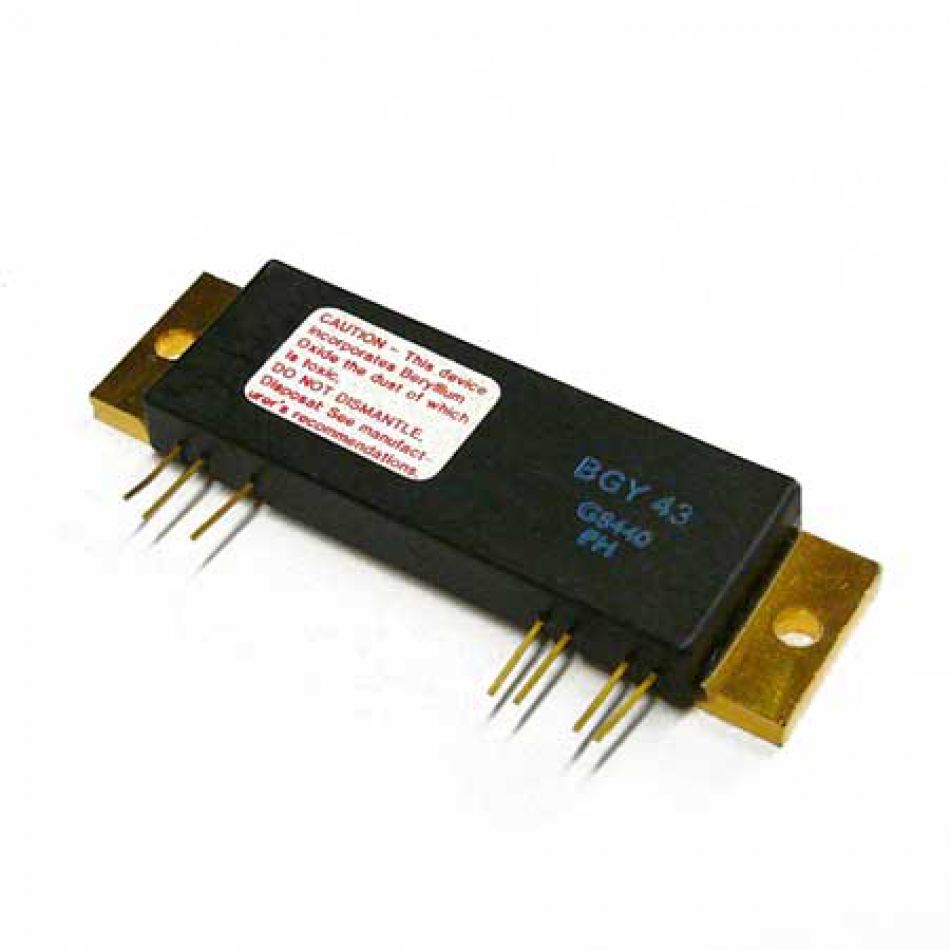

VHF power amplifier module

Order code:	BGY43
	VHF power amplifier module Philips BGY43
Minimum frequency:	148 MHz
Maximum frequency:	174 MHz
Supply voltage:	12.5 V
Input power:	150 mW
Output power:	13 W
Mode of operation:	CW/FM

Go to product page BGY43
