LMX2119M
Brand: National Semiconductor
Manufacturer code: LMX2119M
Order code: LMX2119M

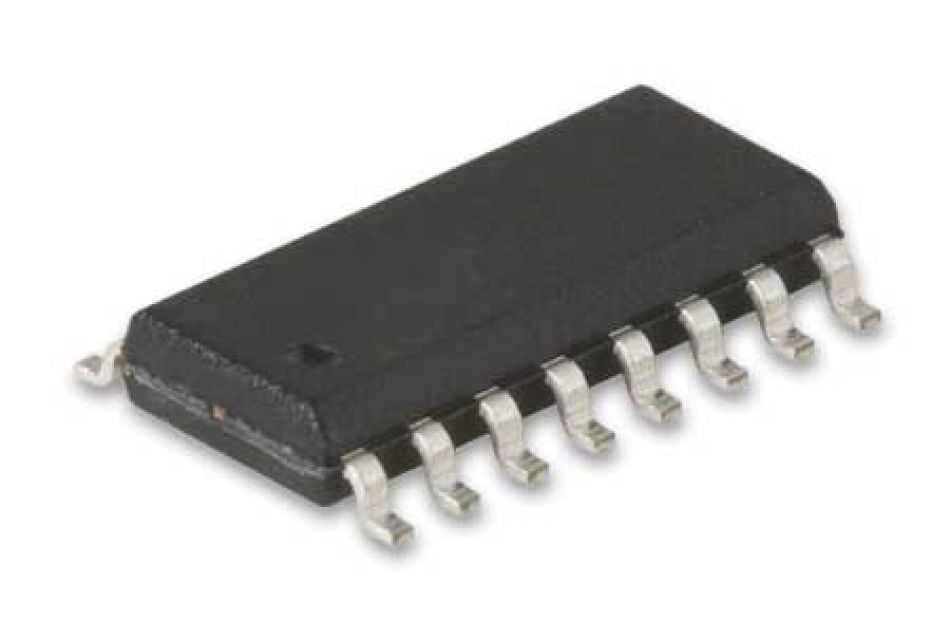

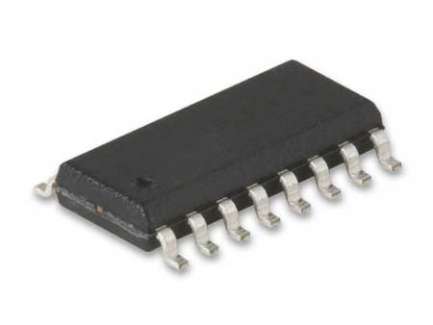

Class-A MMIC amplifier, SOIC-16

Product conditions: N-

Class-A MMIC amplifier, SOIC-16

An important feature of this MMIC is to be provided of the input and output dc-block capacitors

FEATURES:

  • Single +3V supply operation
  • Class A bias; >30% power added efficiency
  • 24.5dB power gain; +26.5dBm output power
  • 50Ω input/output impedance
  • 350 mA current consumption at +3.6V

APLICATIONS:

  • Digital European Cordless Telecommunications (DECT)
  • Portable wireless communications (PCS/PCN, cordless)
  • Wireless local area networks (WLANs)
  • Other wireless communications systems
  • Suitable also for SSB, DCS e GSM
  • 1700 MHz
  • 2000 MHz
  • 3.6 V
  • 350 mA
  • 27.5 dBm
  • SOIC-16
  • SMD
  Title Dimension
Datasheet 102.9 kB
  • 85423390
  • 1.00 g
  • No
  • Not available
Do login to add your comment
Availability
Stock
(immediate dispatch)
2144 pcs
Cart
Minimum: 1 pc - Multiple: 1 pc
Unit Price:
$3.24
/ pc

Ext. price:
$3.24
(VAT tax not included)
Prices
Q.ty Unit Price Ext. price
1+ $3.24 $3.24
10+ $2.74 $27.44
25+ $2.44 $61.01
50+ $2.23 $111.71
100+ $2.04 $203.90
250+ $1.83 $458.24
500+ $1.64 $818.87
1000+ $1.48 $1,475.06
(VAT tax not included)
