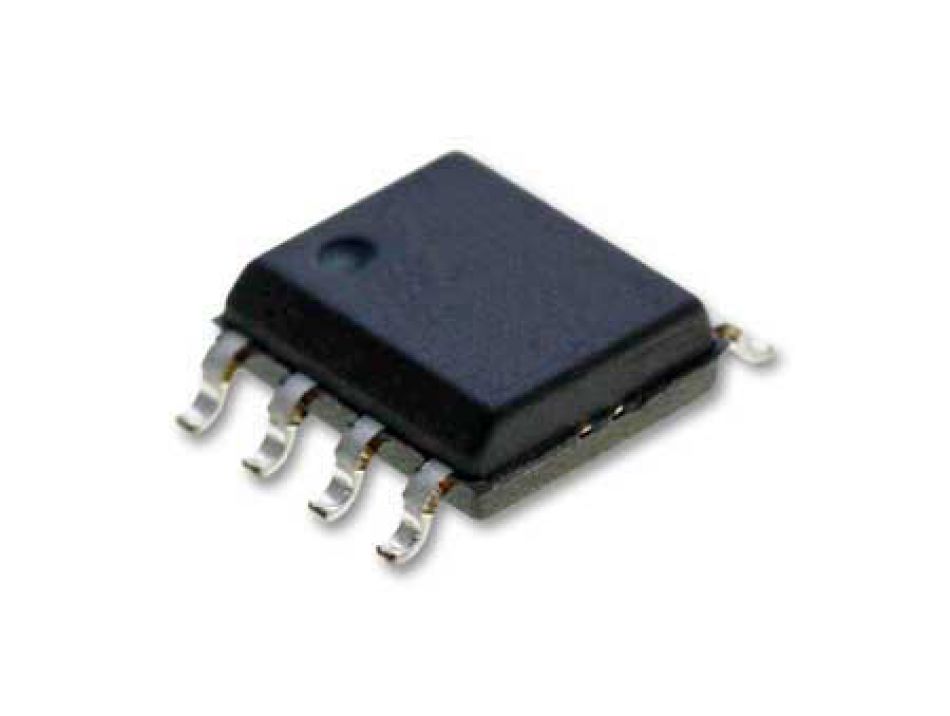

Variable gain Si MMIC differential amplifier, SO-8

Name: Variable gain Si MMIC differential amplifier, SO-8
Brand: Hewlett-Packard
SKU: IVA-05208
Price: 5.81 EUR
Availability: InStock

Product conditions: N-

$6.39

/ pc

(VAT tax not included)

Minimum: 1 pc - Multiple: 1 pc

Availability
Stock (immediate dispatch)	192 pcs

Volume discounts
Q.ty	Unit Price	Ext. price
1+	$6.39	$6.39
5+	$5.90	$29.52
10+	$5.42	$54.21
25+	$4.84	$120.96
50+	$4.45	$222.67
(VAT tax not included)

Compliance
Country of origin	MY
EU Tariff Code	85423390
Weight	1.00 g
RoHS	No
REACH	Not available

Min. frequency:
0 Hz
Max. frequency:
1500 MHz
Operating voltage:
5 V
Operating current:
35 mA
Dissipated power:
600 mW
Gain (max.):
30 dB
Output power (max.):
-3 dBm
Noise figure (min.):
6 dB
Package:
SO-8
Mounting:
SMD

Variable gain Si MMIC differential amplifier, SO-8

Differential amplifier with 30dB gain control range, TX data transfer rate up to 2 Gbit/s, constant group delay

GAIN:
- 31 dB @ 500 MHz
- 30 dB @ 1 GHz
- 24 dB @ 2 GHz

Order code: IVA-05208

Category: MMIC, RFIC and hybrid amplifiers

	Title	Dimension
	Datasheet	65.3 kB
