Amplifiers

Amplifier, 10.1 - 10.6 GHz, 200mW, SMA female

Order code:	AMP-10G3
	Amplifier, 10.1 - 10.6 GHz, 200mW, SMA female Fresnel C00566
Min. frequency :	10.1 GHz
Max. frequency:	10.6 GHz
Gain:	6 dB
Power output (P1dB):	23 dBm
Supply voltage min. or nominal:	10 V
Type :	connector
Connectors :	SMA female

Go to product page AMP-10G3

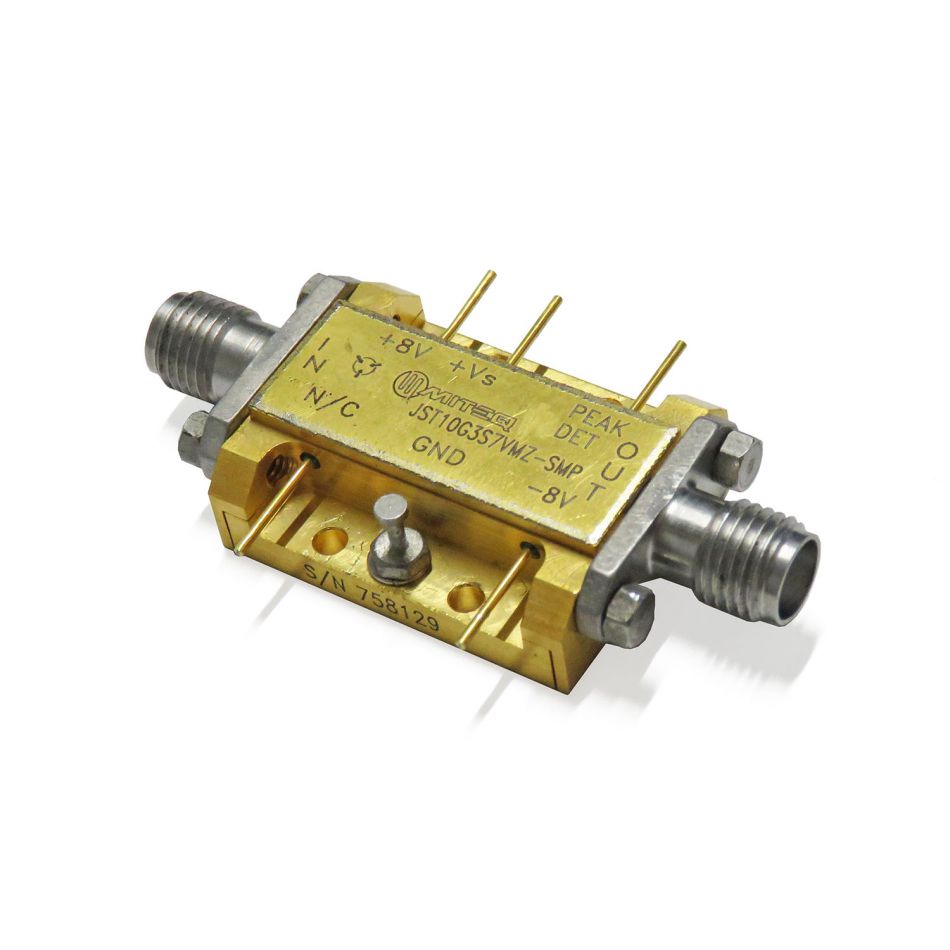

Ultra wideband amplifier, 9 kHz - 15 GHz, SMA female

Order code:	AWB-15
	Ultra wideband amplifier, 9 kHz - 15 GHz, SMA female MITEQ JST10G3S7VMZ-SMP
Conditions:	N (The product is brand new)
Min. frequency :	9 kHz
Max. frequency:	15 GHz
Gain:	24 dB
Power output (P1dB):	17 dBm
Supply voltage min. or nominal:	11 V
Type :	connector
Connectors :	SMA female

Go to product page AWB-15

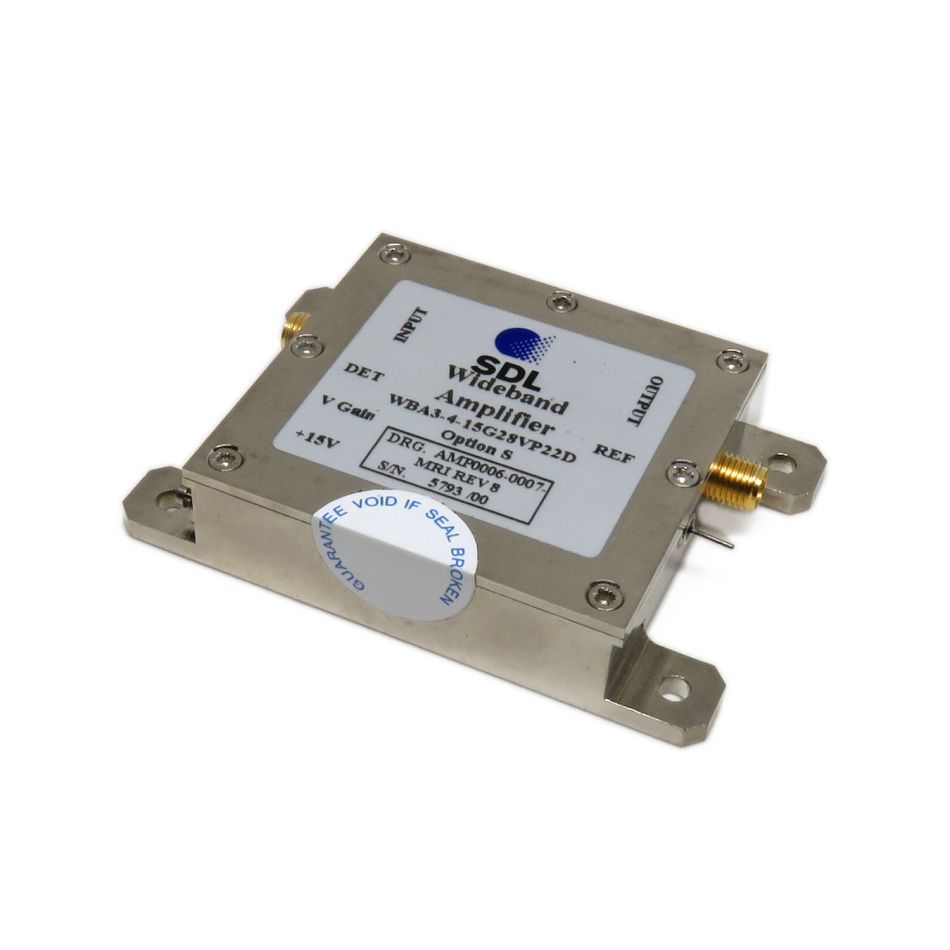

Ultra wideband amplifier, 20 kHz - 18 GHz, SMA female

Order code:	AWB-18A
	Ultra wideband amplifier, 20 kHz - 18 GHz, SMA female SDL WBA3-4-15G28VP22D
Conditions:	N- (The product is brand new but it comes from an old production)
Min. frequency :	20 kHz
Max. frequency:	18 GHz
Gain:	23 dB
Power output (P1dB):	21.5 dBm
Supply voltage min. or nominal:	14 V
Supply voltage max.:	18 V
Type :	connector
Connectors :	SMA female

Go to product page AWB-18A

Ultra wideband amplifier, 65 kHz - 15 GHz, 14 dBm, SMA female

Order code:	AWB-5828
	Ultra wideband amplifier, 65 kHz - 15 GHz, 14 dBm, SMA female Picosecond 5828-108
Conditions:	N- (The product is brand new but it comes from an old production)
Min. frequency :	65 kHz
Max. frequency:	15 GHz
Gain:	10 dB
Power output (P1dB):	14 dBm
Supply voltage min. or nominal:	12 V
Type :	connector
Connectors :	SMA female

Go to product page AWB-5828

21.4 MHz IF amplifier module for FM receivers

Order code:	IF-21.4
	21.4 MHz IF amplifier module for FM receivers
Conditions:	N (The product is brand new)
Min. frequency :	21.4 MHz
Max. frequency:	21.4 MHz
Supply voltage min. or nominal:	12 V
Type :	plug-in
Connectors :	pin

Go to product page IF-21.4

Amplifier, 500 - 2500 MHz, SMA female

Order code:	ZFL-2500
	Amplifier, 500 - 2500 MHz, SMA female Mini-Circuits ZFL-2500
Conditions:	N (The product is brand new)
Min. frequency :	500 MHz
Max. frequency:	2500 MHz
Gain:	28 dB
Power output (P1dB):	15 dBm
Supply voltage min. or nominal:	5 V
Type :	connector
Connectors :	SMA female

Go to product page ZFL-2500

10 GHz amplifier + 24 GHz doubler

Order code:	SU-02
	10 GHz amplifier + 24 GHz doubler
Conditions:	N- (The product is brand new but it comes from an old production)

Go to product page SU-02
