Standard trimmers

Variable capacitor / trimmer, 2.5 - 6 pF, 160V

Order code:	CVC-01
	Variable capacitor / trimmer, 2.5 - 6 pF, 160V Stettner 300.427.112
Conditions:	N (The product is brand new)
Min. capacitance:	2.5 pF
Max. capacitance:	6 pF
Rated voltage:	160 V
Dielectric:	ceramic
Temperature range (°C):	-25 / +85
Temperature coefficient (ppm/°C):	0 ±100
Adjustment:	top
Orientation:	vertical
Pin number:	3
Mounting:	thru-hole
Size:	∅ 7 mm

Go to product page CVC-01

Variable capacitor / trimmer, 3 - 10 pF, 160V

Order code:	CVC-02
	Variable capacitor / trimmer, 3 - 10 pF, 160V Stettner 300.427.201
Conditions:	N (The product is brand new)
Min. capacitance:	3 pF
Max. capacitance:	10 pF
Rated voltage:	160 V
Dielectric:	ceramic
Temperature range (°C):	-25 / +85
Temperature coefficient (ppm/°C):	-25 ±100
Adjustment:	top
Orientation:	vertical
Pin number:	3
Mounting:	thru-hole
Size:	∅ 7 mm

Go to product page CVC-02

Variable capacitor / trimmer, 3.5 - 13 pF, 160V

Order code:	CVC-05
	Variable capacitor / trimmer, 3.5 - 13 pF, 160V Stettner 300.448.411
Conditions:	N (The product is brand new)
Min. capacitance:	3.5 pF
Max. capacitance:	13 pF
Rated voltage:	160 V
Dielectric:	ceramic
Temperature range (°C):	-25 / +85
Temperature coefficient (ppm/°C):	-400 ±200
Adjustment:	side
Orientation:	horizontal
Pin number:	3
Mounting:	thru-hole
Size:	∅ 7 mm

Go to product page CVC-05

Variable capacitor / trimmer 4 - 20 pF, 250V

Order code:	CVC-06
	Variable capacitor / trimmer 4 - 20 pF, 250V Stettner 300.330.405
Conditions:	N (The product is brand new)
Min. capacitance:	4 pF
Max. capacitance:	20 pF
Rated voltage:	250 V
Dielectric:	ceramic
Temperature coefficient (ppm/°C):	-470 ±60
Adjustment:	top
Orientation:	vertical
Pin number:	3
Mounting:	thru-hole
Size:	∅ 10 mm

Go to product page CVC-06

Variable capacitor / trimmer, 2 - 6 pF, 250V

Order code:	CVC-10
	Variable capacitor / trimmer, 2 - 6 pF, 250V Stettner 300.321.100
Conditions:	N (The product is brand new)
Min. capacitance:	2 pF
Max. capacitance:	6 pF
Rated voltage:	250 V
Dielectric:	ceramic
Temperature coefficient (ppm/°C):	0 ±100
Adjustment:	side
Orientation:	horizontal
Pin number:	3
Mounting:	thru-hole
Size:	∅ 10 mm

Go to product page CVC-10

Variable capacitor / trimmer, 3.5 - 10 pF, 63V

Order code:	CVC-14
	Variable capacitor / trimmer, 3.5 - 10 pF, 63V Stettner 300.504.104
Conditions:	N (The product is brand new)
Min. capacitance:	3.5 pF
Max. capacitance:	10 pF
Rated voltage:	63 V
Dielectric:	ceramic
Temperature range (°C):	-25 / +85
Temperature coefficient (ppm/°C):	50 ±175
Adjustment:	top
Orientation:	vertical
Pin number:	2
Mounting:	thru-hole
Size:	∅ 5.5 mm

Go to product page CVC-14

Variable capacitor / trimmer, 1.8 - 10 pF, 100V

Order code:	CVC-16
	Variable capacitor / trimmer, 1.8 - 10 pF, 100V Mepco-Electra Inc. 2805F2R510DA01000
Conditions:	N (The product is brand new)
Min. capacitance:	1.8 pF
Max. capacitance:	10 pF
Rated voltage:	100 V
Dielectric:	ceramic
Adjustment:	top
Orientation:	vertical
Pin number:	2
Mounting:	SMD
Size:	∅ 5 mm

Go to product page CVC-16

Variable capacitor / trimmer, 3 - 30 pF, 100V

Order code:	CVC-17
	Variable capacitor / trimmer, 3 - 30 pF, 100V Mepco-Electra Inc. 2805F3R520DA01000
Conditions:	N (The product is brand new)
Min. capacitance:	3 pF
Max. capacitance:	30 pF
Rated voltage:	100 V
Dielectric:	ceramic
Adjustment:	top
Orientation:	vertical
Pin number:	2
Mounting:	SMD
Size:	∅ 5 mm

Go to product page CVC-17

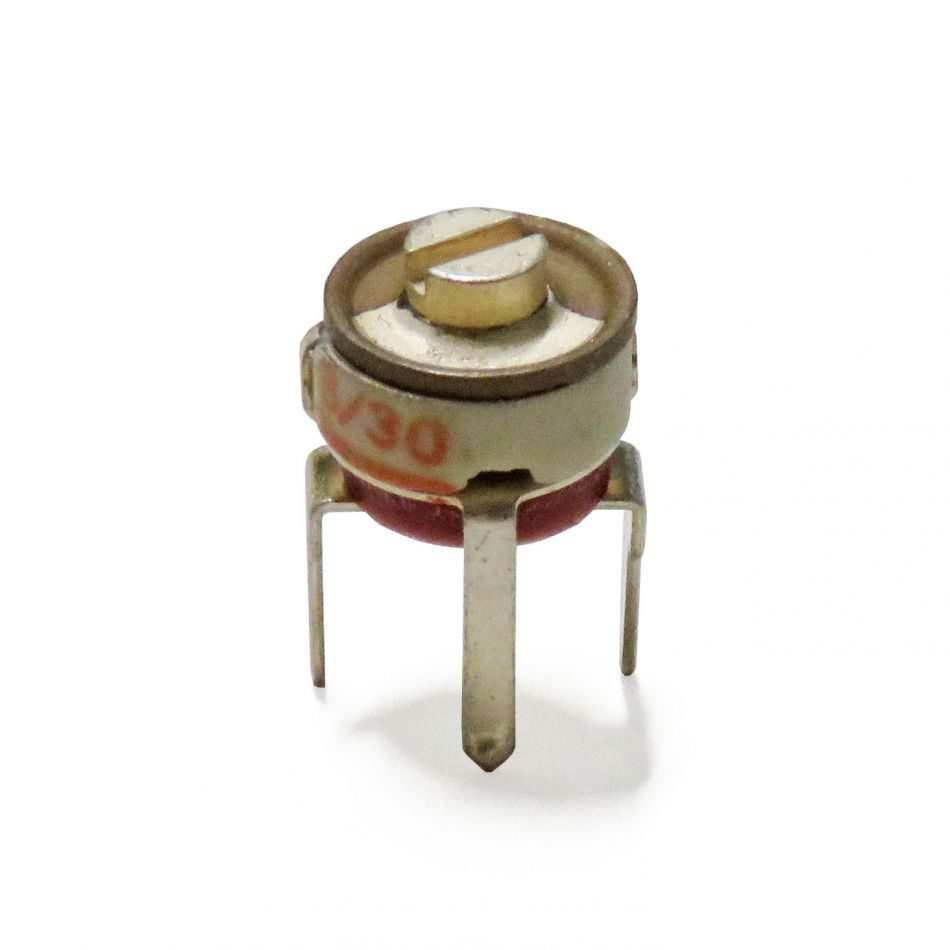

Variable capacitor / trimmer, 6 - 30 pF, 160V

Order code:	CVC-18
	Variable capacitor / trimmer, 6 - 30 pF, 160V Stettner 300.402.506
Conditions:	N- (The product is brand new but it comes from an old production)
Min. capacitance:	6 pF
Max. capacitance:	30 pF
Rated voltage:	160 V
Dielectric:	ceramic
Temperature range (°C):	-25 / +85
Temperature coefficient (ppm/°C):	-900 ±400
Adjustment:	top
Orientation:	vertical
Pin number:	3
Mounting:	thru-hole
Size:	∅ 7 mm

Go to product page CVC-18

Variable capacitor / trimmer, 1 - 3 pF, 63V

Order code:	CVC-20
	Variable capacitor / trimmer, 1 - 3 pF, 63V Stettner 300.504.121
Conditions:	N (The product is brand new)
Min. capacitance:	1 pF
Max. capacitance:	3 pF
Rated voltage:	63 V
Dielectric:	ceramic
Temperature range (°C):	-25 / +85
Temperature coefficient (ppm/°C):	25 ±100
Adjustment:	top
Orientation:	vertical
Pin number:	2
Mounting:	thru-hole
Size:	∅ 5.5 mm

Go to product page CVC-20

Variable capacitor / trimmer, 3 - 10 pF, 160V

Order code:	CVC-23
	Variable capacitor / trimmer, 3 - 10 pF, 160V Stettner 300.450.201
Conditions:	N (The product is brand new)
Min. capacitance:	3 pF
Max. capacitance:	10 pF
Rated voltage:	160 V
Dielectric:	ceramic
Temperature range (°C):	-25 / +85
Temperature coefficient (ppm/°C):	-25 ±100
Adjustment:	side
Orientation:	horizontal
Pin number:	3
Mounting:	thru-hole
Size:	∅ 7 mm

Go to product page CVC-23

Variable capacitor / trimmer, 1.5 - 5 pF, 25V

Order code:	CVC-24
	Variable capacitor / trimmer, 1.5 - 5 pF, 25V KYOCERA CTZ3E-05A-W5-PF
Conditions:	N (The product is brand new)
Min. capacitance:	1.5 pF
Max. capacitance:	5 pF
Rated voltage:	25 V
Dielectric:	ceramic
Temperature range (°C):	-40 / +85
Temperature coefficient (ppm/°C):	0 ±500
Adjustment:	top
Orientation:	vertical
Pin number:	2
Mounting:	SMD
Size:	4.5 x 3.2 x 1.8 mm

Go to product page CVC-24

Variable capacitor / trimmer, 2 - 6 pF, 100V

Order code:	CVC-25
	Variable capacitor / trimmer, 2 - 6 pF, 100V muRata TZBX4Z060BA110T02
Conditions:	N (The product is brand new)
Min. capacitance:	2 pF
Max. capacitance:	6 pF
Rated voltage:	100 V
Dielectric:	ceramic
Temperature range (°C):	-25 / +85
Temperature coefficient (ppm/°C):	0 ±200
Adjustment:	top
Orientation:	vertical
Pin number:	2
Mounting:	SMD
Size:	4 x 4.5 x 3 mm

Go to product page CVC-25

Variable capacitor / trimmer, 1.4 - 3 pF, 100V

Order code:	CVC-26
	Variable capacitor / trimmer, 1.4 - 3 pF, 100V muRata TZBX4Z030BA110T00
Conditions:	N (The product is brand new)
Min. capacitance:	1.4 pF
Max. capacitance:	3 pF
Rated voltage:	100 V
Dielectric:	ceramic
Temperature range (°C):	-25 / +85
Temperature coefficient (ppm/°C):	0 ±200
Adjustment:	top
Orientation:	vertical
Pin number:	2
Mounting:	SMD
Size:	4 x 4.5 x 3 mm

Go to product page CVC-26

Variable capacitor / trimmer, 4.5 - 20 pF, 160V

Order code:	CVC-27
	Variable capacitor / trimmer, 4.5 - 20 pF, 160V Stettner 300.427.502
Conditions:	N (The product is brand new)
Min. capacitance:	4.5 pF
Max. capacitance:	20 pF
Rated voltage:	160 V
Dielectric:	ceramic
Temperature range (°C):	-25 / +85
Temperature coefficient (ppm/°C):	-650 ±250
Adjustment:	top
Orientation:	vertical
Pin number:	3
Mounting:	thru-hole
Size:	∅ 7 mm

Go to product page CVC-27
