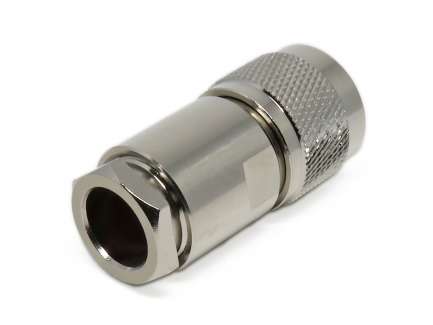

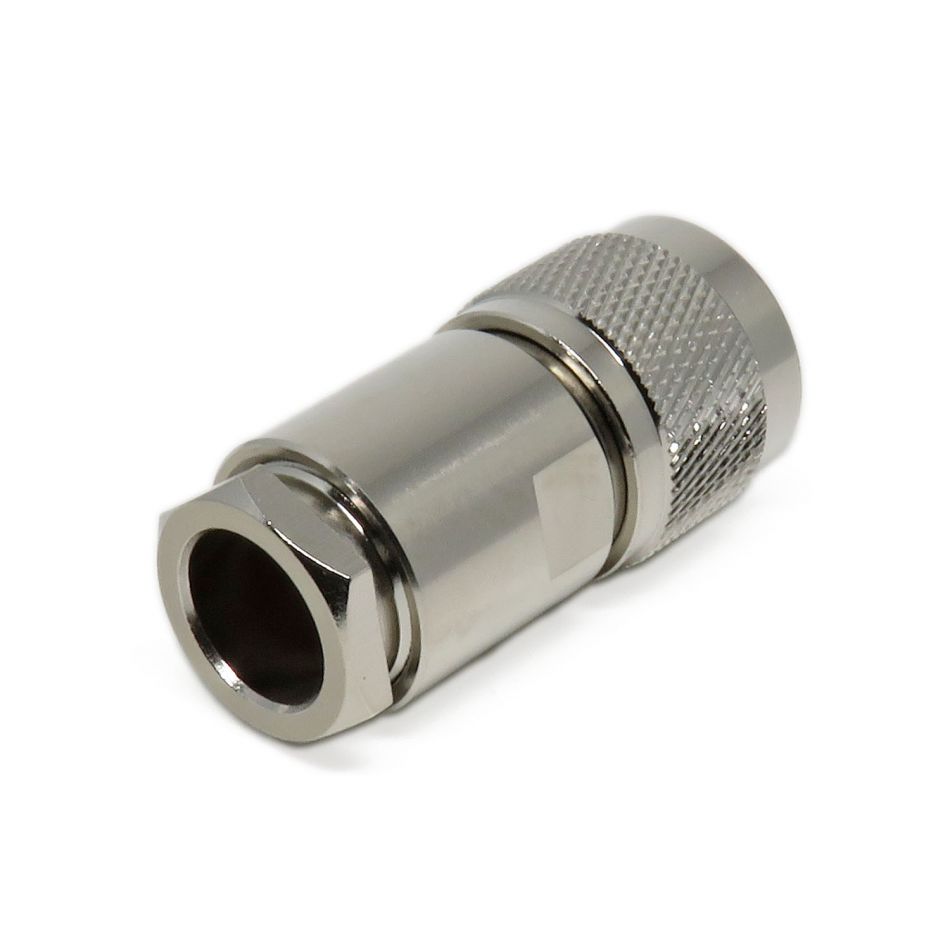

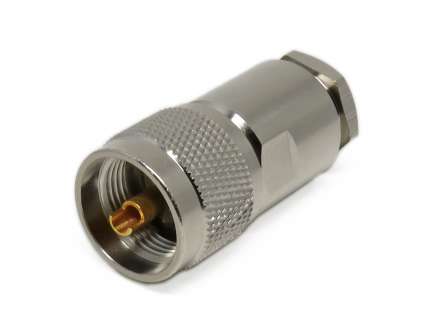

QAXIAL UHF02-07G-01 Clamp UHF male (PL259) coaxial connector for RG213 / RG214 / RG393

Clamp UHF male (PL259) coaxial connector for RG213 / RG214 / RG393

Name: Clamp UHF male (PL259) coaxial connector for RG213 / RG214 / RG393
Brand: QAXIAL
SKU: UHF-02
Price: 4.90 EUR
Availability: InStock

Order code: UHF-02Brand: QAXIALManufacturer code: UHF02-07G-01Category: UHF Connectors (PL-259 / SO-239)

Product conditions: N

Available in stock

233 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

€4,90 /pcs

€4,90

More info on offers

Prices

Q.ty Price each Extended price

1+ €4,90 €4,90

10+ €4,30 €43,00

25+ €4,10 €102,50

50+ €3,90 €195,00

Immediate availability

Dedicated technical support

Secure SSL payments

Specifications

Gender:
male
Maximum frequency:
300 MHz
Geometry:
straight
Mounting:
free hanging
Termination style:
cable - clamp
Coupling:
threaded
Cable type:
ENVIROFLEX_393
RG8
RG213
RG214
RG225
RG393
Insulator:
PTFE
Body material:
brass
Body finishing:
nickel

Datasheet

PDF · 405.0 kB

View

Compliance

Country of origin:
CN
EU Tariff Code:
85366930
Weight:
38.00 g
RoHS:
Yes
REACH:
SVHC not present

Order code:	RG214
	RG214/U Coaxial cable, MIL-C-17F QAXIAL RG214/U
Conditions:	N (The product is brand new)
Application:	general purpose, high power, high shielding
Flexibility:	Flexible
Impedance:	50 Ohm
External diameter:	10.8 mm
Dielectric:	PE
Jacket:	PVC
Maximum frequency:	6 GHz
Non-magnetic:	Yes

Order code:	RG213
	50 Ohm low-loss coaxial cable (MIL-C-17) QAXIAL RG213/U
Conditions:	N (The product is brand new)
Application:	general purpose, high power
Flexibility:	Flexible
Impedance:	50 Ohm
External diameter:	10.3 mm
Dielectric:	PE
Jacket:	PVC
Maximum frequency:	1 GHz
Non-magnetic:	Yes

Order code:	RG393
	Coaxial cable, 50Ω, PTFE, 9.9mm, double shield QAXIAL RG393/U
Conditions:	N (The product is brand new)
Application:	high power, high shielding, high temperature
Flexibility:	Flexible
Impedance:	50 Ohm
External diameter:	9.9 mm
Dielectric:	PTFE
Jacket:	FEP
Maximum frequency:	6 GHz
Non-magnetic:	Yes
