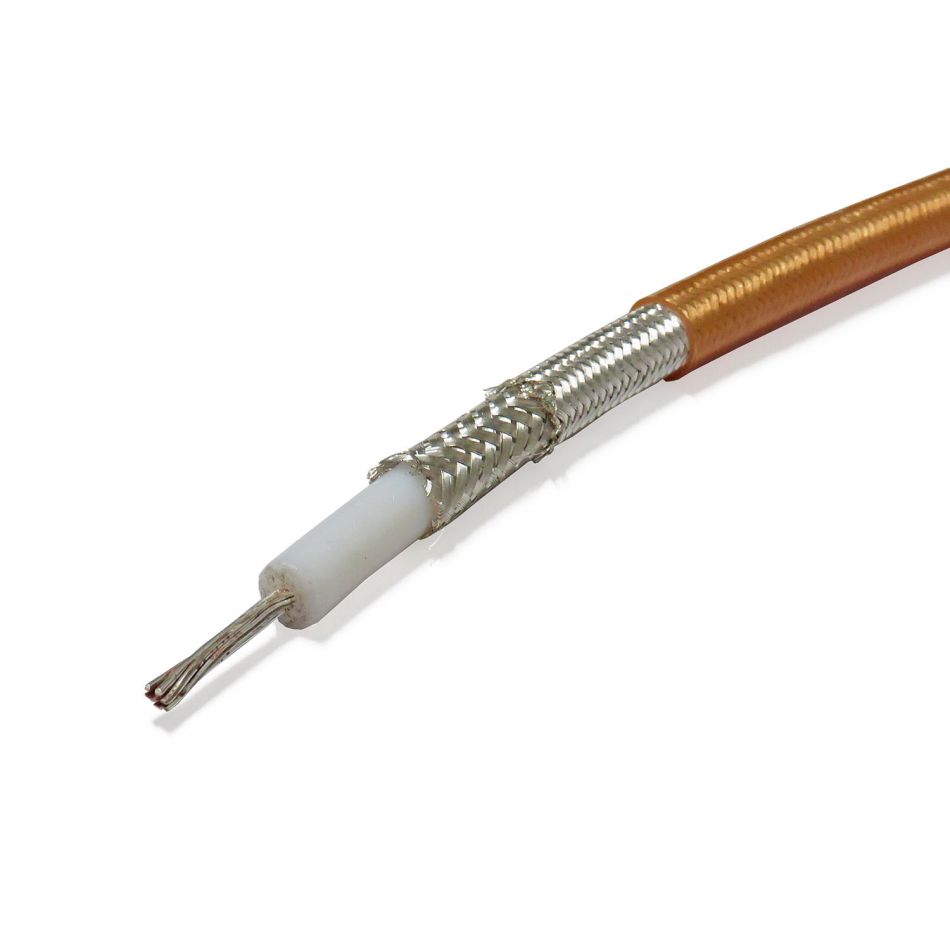

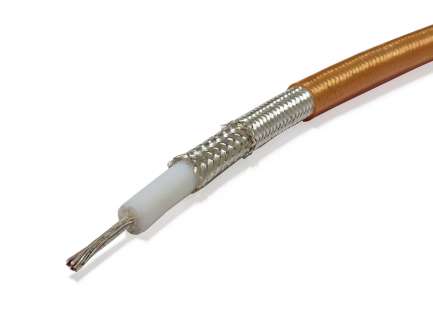

RG393/U - Coaxial cable, 50Ω, PTFE, 9.9mm, double shield

The QAXIAL RG393/U coaxial cable is a high-performance, military-grade cable designed for demanding RF and microwave applications. Its robust construction and excellent electrical properties make it suitable for use in harsh environments, including aerospace, defense, and industrial systems.

Technical Specifications of RG393 Cable

• Characteristic impedance: 50 Ohms
• Inner conductor: Stranded silver-plated copper
• Dielectric: Solid PTFE (Polytetrafluoroethylene)
• Shielding: Double silver-plated copper braid
• Outer jacket: FEP (Fluorinated Ethylene Propylene), flame-retardant and chemical-resistant
• Operating temperature: -55°C to +200°C
• Outer diameter: 9.9 mm

Applications of RG393 Coaxial Cable

The RG393/U cable is widely used in applications that require high power handling, low signal loss, and resistance to environmental stress. Typical uses include:

• Military and aerospace communication systems
• High-frequency RF transmission
• Radar and satellite systems
• Test and measurement equipment
• Industrial RF heating and plasma systems

Advantages of RG393 Cable

Thanks to its rugged design and high-quality materials, the RG393/U offers several key benefits:

• Excellent power handling capability
• Low attenuation and high signal integrity
• Superior shielding effectiveness
• Resistance to chemicals, moisture, and extreme temperatures
• Long service life in demanding environments

The RG393/U coaxial cable is a trusted solution for engineers and technicians who require reliable performance in mission-critical RF applications.
