PIN diodes selection guide
It is here available a brief in-depth technical guide about PIN diodes
RF attenuator | Band switching |
Low distortion |
Fast switch |
AGC | Limiter | Frequency multiplier |
Power switch | ||
Glass or ![]() |
5082-3080 MA47111 BA389 BA479 MA4P4006 TDA1061 |
BA182 (plastic) BA243 BA244 BA282 BA283 BA482 5082-3188 |
5082-3080 MA47111 BA389 (low cost general purpose) |
5082-3043 5082-3188 |
5082-3080 TDA1061 |
5082-3043 5082-3080 5082-3039 HSCH-1001 |
2/3W | BA389 BA479 BA282 BA283 |
|
3/5W | 5082-3039 5082-3080 5082-3188 MI301 |
||||||||
50W | UM7006 | ||||||||
100W | UM9401 | ||||||||
1KW | UM9415 | ||||||||
SMD |
BA679 BA885 BAR14-1 BAR16-1 BAR60 BAR61 BAR64… HSMP-380x HSMP-381x HSMP-3881 SMP-1304 1SV271 |
BA182 BA582 BA592 BA682 BA792 BAP50-03 |
BAR14-1 BAR16-1 BAR60 BAR61 BAR64… BA595 BA885 HSMP-380x HSMP-381x HSMP-3880 HSMP-3881 SMP-1304 |
HSMP-382x BAP50-03 MA4P153 BAR63... 1SV271 |
BA885 HSMP-380x HSMP-381x HSMP-3881 BAR60 BAR61 BAR64... SMP-1304 |
HSMP-382x HSMP-4890 |
HSMP-382x | 2W | BA679 BA885 |
3W | MMBV3401 BAR63 BAR64 BA682 |
Application notes:
Application note HP n. 922: Applications of PIN Diodes
Application note HP n. 1054: Low Cost Frequency Multipliers Using Surface Mount PIN Diodes
Wenzel associated Inc.: Two-Diode Odd-Order Frequency Multipliers
Techlib.com: New Topology Multiplier Generates Odd Harmonics
Application note Avago n. 1048: Low-Cost Surface Mount PIN Diode π Attenuator
Order code: | 1SV271 |
---|---|
![]() |
PIN diode, 50V, 50mA, 3Ω, SOD-323 TOSHIBA 1SV271 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | fast switch |
Reverse voltage (VR): | 50 V |
Forward current (IF) : | 50 mA |
Max. Capacitance (CT): | 0.4 pF |
Series resistance (Rs @ IF) : | 3 Ohm @ 10 mA |

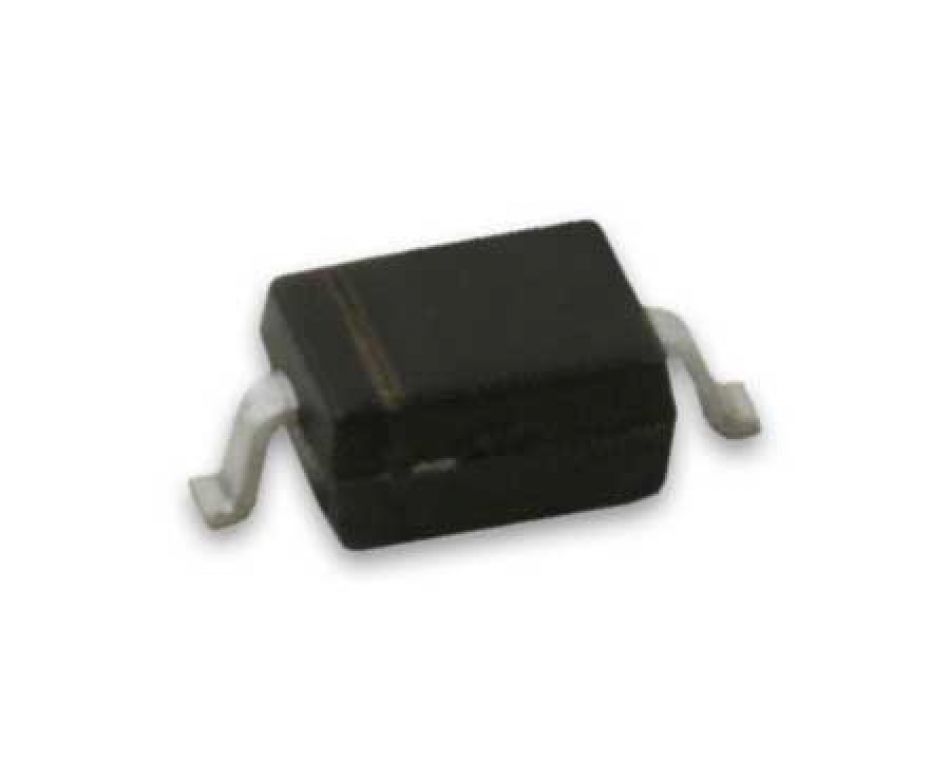

Package: | SOD-323 |
Mounting: | SMD |
Configuration: | single |
Junction temp. (Tj) (°C): | 125 |
Order code: | 5082-3043 |
---|---|
![]() |
PIN diode, 50V, 20mA, 1.5Ω, DO-35 Hewlett-Packard 5082-3043 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | band switching, fast switch, RF attenuator |
Reverse voltage (VR): | 50 V |
Forward current (IF) : | 20 mA |
Max. Capacitance (CT): | 0.4 pF |
Series resistance (Rs @ IF) : | 1.5 Ohm @ 20 mA |
Carrier lifetime: | 35 ns |

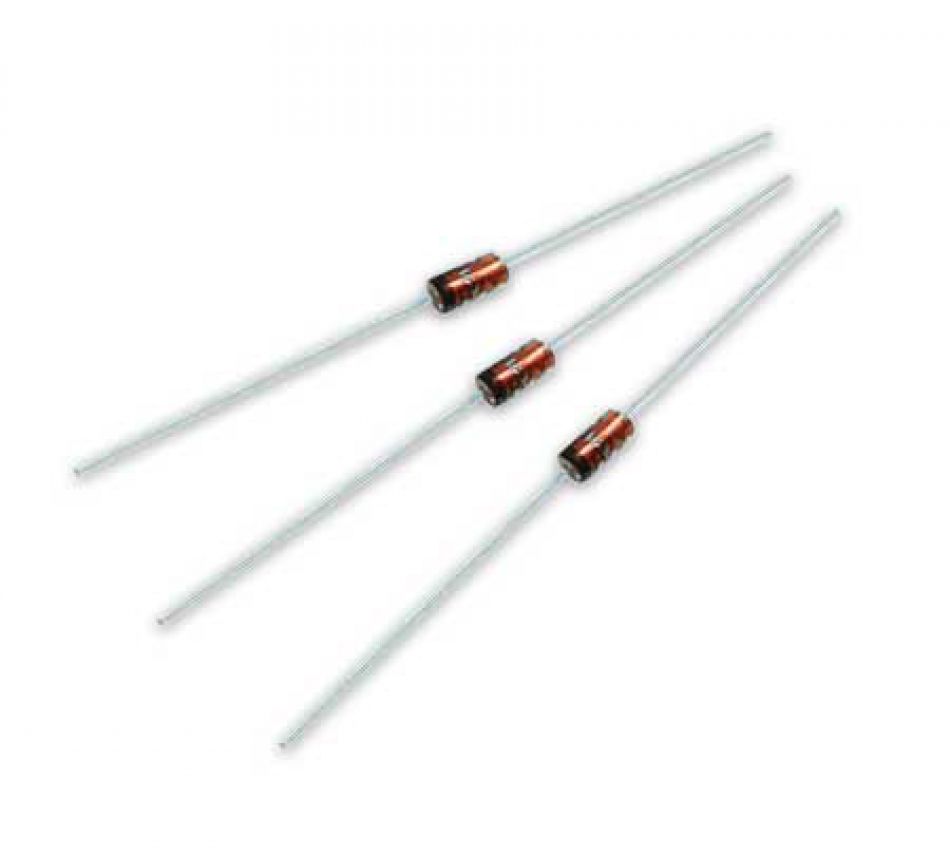

Package: | DO-35 |
Mounting: | axial |
Configuration: | single |
Junction temp. (Tj) (°C): | 150 |
Order code: | 5082-3080 |
---|---|
![]() |
PIN diode, 100V, 100mA, 2.5Ω, DO-35 Hewlett-Packard 5082-3080 (1N5767) |
Application: | low distortion switch, RF attenuator |
Reverse voltage (VR): | 100 V |
Forward current (IF) : | 100 mA |
Max. Capacitance (CT): | 0.4 pF |
Series resistance (Rs @ IF) : | 2.5 Ohm @ 100 mA |
Carrier lifetime: | 1300 ns |
Package: | DO-35 |
Mounting: | axial |
Configuration: | single |
Junction temp. (Tj) (°C): | 150 |
Order code: | 5082-3340 |
---|---|
![]() |
Power PIN diode Hewlett-Packard 5082-3340 |

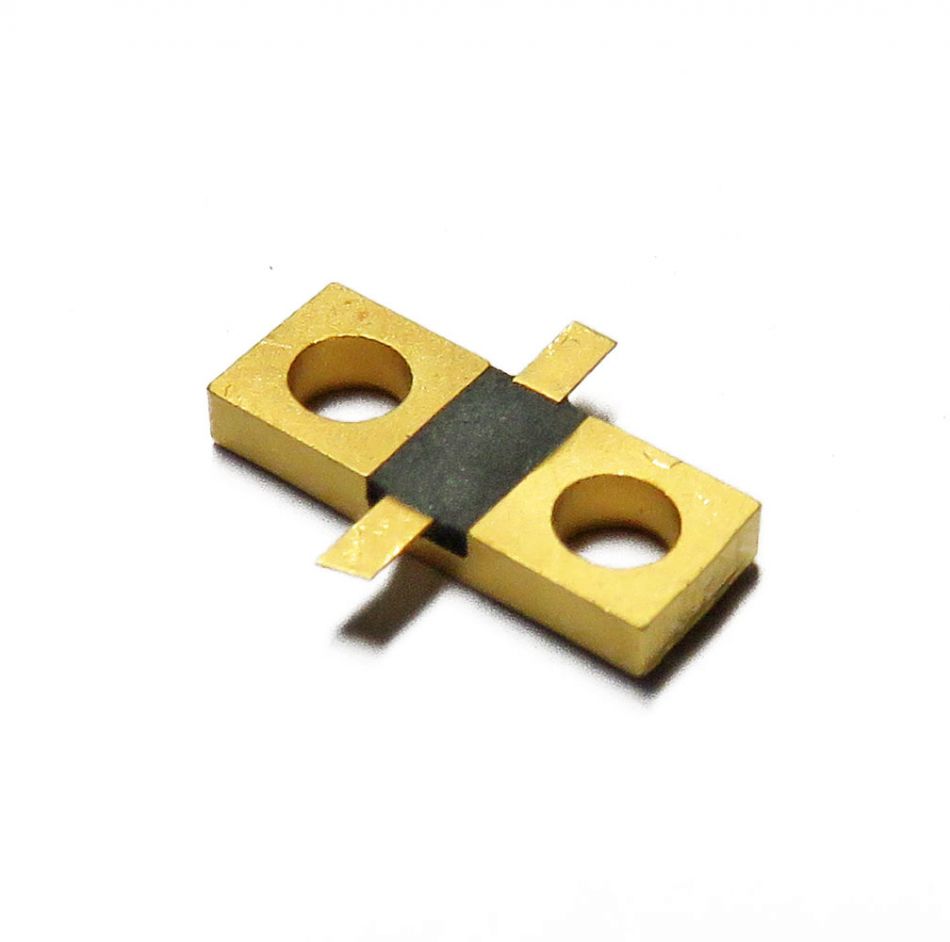

Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | AGC, limiter, power switch |
Reverse voltage (VR): | 150 V |
Carrier lifetime: | 400 ns |
Package: | Hi-Rel ceramic |
Mounting: | 2 holes flange |
Configuration: | single |
Junction temp. (Tj) (°C): | 125 |
Order code: | BA182 |
---|---|
![]() |
PIN diode, 35V, 100mA, 0.7Ω, SOD-23 Telefunken BA182 |

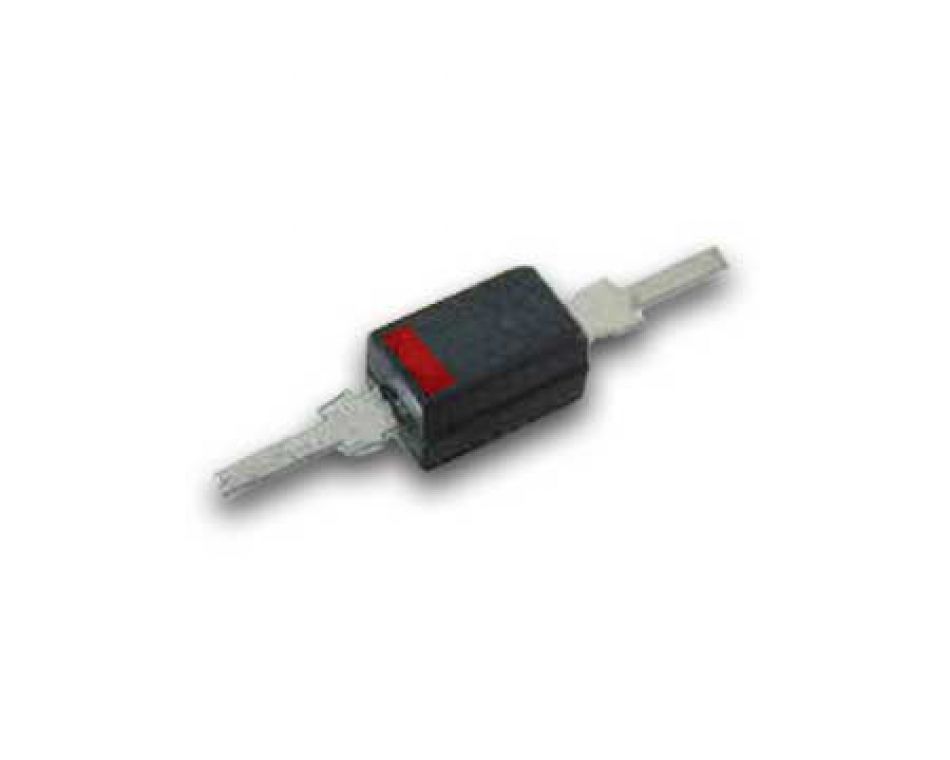

Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | band switching, power switch |
Reverse voltage (VR): | 35 V |
Forward current (IF) : | 100 mA |
Max. Capacitance (CT): | 0.8 pF |
Series resistance (Rs @ IF) : | 0.7 Ohm @ 5 mA |
Package: | SOD-23 |
Mounting: | axial |
Configuration: | single |
Order code: | BA243 |
---|---|
![]() |
PIN diode, 20V, 100mA, 0.7Ω, DO-35 ITT Semiconductors BA243 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | band switching, general purpose |
Reverse voltage (VR): | 20 V |
Forward current (IF) : | 100 mA |
Max. Capacitance (CT): | 1.5 pF |
Series resistance (Rs @ IF) : | 0.7 Ohm @ 10 mA |
Package: | DO-35 |
Mounting: | axial |
Configuration: | single |
Order code: | BA244 |
---|---|
![]() |
PIN diode, 20V, 100mA, 0.3Ω, DO-35 ITT Semiconductors BA244 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | band switching, general purpose |
Reverse voltage (VR): | 20 V |
Forward current (IF) : | 100 mA |
Max. Capacitance (CT): | 1.5 pF |
Series resistance (Rs @ IF) : | 0.3 Ohm @ 10 mA |
Package: | DO-35 |
Mounting: | axial |
Configuration: | single |
Order code: | BA283 |
---|---|
![]() |
PIN diode, 35V, 100mA, 0.9Ω, DO-35 Siemens BA283 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | band switching, general purpose, power switch |
Reverse voltage (VR): | 35 V |
Forward current (IF) : | 100 mA |
Max. Capacitance (CT): | 1.5 pF |
Series resistance (Rs @ IF) : | 0.9 Ohm @ 10 mA |
Package: | DO-35 |
Mounting: | axial |
Configuration: | single |
Junction temp. (Tj) (°C): | 150 |
Order code: | BA389 |
---|---|
![]() |
PIN diode, 30V, 50mA, 5Ω, DO-35 Siemens BA389 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | general purpose, low distortion switch, power switch, RF attenuator |
Reverse voltage (VR): | 30 V |
Forward current (IF) : | 50 mA |
Max. Capacitance (CT): | 0.5 pF |
Series resistance (Rs @ IF) : | 5 Ohm @ 10 mA, 40 Ohm @ 1.5 mA |
Carrier lifetime: | 1.5 µs |
Package: | DO-35 |
Mounting: | axial |
Configuration: | single |
Junction temp. (Tj) (°C): | 150 |
Order code: | BA482 |
---|---|
![]() |
PIN diode, 35V, 100mA, 0.6Ω, DO-34 Philips BA482 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | band switching, general purpose |
Reverse voltage (VR): | 35 V |
Forward current (IF) : | 100 mA |
Max. Capacitance (CT): | 1.2 pF |
Series resistance (Rs @ IF) : | 0.6 Ohm @ 3 mA |
Package: | DO-34 |
Mounting: | axial |
Configuration: | single |
Junction temp. (Tj) (°C): | 150 |
Order code: | BA582 |
---|---|
![]() |
PIN diode, 35V, 100mA, 0.38Ω, SOD-123 Siemens BA582 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | band switching |
Reverse voltage (VR): | 35 V |
Forward current (IF) : | 100 mA |
Max. Capacitance (CT): | 1.4 pF |
Series resistance (Rs @ IF) : | 0.38 Ohm @ 10 mA |
Package: | SOD-123 |
Mounting: | SMD |
Configuration: | single |
Junction temp. (Tj) (°C): | 125 |
Order code: | BA592 |
---|---|
![]() |
PIN diode, 35V, 100mA, 0.36Ω, SOD-323 Siemens BA592 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | band switching |
Reverse voltage (VR): | 35 V |
Forward current (IF) : | 100 mA |
Max. Capacitance (CT): | 1.4 pF |
Series resistance (Rs @ IF) : | 0.36 Ohm @ 10 mA |
Package: | SOD-323 |
Mounting: | SMD |
Configuration: | single |
Junction temp. (Tj) (°C): | 125 |
Order code: | BA679 |
---|---|
![]() |
PIN diode, 30V, 50mA, 50Ω, SOD-80 Telefunken BA679 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | power switch, RF attenuator |
Reverse voltage (VR): | 30 V |
Forward current (IF) : | 50 mA |
Max. Capacitance (CT): | 0.5 pF |
Series resistance (Rs @ IF) : | 50 Ohm @ 1.5 mA |
Carrier lifetime: | 4 µs |

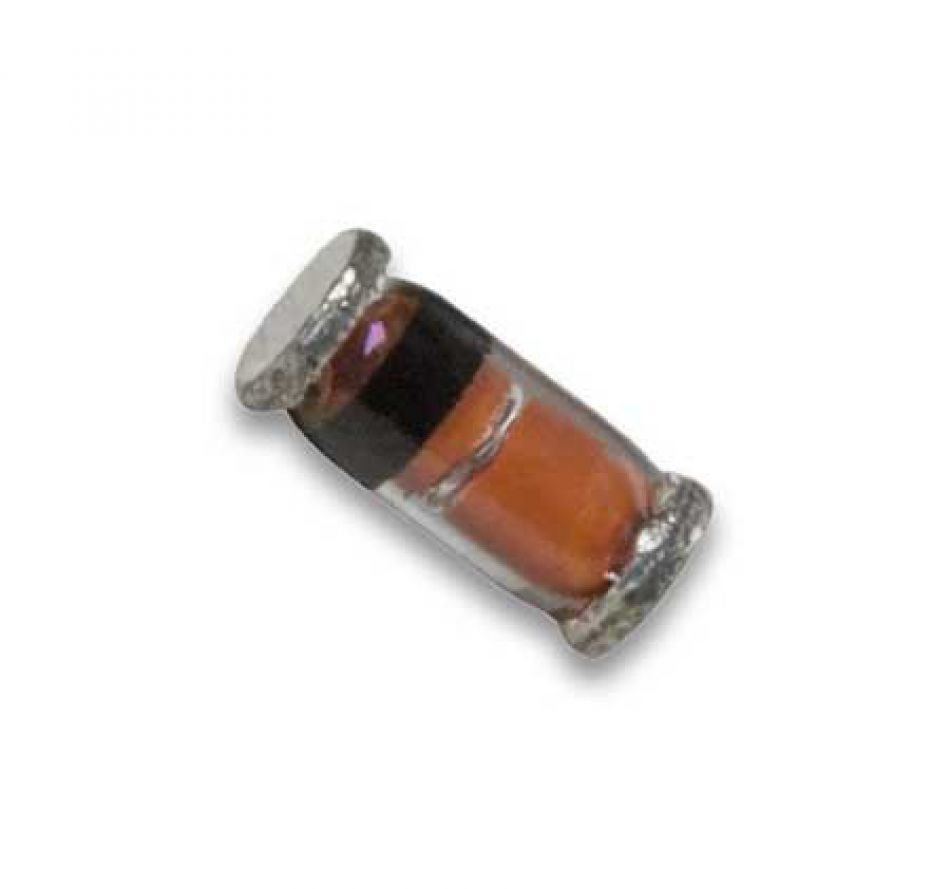

Package: | MiniMELF (SOD-80) |
Mounting: | SMD |
Configuration: | single |
Junction temp. (Tj) (°C): | 125 |
Order code: | BA682 |
---|---|
![]() |
PIN diode, 35V, 50mA, 0.5Ω, SOD-80 Siemens BA682 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | band switching, power switch |
Reverse voltage (VR): | 35 V |
Forward current (IF) : | 50 mA |
Max. Capacitance (CT): | 1.5 pF |
Series resistance (Rs @ IF) : | 0.5 Ohm @ 10 mA |
Package: | MiniMELF (SOD-80) |
Mounting: | SMD |
Configuration: | single |
Junction temp. (Tj) (°C): | 100 |
Order code: | BA885 |
---|---|
![]() |
PIN diode, 50V, 50mA, 50Ω, SOT-23 Siemens BA885 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Application: | AGC, low distortion switch, power switch, RF attenuator |
Reverse voltage (VR): | 50 V |
Forward current (IF) : | 50 mA |
Max. Capacitance (CT): | 0.6 pF |
Series resistance (Rs @ IF) : | 5 Ohm @ 10 mA |
Carrier lifetime: | 1.6 µs |

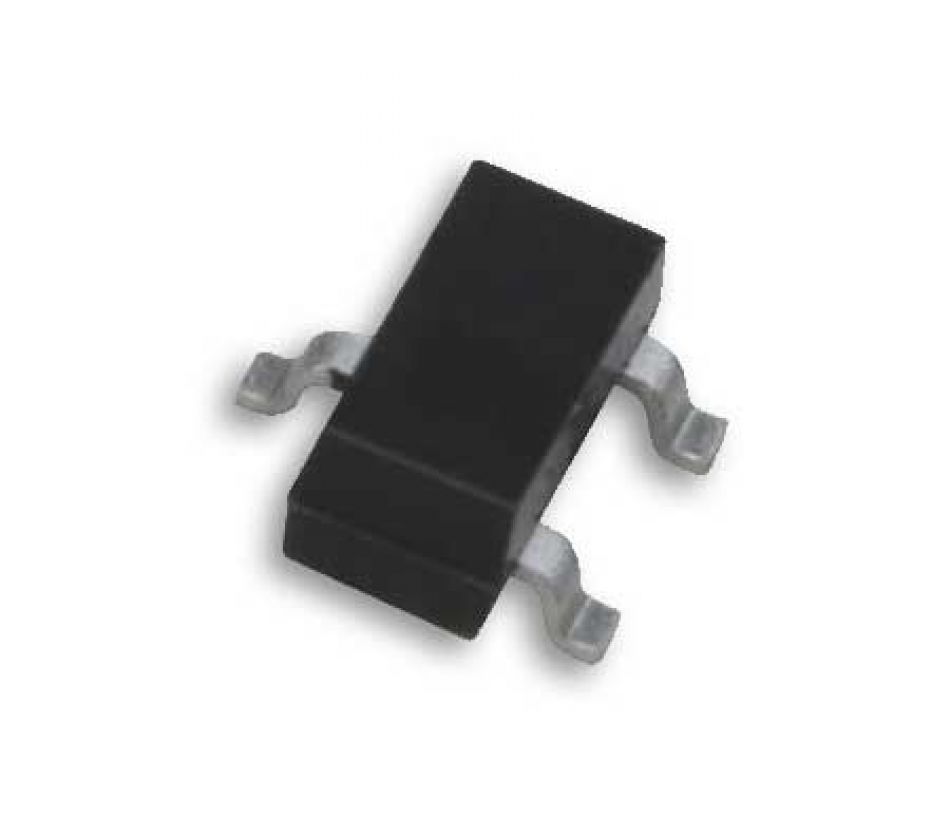

Package: | SOT-23 |
Mounting: | SMD |
Configuration: | single |
Junction temp. (Tj) (°C): | 125 |
