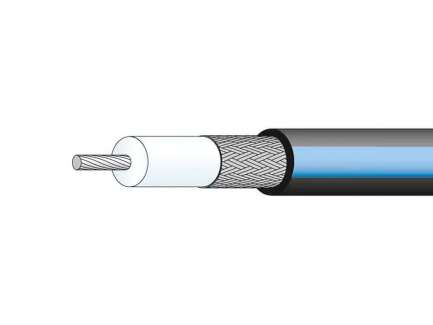

Coaxial cable, RG316 LSFH, 50Ω, 3 GHz, 105°C, ø2.54 mm, RADOX® jacket, 100 m

Product Overview

Huber+Suhner ENVIROFLEX_316 is a rugged, halogen-free coaxial cable designed for RF signal transmission up to 3 GHz. As a low-smoke alternative to RG316, it features a larger silver-plated stranded conductor and a 99% coverage braid for excellent shielding and signal integrity. The RADOX® jacket ensures superior resistance to UV, ozone, and mechanical stress, making it suitable for both indoor and outdoor use. With UL AWM Style 3651 certification and a compact 2.54 mm diameter, ENVIROFLEX_316 offers a reliable solution for demanding RF applications requiring flexibility and durability.

Key Features

• Halogen-free & flame retardant: Complies with IEC 60754 and UL 1581 §1100

• High shielding performance: 99% silver-plated copper braid for minimal signal loss

• Stable RF transmission: 50 Ω impedance, 94.5 pF/m capacitance, up to 3 GHz

• RADOX® jacket: UV, ozone, and weathering resistant (IEC 60068-2-5)

• UL AWM Style 3651: Certified for international safety standards

• Flexible & robust: Repeated bend radius of 25 mm (up to 3000 cycles)

• Compact design: 2.54 mm outer diameter, ideal for tight routing

Typical Applications

• RF signal transmission in industrial and outdoor environments

• Aerospace and transport systems requiring low-smoke materials

• Test and measurement setups with frequent cable movement

• Replacement for RG316 in halogen-free installations

• Instrumentation and sensor cabling in harsh conditions
