Brand: Mini-Circuits
Manufacturer code: VNA-25
Order code: VNA-25

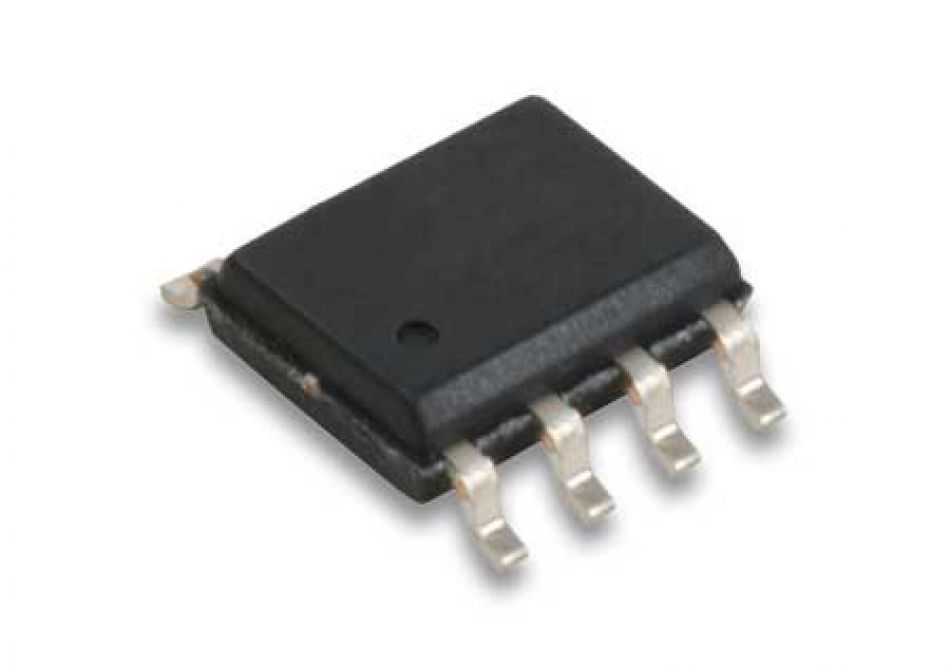

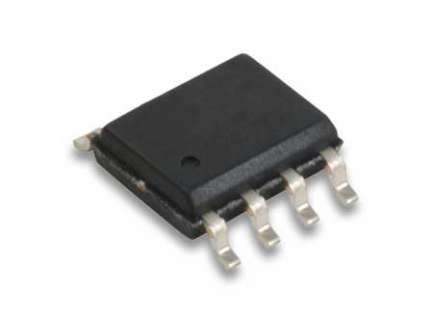

GaAs MMIC amplifier, SOIC-8

Product conditions: N-
$2.08
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
73 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $2.08 $2.08
10+ $1.82 $18.16
50+ $1.61 $80.26
100+ $1.38 $138.34
250+ $1.22 $306.24
(VAT tax not included)
Compliance
Country of origin US
EU Tariff Code 85423390
Weight 1.00 g
RoHS No
REACH Not available
  • 500 MHz
  • 2.5 GHz
  • 3 V
  • 80 mA
  • 1 W
  • 17.4 dB
  • 12 dBm
  • 5.5 dB
  • SOIC-8
  • SMD

GaAs MMIC amplifier, SOIC-8

GAIN:
- 14 dB @ 500 MHz
- 18 dB @ 1 GHz
- 17 dB @ 2 GHz

VNA-25 is a MMIC for the 0.5 - 2.5 GHz band for small/medium power applications, in fact it has a variable output power between +16 and +18 dBm, lets see its key features:

  • Input and output dc-block capacitors are already inside the device and power supply pin is separated from output pin (differently than used in almost all the MMICs), these characteristics may seem quite trivial but they make the difference compared with similar devices, making very easy the mounting that needs only a by-pass capacitor on power supply because the bias network is already inside.
  • Very wide band, 0.5 - 2.5 GHz, with 14 - 17dB gain and +17 / +18 dBm output power, moreover the noise figure, despite the absorbed current, still keeps acceptable values making it usable as high dynamic RX post-amplifier with + 27 dBm IP3.
  • Dissipation, always difficult in so small devices, is guaranteed by the ground connection of 4 pins.
  • High S12 value with reverse insulation from 35 to 40 dB so it is suitable as good buffer stage.
  • Due to its fair output power it can be used for wide and narrow band applications, as final or driver TX, considering that to reach the full power it needs only 2 - 3 mW.

VNA-25
/
  Title Dimension
Datasheet 529.9 kB
High Isolation, Fixed Voltage, Fully Integrated Monolithic Microwave Amplifiers 396.4 kB
