Here are listed some transistors particularly suitable for class A ultralinear applications:
Warning: The following power values are referred to A class TV usage.
These transistors are also listed also on other categories as they are specified for other use than class A, for the same device characteristics of gain, efficiency and output power are significantly reduced in class A for the benefit of a much higher linearity.
Class A output level is measured with intermodulation IMD @ -58 / -60 dB (CCIR rules) or -54 / -58 dB for ≥ 1 W devices, dBmV = signal level in dB over 1 mV.

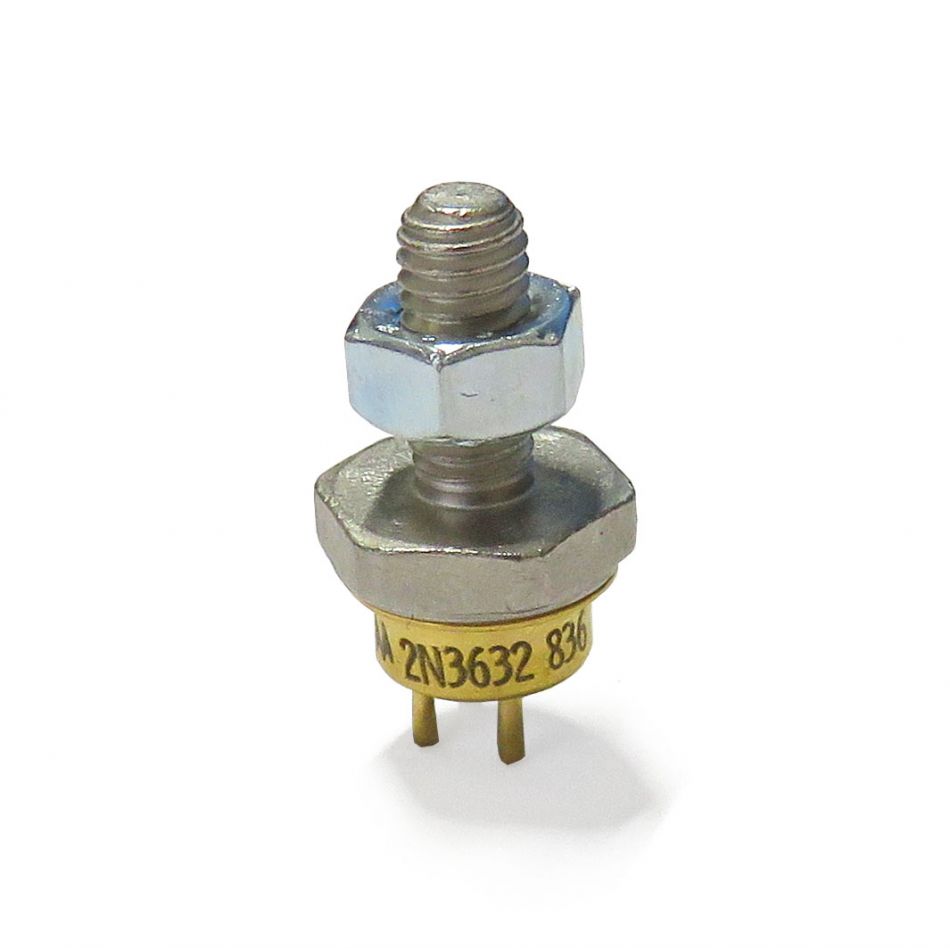

Order code: | 2N3632 |
---|---|
![]() |
NPN RF power transistor, 13.5 W, 175 MHz, TO-60 Motorola 2N3632 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 13.5 W |
Dissipated power (Ptot): | 23 W |
Collector current (Ic max): | 3 A |
Collector-emitter voltage (Vce max) : | 40 V |
Supply voltage: | 28 V |
Mounting or package: | TO-60 |
Frequency bands: | 175 MHz, VHF |

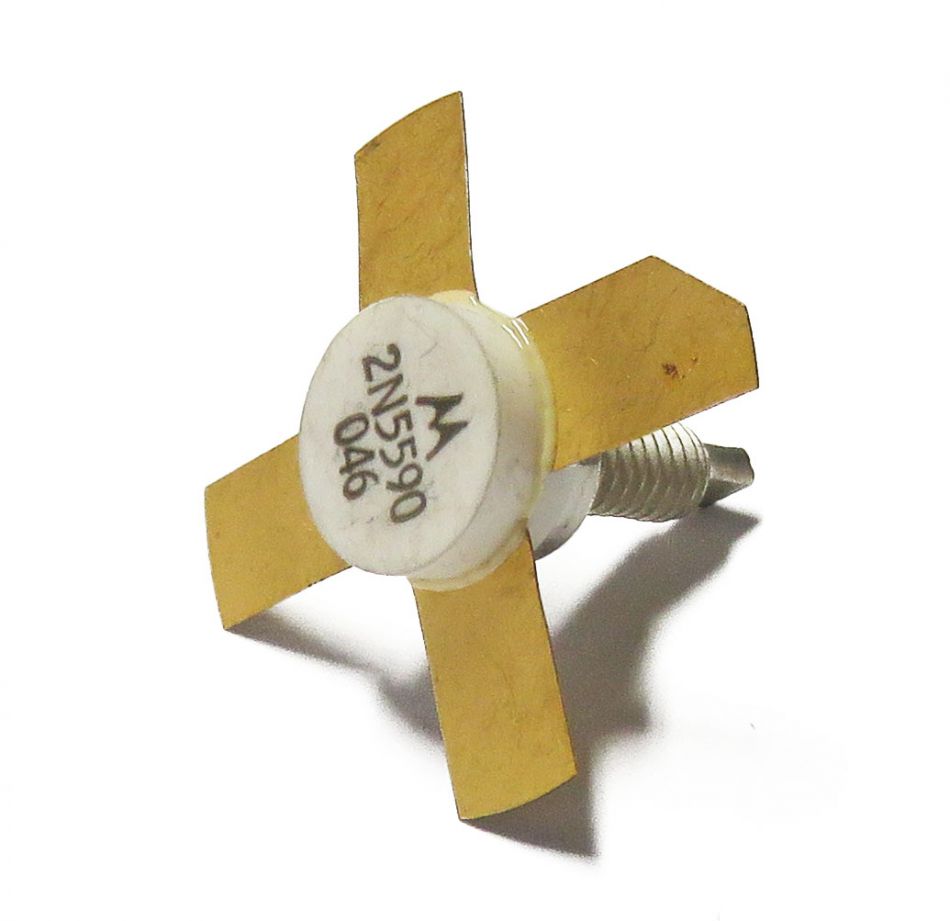

Order code: | 2N5590 |
---|---|
![]() |
NPN RF power transistor, 80 W, up to 240 MHz Motorola 2N5590 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 10 W |
Dissipated power (Ptot): | 30 W |
Collector current (Ic max): | 2 A |
Collector-emitter voltage (Vce max) : | 18 V |
Supply voltage: | 13.5 V |
Mounting or package: | screw |
Frequency bands: | 240 MHz, VHF |

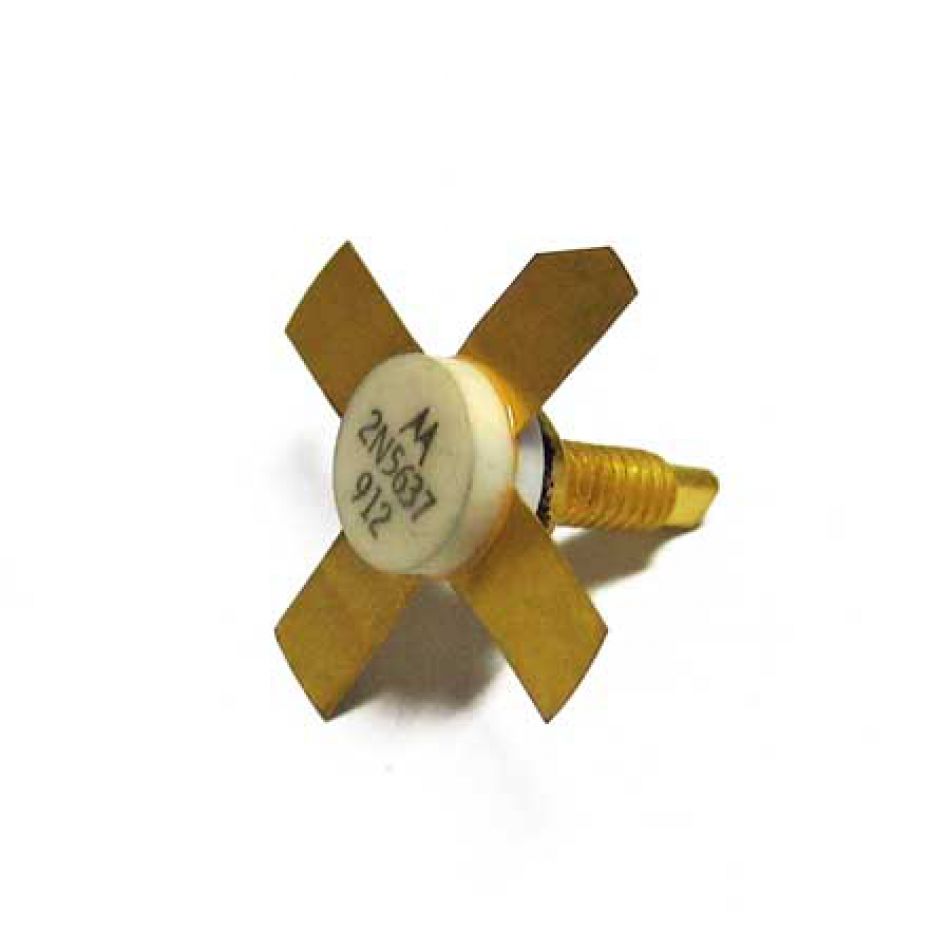

Order code: | 2N5637 |
---|---|
![]() |
NPN RF power transistor, 23 W, up to 400 MHz Motorola 2N5637 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 23 W |
Dissipated power (Ptot): | 30 W |
Collector current (Ic max): | 3 A |
Collector-emitter voltage (Vce max) : | 35 V |
Supply voltage: | 28 V |
Mounting or package: | screw |
Frequency bands: | 400 MHz, UHF, VHF |

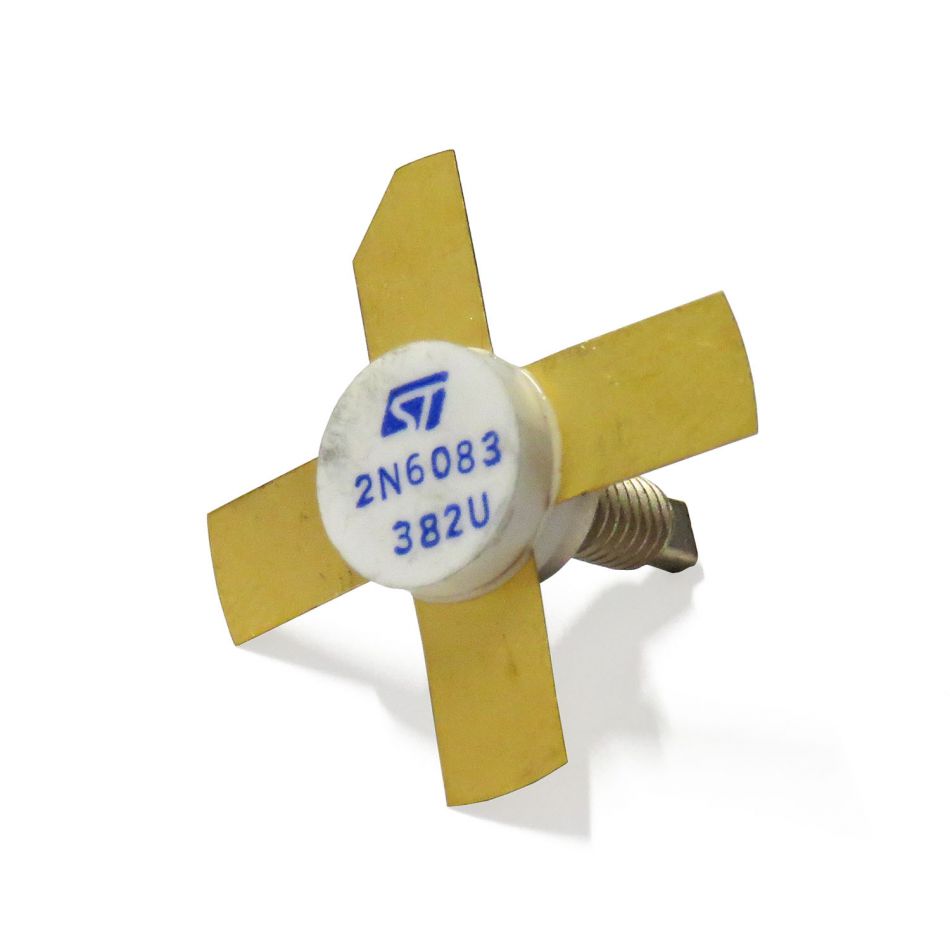

Order code: | 2N6083 |
---|---|
![]() |
NPN RF power transistor, 30 W, VHF STMicroelectronics 2N6083 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 30 W |
Dissipated power (Ptot): | 65 W |
Collector current (Ic max): | 4 A |
Collector-emitter voltage (Vce max) : | 18 V |
Supply voltage: | 12.5 V |
Mounting or package: | screw |
Frequency bands: | VHF |

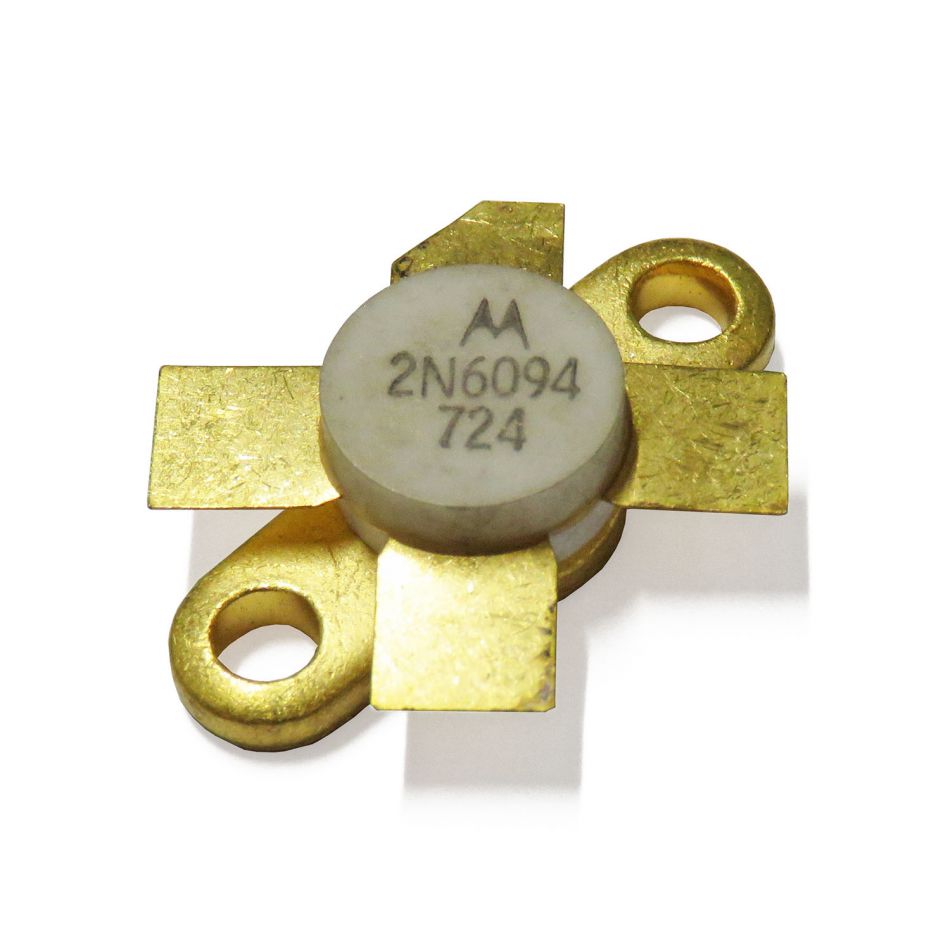

Order code: | 2N6094 |
---|---|
![]() |
PNP RF power transistor, 4 W, 175 MHz Motorola 2N6094 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | PNP |
Output power: | 4 W |
Dissipated power (Ptot): | 8 W |
Collector current (Ic max): | 1 A |
Collector-emitter voltage (Vce max) : | 18 V |
Supply voltage: | 12.5 V |
Mounting or package: | flange |
Frequency bands: | 175 MHz, VHF |

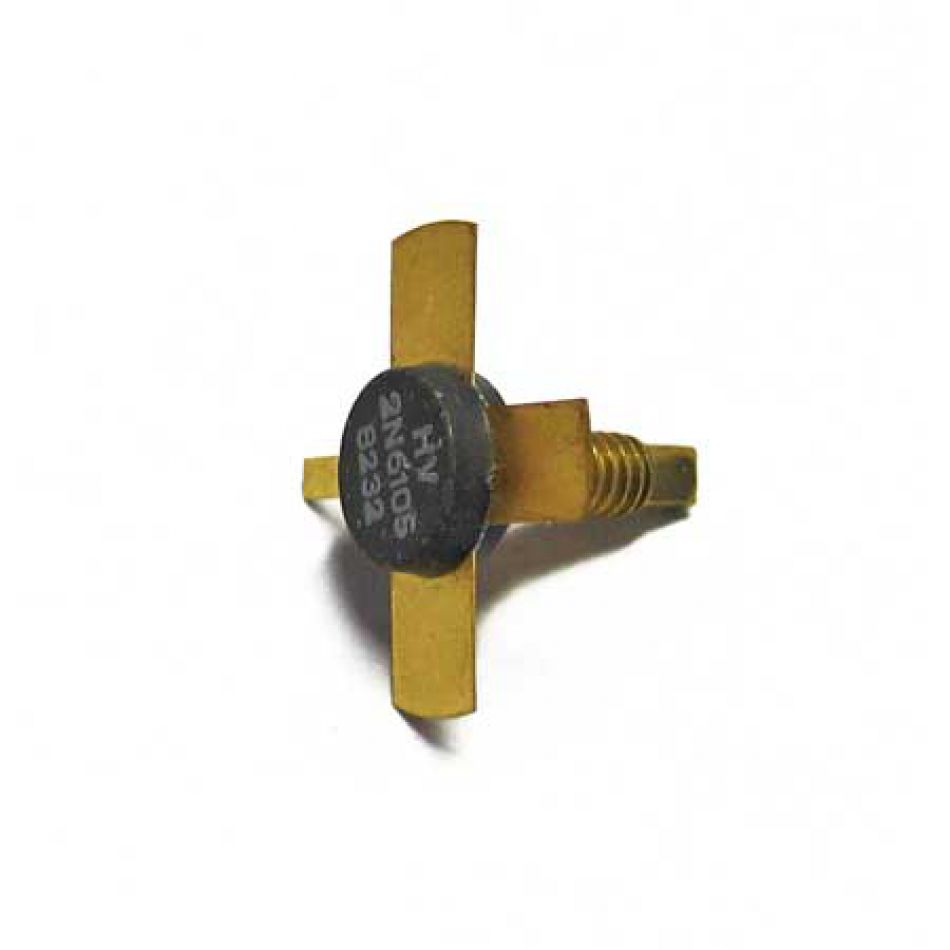

Order code: | 2N6105 |
---|---|
![]() |
NPN RF power transistor, 30 W, 225 - 400 MHz broadband HV 2N6105 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 30 W |
Dissipated power (Ptot): | 36 W |
Collector current (Ic max): | 4.5 A |
Collector-emitter voltage (Vce max) : | 30 V |
Supply voltage: | 28 V |
Mounting or package: | screw |
Frequency bands: | 225 - 400 MHz, UHF, VHF |

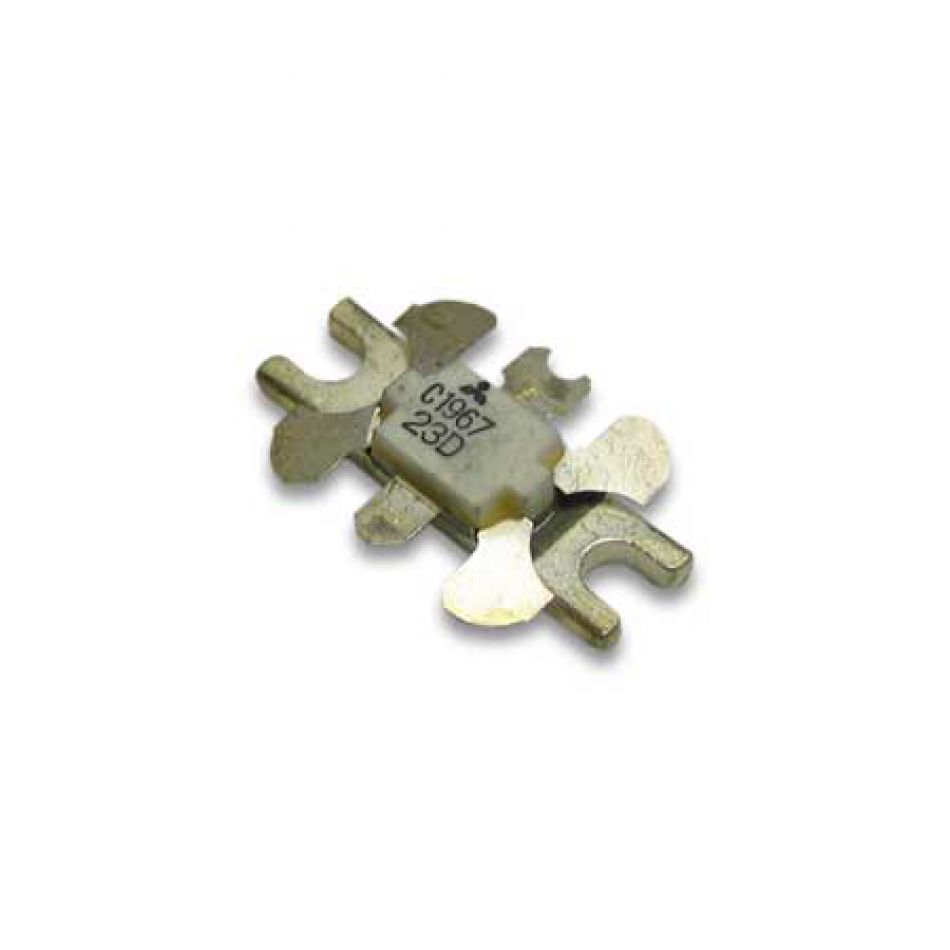

Order code: | 2SC1967 |
---|---|
![]() |
Silicon NPN RF power transistor MITSUBISHI 2SC1967 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 7 W |
Dissipated power (Ptot): | 20 W |
Collector current (Ic max): | 2 A |
Collector-emitter voltage (Vce max) : | 17 V |
Supply voltage: | 13.5 V |
Mounting or package: | flange |
Frequency bands: | UHF |

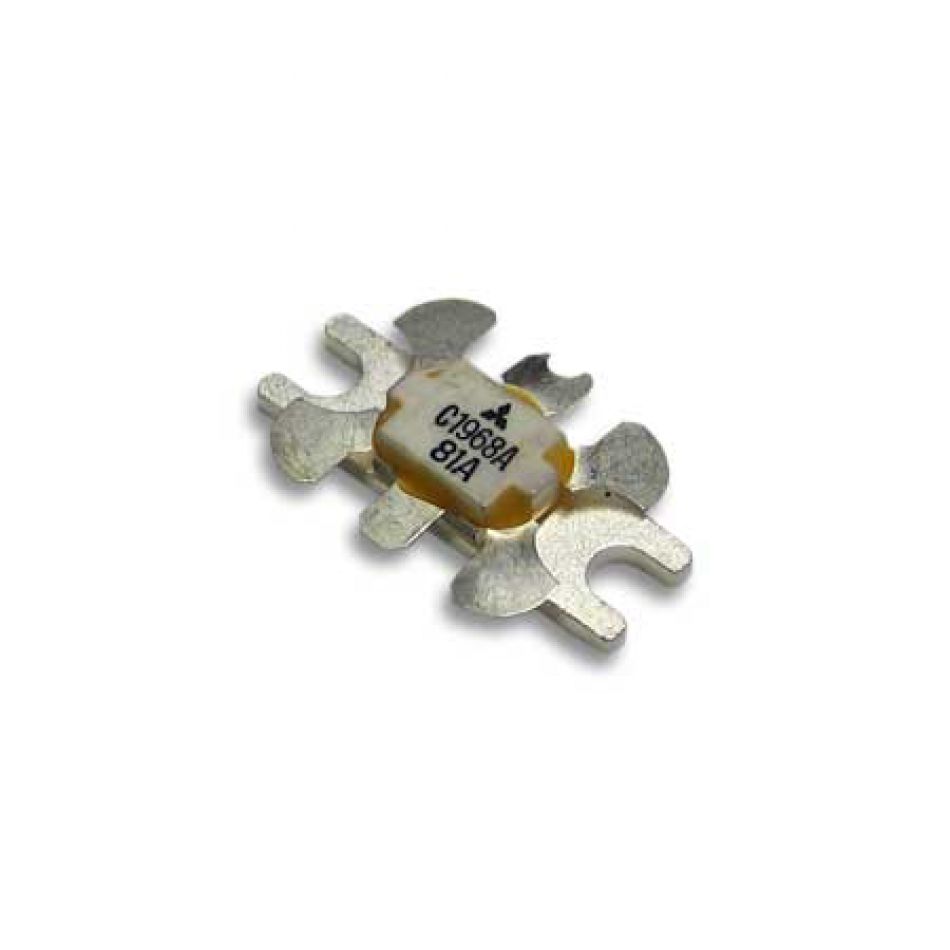

Order code: | 2SC1968A |
---|---|
![]() |
Silicon NPN RF power transistor MITSUBISHI 2SC1968A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 14 W |
Dissipated power (Ptot): | 40 W |
Collector current (Ic max): | 5 A |
Collector-emitter voltage (Vce max) : | 17 V |
Supply voltage: | 13.5 V |
Mounting or package: | flange |
Frequency bands: | UHF |

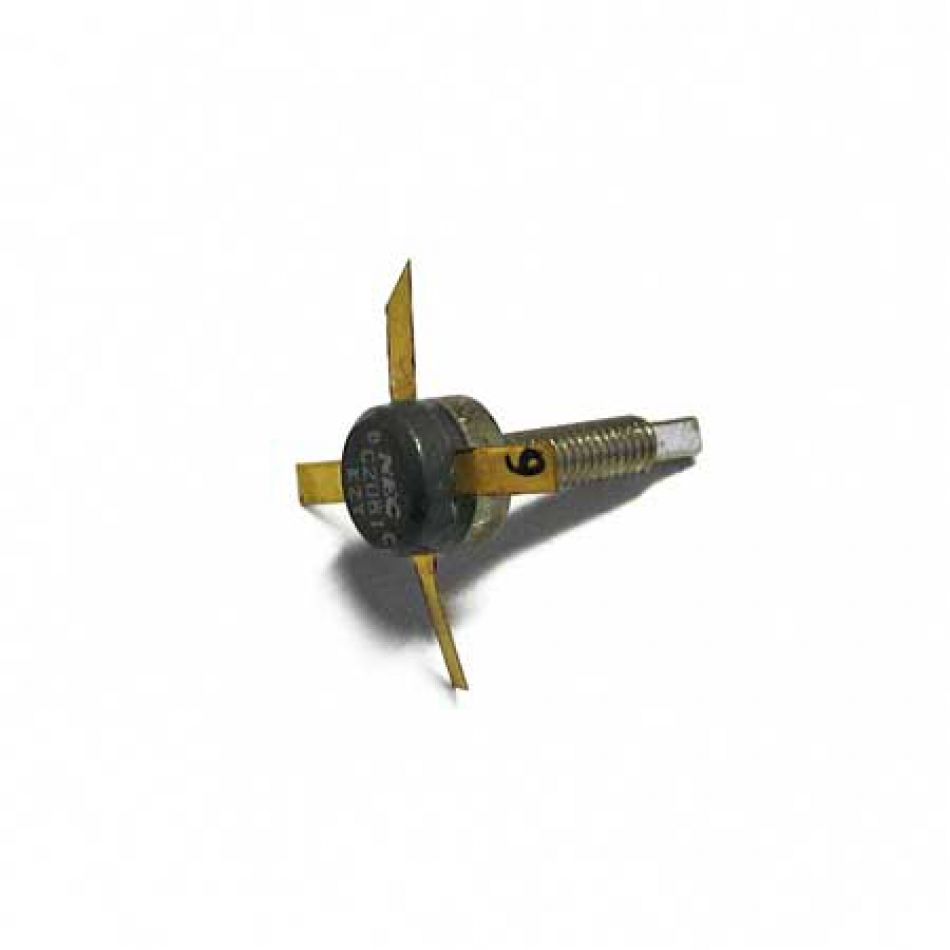

Order code: | 2SC2081 |
---|---|
![]() |
Silicon NPN RF power transistor NEC 2SC2081 (NE050320-12) |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 3.2 W |
Dissipated power (Ptot): | 10 W |
Collector current (Ic max): | 750 mA |
Collector-emitter voltage (Vce max) : | 18 V |
Supply voltage: | 12.6 V |
Mounting or package: | screw |
Frequency bands: | UHF |
Order code: | 2SC2131 |
---|---|
![]() |
Silicon NPN RF power transistor, TO-39 MITSUBISHI 2SC2131 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 1.6 W |
Dissipated power (Ptot): | 4 W |
Collector current (Ic max): | 0.6 A |
Collector-emitter voltage (Vce max) : | 18 V |
Supply voltage: | 13.5 V |
Mounting or package: | TO-39 |
Frequency bands: | UHF |
Order code: | 2SC2221 |
---|---|
![]() |
Silicon NPN RF power transistor, TO-39 NEC 2SC2221 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 2 W |
Dissipated power (Ptot): | 7.5 W |
Collector current (Ic max): | 750 mA |
Collector-emitter voltage (Vce max) : | 12 V |
Supply voltage: | 7.2 V |
Mounting or package: | TO-39 |
Frequency bands: | VHF |

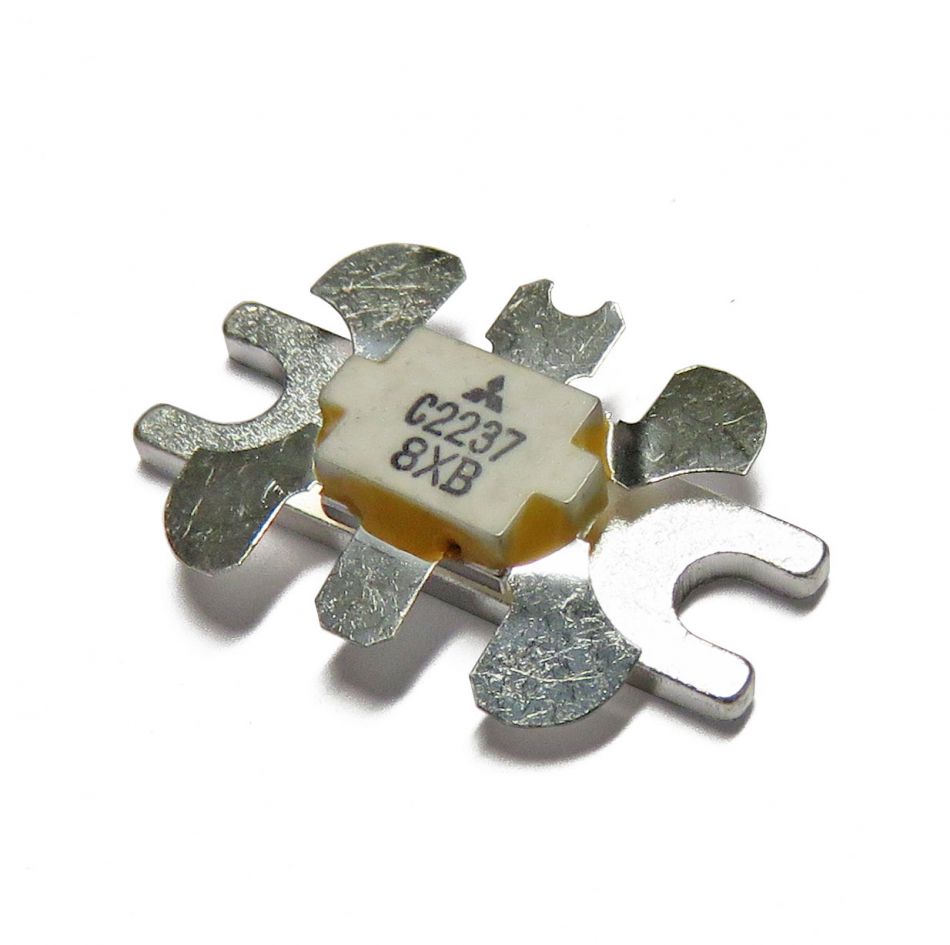

Order code: | 2SC2237 |
---|---|
![]() |
Silicon NPN RF power transistor MITSUBISHI 2SC2237 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 7.5 W |
Dissipated power (Ptot): | 20 W |
Collector current (Ic max): | 2 A |
Collector-emitter voltage (Vce max) : | 17 V |
Supply voltage: | 13.5 V |
Mounting or package: | flange |
Frequency bands: | VHF |
Order code: | 2SC2287 |
---|---|
![]() |
Silicon NPN RF power transistor NEC 2SC2287 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 8 W |
Dissipated power (Ptot): | 17 W |
Collector current (Ic max): | 1.5 A |
Collector-emitter voltage (Vce max) : | 18 V |
Supply voltage: | 13.5 V |
Mounting or package: | 789B |
Frequency bands: | VHF |
Order code: | 2SC2329 |
---|---|
![]() |
Silicon NPN RF power transistor NEC 2SC2329 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 2 W |
Dissipated power (Ptot): | 7.5 W |
Collector current (Ic max): | 750 mA |
Collector-emitter voltage (Vce max) : | 18 V |
Supply voltage: | 13 V |
Mounting or package: | TO-39 |
Frequency bands: | VHF |
Order code: | 2SC2379 |
---|---|
![]() |
Silicon NPN RF power transistor TOSHIBA 2SC2379 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 6 W |
Dissipated power (Ptot): | 15 W |
Collector current (Ic max): | 1.4 A |
Collector-emitter voltage (Vce max) : | 17 V |
Supply voltage: | 12.6 V |
Mounting or package: | flange |
Frequency bands: | UHF |
Order code: | 2SC2496A |
---|---|
![]() |
Silicon NPN RF power transistor NEC 2SC2496A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 42 W |
Dissipated power (Ptot): | 100 W |
Collector current (Ic max): | 10 A |
Collector-emitter voltage (Vce max) : | 18 V |
Supply voltage: | 13.5 V |
Mounting or package: | flange |
Frequency bands: | UHF |
Order code: | 2SC2539 |
---|---|
![]() |
Silicon NPN RF power transistor MITSUBISHI 2SC2539 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 14 W |
Dissipated power (Ptot): | 35 W |
Collector current (Ic max): | 3.5 A |
Collector-emitter voltage (Vce max) : | 17 V |
Supply voltage: | 13.5 V |
Mounting or package: | flange |
Frequency bands: | VHF |
Order code: | 2SC2711 |
---|---|
![]() |
Silicon NPN RF power transistor TOSHIBA 2SC2711 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Dissipated power (Ptot): | 6 W |
Collector current (Ic max): | 800 mA |
Supply voltage: | 13.5 V |
Frequency bands: | VHF |
Order code: | 2SC3021 |
---|---|
![]() |
Silicon NPN RF power transistor MITSUBISHI 2SC3021 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 7 W |
Dissipated power (Ptot): | 20 W |
Collector current (Ic max): | 2 A |
Collector-emitter voltage (Vce max) : | 17 V |
Supply voltage: | 12.5 V |
Mounting or package: | flange |
Frequency bands: | UHF |
Order code: | 2SC730 |
---|---|
![]() |
Silicon NPN RF power transistor, TO-39 MITSUBISHI 2SC730 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 1 W |
Dissipated power (Ptot): | 3 W |
Collector current (Ic max): | 400 mA |
Collector-emitter voltage (Vce max) : | 40 V |
Supply voltage: | 13.5 V |
Mounting or package: | TO-39 |
Frequency bands: | VHF |
Order code: | 2SC994 |
---|---|
![]() |
Silicon NPN RF power transistor, TO-39 TOSHIBA 2SC994 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 1.05 W |
Collector current (Ic max): | 100 mA |
Collector-emitter voltage (Vce max) : | 15 V |
Supply voltage: | 13.5 V |
Mounting or package: | TO-39 |
Frequency bands: | VHF |
Order code: | BFQ108 |
---|---|
![]() |
PNP RF power transistor Philips BFQ108 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | PNP |
Dissipated power (Ptot): | 4 W |
Collector current (Ic max): | -300 mA |
Collector-emitter voltage (Vce max) : | -18 V |
Mounting or package: | screw |
Frequency bands: | UHF |
Order code: | BFR97 |
---|---|
![]() |
Silicon NPN RF power transistor, TO-39 STMicroelectronics BFR97 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 1 W |
Dissipated power (Ptot): | 5 W |
Collector current (Ic max): | 500 mA |
Collector-emitter voltage (Vce max) : | 30 V |
Supply voltage: | 28 V |
Mounting or package: | TO-39 |
Frequency bands: | UHF, VHF |
Order code: | BFT98 |
---|---|
![]() |
Silicon NPN RF power transistor, TO-117 Siemens BFT98 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 600 mW |
Dissipated power (Ptot): | 2.25 W |
Collector current (Ic max): | 200 mA |
Collector-emitter voltage (Vce max) : | 30 V |
Supply voltage: | 15 V |
Mounting or package: | screw |
Frequency bands: | UHF, VHF |
Order code: | BLT71-8 |
---|---|
![]() |
Silicon NPN RF power transistor, SO-8 Philips BLT71/8 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 1.2 W |
Dissipated power (Ptot): | 2.9 W |
Collector current (Ic max): | 500 mA |
Collector-emitter voltage (Vce max) : | 8 V |
Supply voltage: | 4.8 V |
Mounting or package: | SO-8 |
Frequency bands: | UHF |
Order code: | BLT92-SL |
---|---|
![]() |
Silicon NPN RF power transistor Philips BLT92/SL |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 3 W |
Dissipated power (Ptot): | 10 W |
Collector current (Ic max): | 1.2 A |
Collector-emitter voltage (Vce max) : | 10 V |
Supply voltage: | 7.5 V |
Mounting or package: | SOT-122D |
Frequency bands: | UHF |
Order code: | BLU45-12 |
---|---|
![]() |
Silicon NPN RF power transistor Philips BLU45/12 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 45 W |
Dissipated power (Ptot): | 87 W |
Collector current (Ic max): | 9 A |
Collector-emitter voltage (Vce max) : | 16.5 V |
Supply voltage: | 12.5 V |
Mounting or package: | flange |
Frequency bands: | UHF |
Order code: | BLV30 |
---|---|
![]() |
Silicon NPN RF power transistor Philips BLV30 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 1.5 W |
Dissipated power (Ptot): | 32.5 W |
Collector current (Ic max): | 1.5 A |
Collector-emitter voltage (Vce max) : | 30 V |
Supply voltage: | 25 V |
Mounting or package: | screw |
Frequency bands: | VHF |
Order code: | BLV31 |
---|---|
![]() |
Silicon NPN RF power transistor Philips BLV31 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 7 W |
Dissipated power (Ptot): | 48 W |
Collector current (Ic max): | 6 A |
Collector-emitter voltage (Vce max) : | 30 V |
Supply voltage: | 25 V |
Mounting or package: | screw |
Frequency bands: | VHF |
Order code: | BLV45-12 |
---|---|
![]() |
Silicon NPN RF power transistor Philips BLV45/12 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 45 W |
Dissipated power (Ptot): | 90 W |
Collector current (Ic max): | 9 A |
Collector-emitter voltage (Vce max) : | 16.5 V |
Supply voltage: | 12.5 V |
Mounting or package: | flange |
Frequency bands: | VHF |
Order code: | BLV57 |
---|---|
![]() |
Silicon NPN linear push-pull RF power transistor Philips BLV57 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 12 W |
Dissipated power (Ptot): | 77 W |
Collector current (Ic max): | 2 A |
Collector-emitter voltage (Vce max) : | 27 V |
Supply voltage: | 25 V |
Mounting or package: | flange |
Frequency bands: | UHF |
Order code: | BLV859 |
---|---|
![]() |
Double silicon NPN linear push-pull RF power transistor Philips BLV859 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 20 W |
Dissipated power (Ptot): | 145 W |
Collector current (Ic max): | 15 A |
Collector-emitter voltage (Vce max) : | 28 V |
Supply voltage: | 25 V |
Mounting or package: | flange |
Frequency bands: | UHF |
Order code: | BLV958 |
---|---|
![]() |
Silicon NPN RF power transistor Philips BLV958 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 75 W |
Dissipated power (Ptot): | 250 W |
Collector current (Ic max): | 15 A |
Collector-emitter voltage (Vce max) : | 30 V |
Supply voltage: | 26 V |
Mounting or package: | flange |
Frequency bands: | UHF |
Order code: | BLW33 |
---|---|
![]() |
Silicon NPN linear RF power transistor Philips BLW33 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 1.15 W |
Dissipated power (Ptot): | 19.3 W |
Collector current (Ic max): | 1.25 A |
Collector-emitter voltage (Vce max) : | 30 V |
Supply voltage: | 25 V |
Mounting or package: | screw |
Frequency bands: | UHF |
Order code: | BLW79 |
---|---|
![]() |
Silicon NPN RF power transistor Philips BLW79 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 2 W |
Dissipated power (Ptot): | 8.5 W |
Collector current (Ic max): | 500 mA |
Collector-emitter voltage (Vce max) : | 17 V |
Supply voltage: | 12.5 V |
Mounting or package: | screw |
Frequency bands: | UHF, VHF |
Order code: | BLW82F |
---|---|
![]() |
Silicon NPN RF power transistor Philips BLW82F |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 30 W |
Dissipated power (Ptot): | 100 W |
Collector current (Ic max): | 7 A |
Collector-emitter voltage (Vce max) : | 17 V |
Supply voltage: | 12.5 V |
Mounting or package: | flange |
Frequency bands: | UHF |
Order code: | BLW898 |
---|---|
![]() |
Silicon NPN linear RF power transistor Philips BLW898 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 3 W |
Dissipated power (Ptot): | 44 W |
Collector current (Ic max): | 3.7 A |
Collector-emitter voltage (Vce max) : | 28 V |
Supply voltage: | 25 V |
Mounting or package: | flange |
Frequency bands: | UHF |
Order code: | BLX91 |
---|---|
![]() |
Silicon NPN RF power transistor Philips BLX91 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 1.4 W |
Dissipated power (Ptot): | 4 W |
Collector current (Ic max): | 400 mA |
Collector-emitter voltage (Vce max) : | 33 V |
Supply voltage: | 24 V |
Mounting or package: | screw |
Frequency bands: | UHF |
Order code: | BLX91CB |
---|---|
![]() |
Silicon bipolar NPN RF transistor, SOT-48/3 Philips BLX91CB |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Dissipated power (Ptot): | 4 W |
Collector current (Ic max): | 400 mA |
Collector-emitter voltage (Vce max) : | 33 V |
Mounting or package: | screw |
Frequency bands: | UHF |
Order code: | BLY33 |
---|---|
![]() |

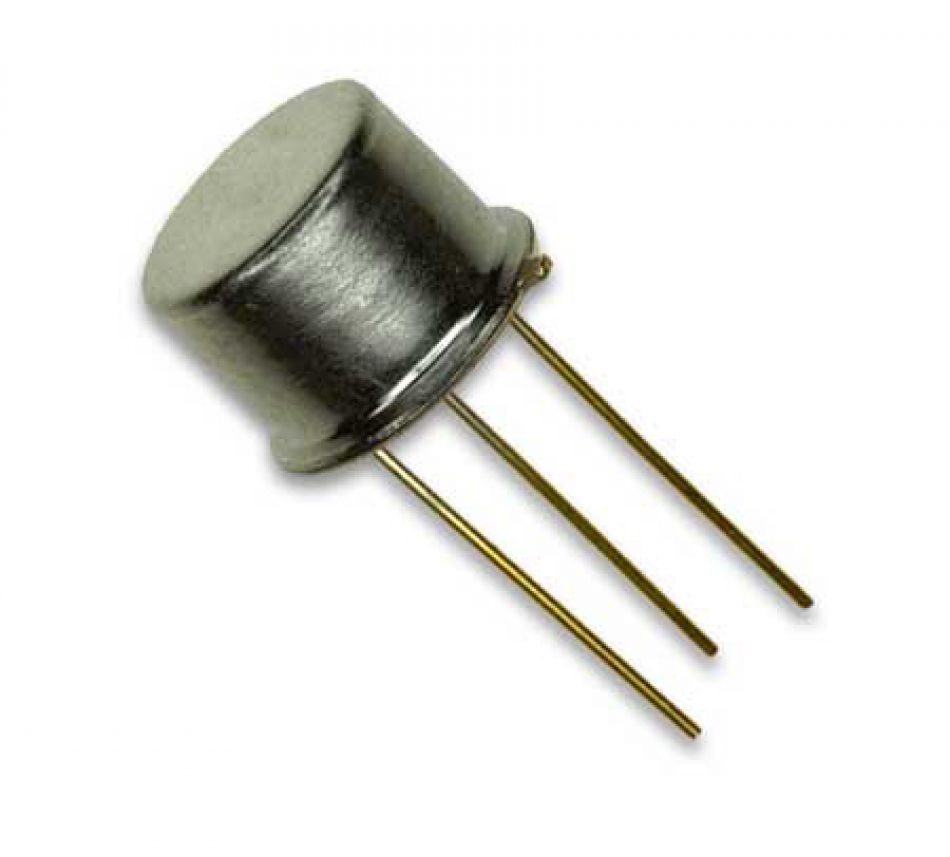

Silicon NPN RF power transistor, TO-39 Philips BLY33 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 2 W |
Dissipated power (Ptot): | 5 W |
Collector current (Ic max): | 1.5 A |
Collector-emitter voltage (Vce max) : | 33 V |
Supply voltage: | 13.8 V |
Mounting or package: | TO-39 |
Frequency bands: | VHF |
Order code: | BLY87A |
---|---|
![]() |
Silicon NPN RF power transistor Philips BLY87A |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 10 W |
Dissipated power (Ptot): | 17.5 W |
Collector current (Ic max): | 1.25 A |
Collector-emitter voltage (Vce max) : | 18 V |
Supply voltage: | 13.5 V |
Mounting or package: | screw |
Frequency bands: | HF, VHF |
Order code: | LLE18010X |
---|---|
![]() |
Silicon NPN linear RF power transistor Philips LLE18010X |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 1 W |
Dissipated power (Ptot): | 4.5 W |
Collector current (Ic max): | 250 mA |
Collector-emitter voltage (Vce max) : | 15 V |
Supply voltage: | 24 V |
Mounting or package: | flange |
Frequency bands: | 2.0 GHz |
Order code: | LLE18300X |
---|---|
![]() |
Silicon NPN linear RF power transistor Philips LLE18300X |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 27 W |
Dissipated power (Ptot): | 50 W |
Collector current (Ic max): | 6 A |
Collector-emitter voltage (Vce max) : | 15 V |
Supply voltage: | 24 V |
Mounting or package: | flange |
Frequency bands: | 2.0 GHz |
Order code: | MRF247 |
---|---|
![]() |
Silicon NPN RF power transistor Motorola MRF247 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 75 W |
Dissipated power (Ptot): | 250 W |
Collector current (Ic max): | 20 A |
Collector-emitter voltage (Vce max) : | 18 V |
Supply voltage: | 12.5 V |
Mounting or package: | flange |
Frequency bands: | VHF |
Order code: | MRF326 |
---|---|
![]() |
Silicon NPN RF power transistor Motorola MRF326 |
Conditions: | N- (The product is brand new but it comes from an old production) |
Polarity: | NPN |
Output power: | 40 W |
Dissipated power (Ptot): | 110 W |
Collector current (Ic max): | 4.5 A |
Collector-emitter voltage (Vce max) : | 33 V |
Supply voltage: | 28 V |
Mounting or package: | flange |
Frequency bands: | UHF, VHF |
