on sale -60%
Warning! The shop is closed at the moment, order dispatching will restart from Monday 22 August 2022.
Brand: Temex
Manufacturer code: AT27263
Order code: CVG-Z5

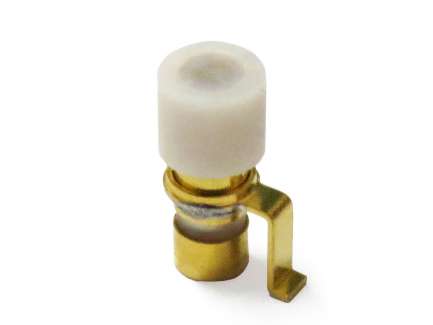

Sapphire variable capacitor, 0.3 - 1.2 pF, 500V
Product conditions: N
$17.61
$7.04
/ pc
(VAT tax not included)
| Availability | |
|---|---|
| Stock (immediate dispatch) |
3157 pcs |
| Volume discounts | ||
|---|---|---|
| Quantity | Unit Price | You save |
| 1+ | $7.04 | - |
| 4+ | $6.72 | 5% |
| 10+ | $6.43 | 9% |
| 30+ | $6.03 | 14% |
| 100+ | $5.62 | 20% |
| 250+ | $5.21 | 26% |
| 500+ | $4.80 | 32% |
| 1000+ | $4.40 | 38% |
(VAT tax not included) |
||
| Compliance | |
|---|---|
| EU Tariff Code | 85323000 |
| Weight | 1.00 g |
| RoHS | No |
| REACH | Not available |
-
0.3 pF
-
1.2 pF
-
500 V
-
> 5000 @ 250 MHz
-
vertical
-
SMD
Sapphire variable capacitor, 0.3 - 1.2 pF, 500V
TECHNICAL SPECIFICATIONS
| Capacity range | typical 0.2 - 1.5 pF |
| rated 0.3 - 1.2 pF | |
| Q @ 250 MHz | > 5000 |
| Q @ 1 GHz typical | > 1000 |
| Self resonation freqency SRF | 12 GHz typical |
| Tuning resolution | Very fine, at least 4 turns |
| Size (mm) | Ø 1.9, H = 5.8, L = 1.9 |
| Cross reference, comparison with other manufacturer products | Microelectronics MTR521C |
| Voltronics P1F | |
| Insulation | Sapphire |
| Voltage | 500V operating |
| 1000V testing | |
| 1500V breaking | |
| Contact resistance | < 0.01 Ω low dynamic noise |
| Insulation resistance | > 1000 GΩ @ 500V |
| Life | At least 800 rotation |
| Temperature stability | NP0 (0 +/-50ppm/°C) |
| Vibration and shock | 60g 10 - 2000 Hz, 100g 6mS |
| Operating temperature | -50 / +125 °C |
