Brand: Siemens
Manufacturer code: BFW30
Order code: BFW30

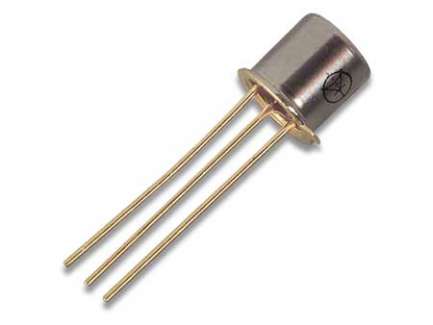

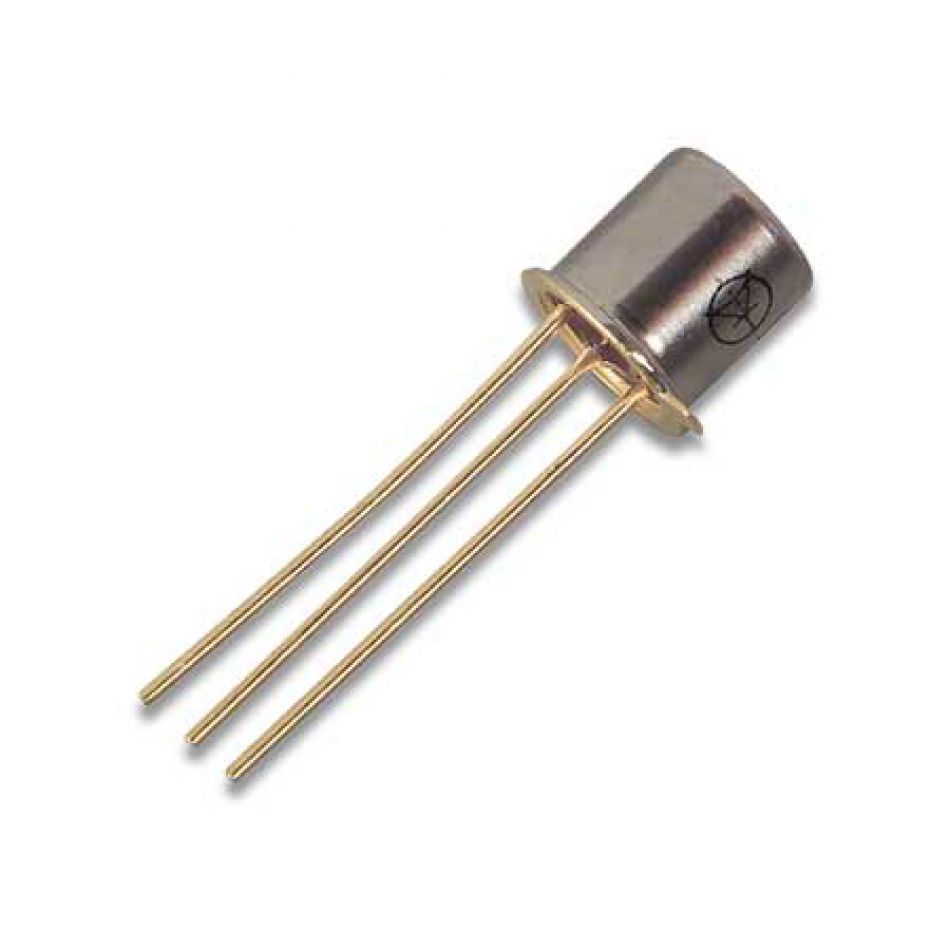

Silicon bipolar NPN RF transistor, TO-72

Product conditions: N-
$2.74
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
2960 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $2.74 $2.74
5+ $2.61 $13.03
10+ $2.52 $25.18
50+ $2.43 $121.51
100+ $2.38 $237.51
250+ $2.31 $577.29
500+ $2.13 $1,066.61
1000+ $2.06 $2,056.25
(VAT tax not included)
Compliance
Weight 0.40 g
RoHS No
REACH Not available
  • NPN
  • 10 V
  • 1.6 GHz
  • 50 mA
  • 250 mW
  • thru-hole
  • TO-72
  • metallic

Silicon bipolar NPN RF transistor, TO-72

Silicon bipolar NPN RF transistor

SPECIFICATIONS:

  • Transition frequency (fT): 1.6 GHz
  • Collector current (IC): 50mA
  • Power gain: 21dB @ 200 MHz
  • Noise figure: 2.1dB @ 200 MHz
  • Total power dissipation: 250mW
  • Package: TO-72 metallic

This transistor was designed for professional purposes as wide band amplifier and for instrumentations, but also for high dynamic TV amplification.

For general purpose applications up to 1 GHz thanks to the metallic package and HF and VHF high gain

CLASS A:

  • Frequency Bands: I, II, III, IV, V
  • Class A output level: 100mV, IC 30mA
BFW30
/
Transistors - BJT
  Title Dimension
Datasheet 64.4 kB
