NBB-300-T1 - GaAs MMIC ultrabroadband amplifier, ceramic Micro-X

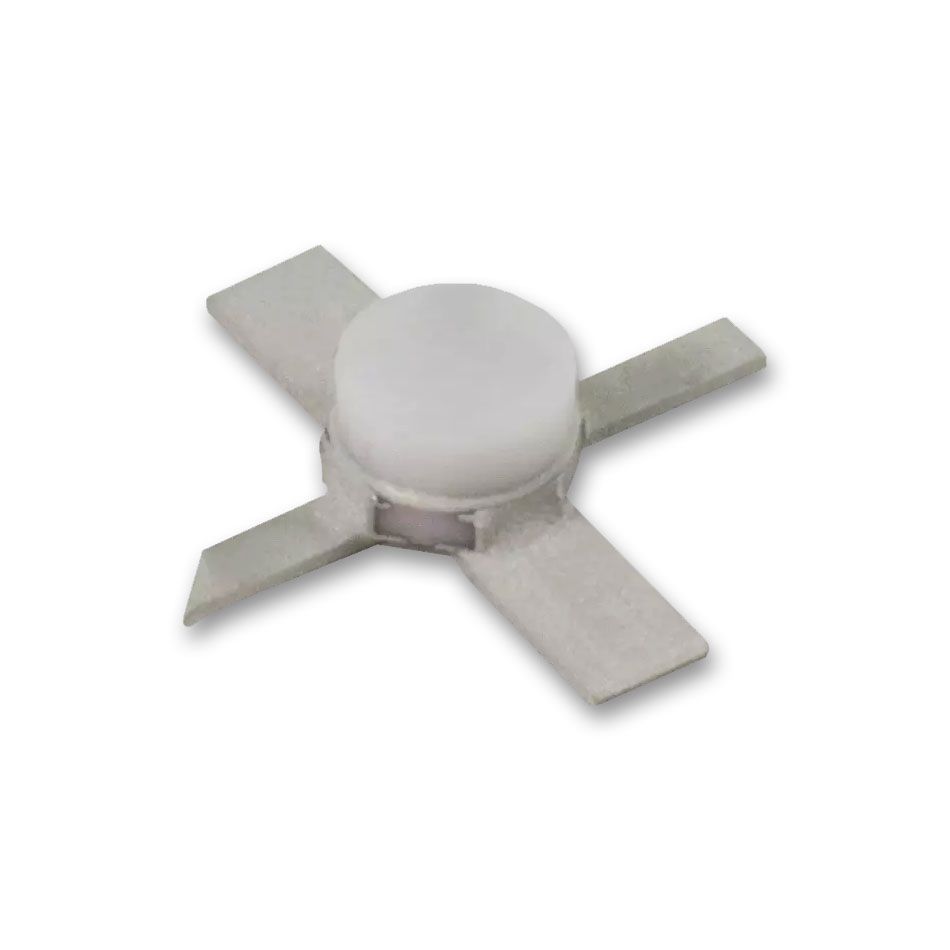

Name: GaAs MMIC ultrabroadband amplifier, ceramic Micro-X
Brand: RF Micro Devices
SKU: NBB-300
Price: 14.65 EUR
Availability: InStock

Order code: NBB-300Brand: RF Micro DevicesManufacturer code: NBB-300-T1Category: MMIC, RFIC and hybrid amplifiers

Condizioni del prodotto: N-

Available in stock

776 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$17.01 /pcs

$17.01

Prices

Q.ty Price each Extended price

1+ $17.01 $17.01

10+ $14.91 $149.11

25+ $13.37 $334.16

50+ $11.75 $587.62

100+ $10.53 $1,053.30

250+ $8.69 $2,171.63

500+ $7.34 $3,669.71

Immediate availability

Dedicated technical support

Secure SSL payments

This MMIC is maybe unique for its so wide bandwidth, in fact it is specified from dc to 14 GHz and matched at 50 Ohm.

It has a microwave ceramic package and it is used as medium gain amplifier for linear class applications.

GAIN:
- 13 dB @ 100 MHz
- 13 dB @ 4 GHz
- 11 dB @ 6 GHz
- 9.5 dB @ 12 GHz
- 8 dB @ 14 GHz

Application note

Specifications

Min. frequency:
0 Hz
Max. frequency:
14 GHz
Operating voltage:
3.9 V
Operating current:
50 mA
Dissipated power:
300 mW
Gain (max.):
13 dB
Output power (max.):
13 dBm
Noise figure (min.):
5.1 dB
Package:
micro-X
Mounting:
SMD

Datasheet

PDF · 561.3 kB

View

Compliance

Country of origin:
US
EU Tariff Code:
85423390
Weight:
1.00 g
RoHS:
Yes
REACH:
SVHC not present
