Brand: Coilcraft
Manufacturer code: 150-03J08SL
Order code: BV-150-03A

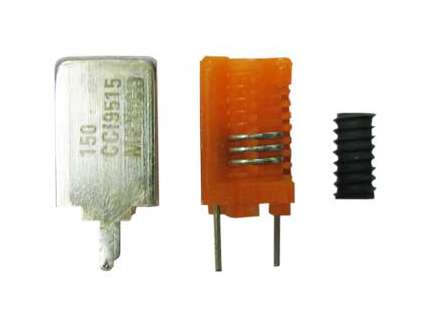

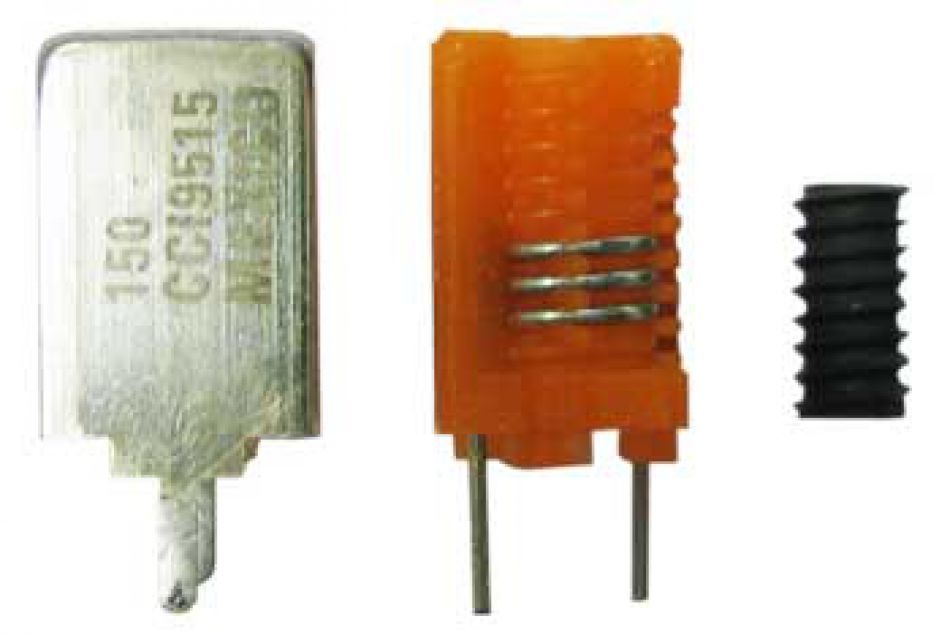

Tunable RF coil, 46 - 60nH, 7mm

Product conditions: N-
$2.23
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
1466 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $2.23 $2.23
10+ $2.09 $20.91
25+ $1.95 $48.75
50+ $1.85 $92.63
100+ $1.77 $176.59
250+ $1.68 $419.82
(VAT tax not included)
  • 46 nH
  • 60 nH
  • 3½ turns
  • 80
  • 50 MHz
  • inductor
  • thru-hole
  • 7 mm
  • 14 mm
  • Yes

Tunable RF coil, 46 - 60nH, 7mm

Q > 80 (53 nH at 50 MHz), molded type, for VHF, high quality and high Q, SRF > 1 GHz, Rdc 0.01 Ω

Equivalent circuit

This coil can be used to build band-pass filters in the frequency range of 180 to 280 MHz, see here the detailed explanation

Example of assembly for the construction of a band-pass filter

BV-150-03A
/
Tunable RF coils
  Title Dimension
Datasheet 222.5 kB
EU Tariff Code 85045000
Weight 2.00 g
RoHS No
REACH Not available
