Zero capacity pass-through and standoff insulators

Soldering zero cap feed-through support

Order code:	PCZ-A01
	Soldering zero cap feed-through support
Conditions:	N- (The product is brand new but it comes from an old production)
Withstanding voltage (DC):	600 V
Withstanding voltage (AC):	250 V
Dielectric:	glass
Mounting:	solder
Style:	feed-through
Drilling diameter:	4.2 mm
Terminal 1 style:	lead
Terminal 2 style:	lead

Go to product page PCZ-A01

Soldering zero cap miniature feed-through support

Order code:	PCZ-A02
	Soldering zero cap miniature feed-through support
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	400 V
Withstanding voltage (AC):	200 V
Dielectric:	glass
Mounting:	solder
Style:	feed-through
Drilling diameter:	2 mm
Terminal 1 style:	pad
Terminal 2 style:	lead

Go to product page PCZ-A02

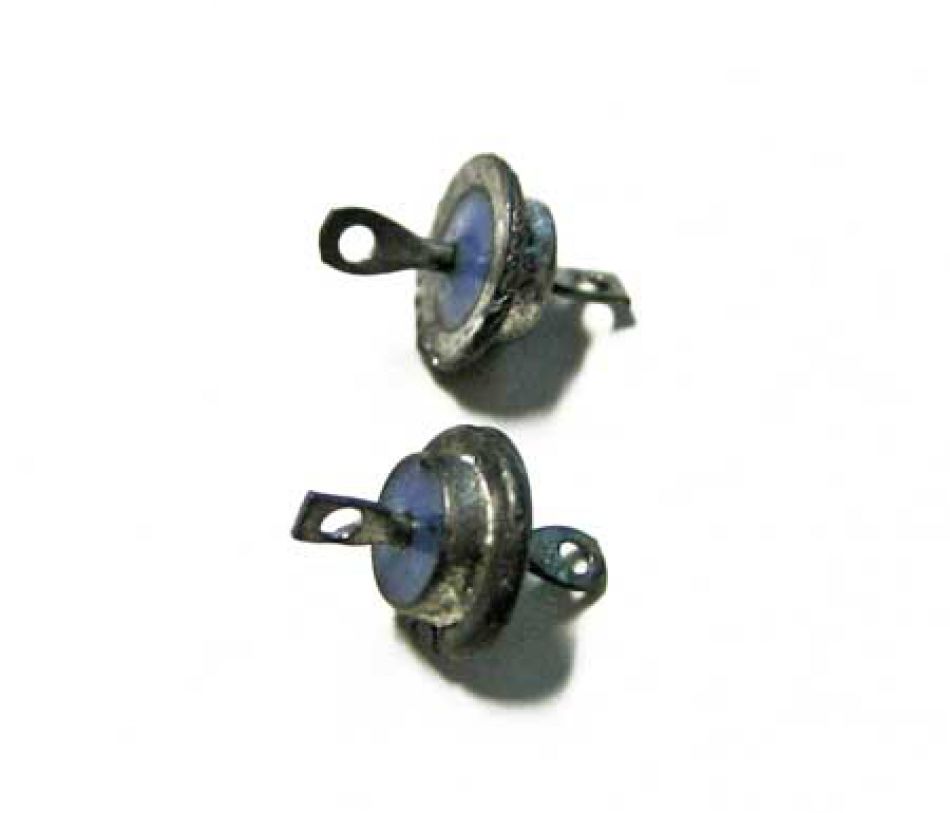

Soldering zero cap feed-through support

Order code:	PCZ-A03
	Soldering zero cap feed-through support
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	2 kV
Withstanding voltage (AC):	1 kV
Dielectric:	glass
Mounting:	solder
Style:	feed-through
Drilling diameter:	5.5 mm
Terminal 1 style:	eyelet
Terminal 2 style:	eyelet

Go to product page PCZ-A03

Soldering zero cap feed-through support

Order code:	PCZ-A04
	Soldering zero cap feed-through support
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	500 V
Withstanding voltage (AC):	220 V
Dielectric:	glass
Mounting:	solder
Style:	feed-through
Drilling diameter:	3.9 mm
Terminal 1 style:	lead
Terminal 2 style:	lead

Go to product page PCZ-A04

Soldering zero cap feed-through support

Order code:	PCZ-A05
	Soldering zero cap feed-through support
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	4 kV
Withstanding voltage (AC):	2.5 kV
Dielectric:	porcelain
Mounting:	solder
Style:	feed-through
Drilling diameter:	6.5 mm
Terminal 1 style:	eyelet
Terminal 2 style:	eyelet

Go to product page PCZ-A05

Soldering zero cap feed-through support

Order code:	PCZ-A06
	Soldering zero cap feed-through support
Conditions:	N- (The product is brand new but it comes from an old production)
Withstanding voltage (DC):	300 V
Withstanding voltage (AC):	100 V
Dielectric:	glass
Mounting:	solder
Style:	feed-through
Drilling diameter:	2.6 mm
Terminal 1 style:	lead
Terminal 2 style:	lead

Go to product page PCZ-A06

Soldering zero cap feed-through support

Order code:	PCZ-A07
	Soldering zero cap feed-through support
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	600 V
Withstanding voltage (AC):	250 V
Dielectric:	glass
Mounting:	solder
Style:	feed-through
Drilling diameter:	4 mm
Terminal 1 style:	eyelet
Terminal 2 style:	lead

Go to product page PCZ-A07

Zero cap snap-on feed-through support

Order code:	PCZ-B01
	Zero cap snap-on feed-through support
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	300 V
Withstanding voltage (AC):	150 V
Dielectric:	polystyrene
Mounting:	snap-on
Style:	feed-through
Drilling diameter:	3.2 mm
Terminal 1 style:	lead
Terminal 2 style:	lead

Go to product page PCZ-B01

Zero cap snap-on feed-through support

Order code:	PCZ-B04
	Zero cap snap-on feed-through support Litton 4500B
Conditions:	N (The product is brand new)
Withstanding voltage (AC):	3 kV
Dielectric:	PTFE
Mounting:	snap-on
Style:	feed-through
Drilling diameter:	4 mm
Terminal 1 style:	turret
Terminal 2 style:	lead

Go to product page PCZ-B04

Ceramic stand-off Ø 4 x 7 mm

Order code:	PCZ-C01
	Ceramic stand-off Ø 4 x 7 mm
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	3.5 kV
Withstanding voltage (AC):	2 kV
Dielectric:	ceramic
Mounting:	solder
Style:	stand-off
Terminal 1 style:	pad
Terminal 2 style:	pad

Go to product page PCZ-C01

Ceramic stand-off Ø 5 x 12 mm

Order code:	PCZ-C02
	Ceramic stand-off Ø 5 x 12 mm
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	7 kV
Withstanding voltage (AC):	4 kV
Dielectric:	ceramic
Mounting:	solder
Style:	stand-off
Terminal 1 style:	pad
Terminal 2 style:	pad

Go to product page PCZ-C02

Soldering zero cap feed-through support

Order code:	PCZ-E01
	Soldering zero cap feed-through support
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	1.5 kV
Withstanding voltage (AC):	800 V
Dielectric:	ceramic
Mounting:	solder
Style:	feed-through
Terminal 1 style:	lead
Terminal 2 style:	lead

Go to product page PCZ-E01

Snap-on insulated stand-off

Order code:	PCZ-F01
	Snap-on insulated stand-off
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	1.8 kV
Withstanding voltage (AC):	1 kV
Dielectric:	PTFE
Mounting:	snap-on
Style:	stand-off
Drilling diameter:	3 mm
Terminal 1 style:	turret

Go to product page PCZ-F01

Snap-on insulated stand-off

Order code:	PCZ-F02
	Snap-on insulated stand-off
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	1.8 kV
Withstanding voltage (AC):	1 kV
Dielectric:	PTFE
Mounting:	snap-on
Style:	stand-off
Drilling diameter:	3.5 mm
Terminal 1 style:	lead

Go to product page PCZ-F02

Soldering zero cap feed-through support

Order code:	PCZ-G02
	Soldering zero cap feed-through support
Conditions:	N (The product is brand new)
Withstanding voltage (DC):	1 kV
Withstanding voltage (AC):	600 V
Dielectric:	porcelain
Mounting:	solder
Style:	feed-through
Drilling diameter:	4.7 mm

Go to product page PCZ-G02
