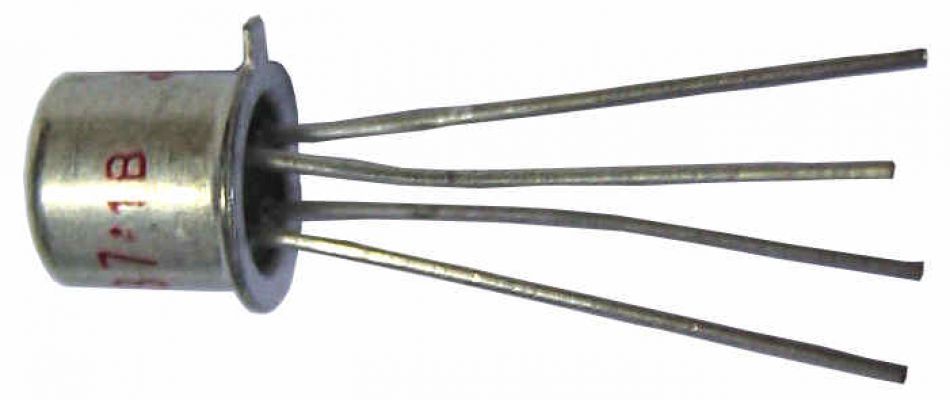

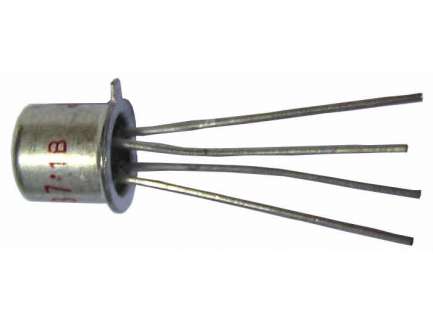

2SC787 TOSHIBA
|
|
|---|---|
|
|
-
NPN
-
20 V
-
1 GHz
-
20 mA
-
150 mW
-
thru-hole
-
TO-72
-
metallic
| Title | Dimension | ||
|---|---|---|---|
| Datasheet | 77.7 kB |
2SC787 is a IF/RF/VHF/UHF transistor, it is not very well known in Europe because it is manufactured in Japan from Toshiba. Its specifications are quite similar to other types made in Europe like BFY90, BFX89, BF199, BF183, BF377, BF378, etc..., and other types made in USA like 2N3904, etc... Some common applications are: oscillator circuits from HF to UHF and general purpose IF/RF/VHF/UHF amplifiers.
It is also a good alternative to the obsolete BFY90, it can be used in any general purpose signal applications. Below there is quick comparison table among 2SC787, BFY90 and BF183
| 2SC787 | BFY90 | BF183 | |
| IC (max) | 20mA | 25mA | 20mA |
| Ptot | 150mW | 200mW | 150mW |
| fT | 1 GHz @ 2mA | 1.1 GHz @ 2mA | 800 MHz @ 2mA |
| hFE | > 25 | > 25 | > 10 |
| Gain | 11dB @ 800 MHz | 8dB @ 800 MHz | 14dB @ 900 MHz |
| Cre | 0.3pF | 0.6pF | 0.3pF |
| Package | TO-72 metal | ||
-
JP
-
0.25 g
-
No
-
Not available
| Availability | |
|---|---|
| Stock (immediate dispatch) |
1000 pcs |
Immediate availability |
Dedicated technical support |
| Cart | |
|---|---|
|
Minimum: 1000 pcs -
Multiple: 1 pc Unit Price:
$0.15
/ pc
Ext. price:
$149.07
(VAT tax not included) |
|
Secure SSL payments |
Fast shipping |
| Prices | ||
|---|---|---|
| Q.ty | Unit Price | Ext. price |
| 1000+ | $0.15 | $149.07 |
| Log-in to request an offer | ||
(VAT tax not included) |
||
