Brand: Tangshan
Manufacturer code: TP0000
Order code: Q-8M9985

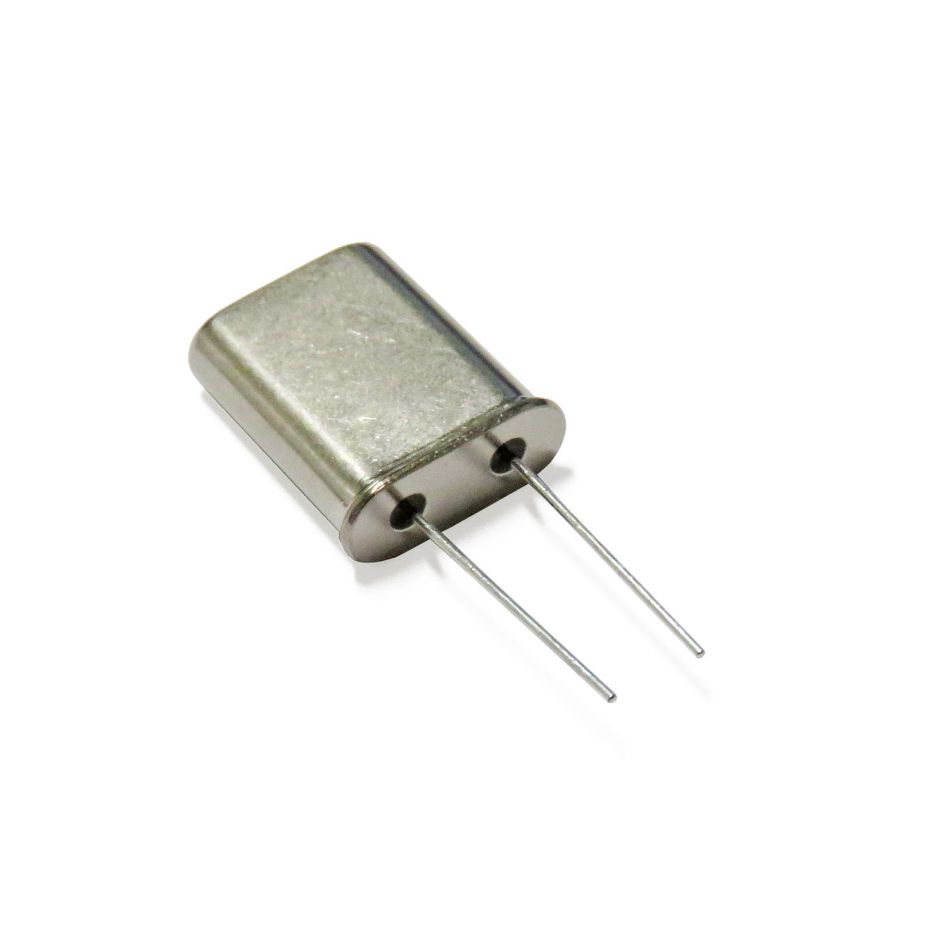

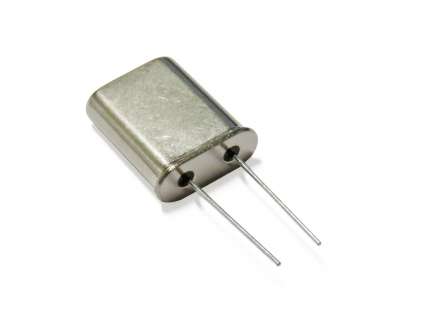

Crystal unit, 8.9985 MHz, HC-49/U

Product conditions: N
$1.46
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
391 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $1.46 $1.46
4+ $1.35 $5.41
10+ $1.25 $12.45
25+ $1.14 $28.42
50+ $1.03 $51.43
100+ $0.92 $92.04
(VAT tax not included)
Compliance
Country of origin CN
EU Tariff Code 85416000
Weight 1.00 g
RoHS Yes
REACH Not available
  • 8.9985 MHz
  • 30 pF
  • fundamental
  • 40 ppm
  • HC-49/U
  • thru-hole
  • 11 mm
  • 14 mm

Crystal unit, 8.9985 MHz, HC-49/U

Suitable for filters and LSB

TECHNICAL PARAMETERS:
- CL: 30 pF
- C0: <7 pF
- RR: <35 Ω
- CAL.TOL.:  ±25 ppm @ 25 °C
- IR: ≥500 MΩ
- TEM.TOL.: ±40 ppm @ -20 / +70 °C

Q-8M9985
/
Crystals
  Title Dimension
Datasheet 258.1 kB
