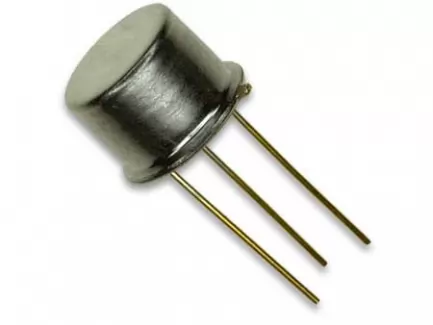

Silicon NPN RF transistor, TO-39

Name: Silicon NPN RF transistor, TO-39
Brand: STMicroelectronics
SKU: BFR36
Price: 2.85 EUR
Availability: InStock

Product conditions: N

$3.13

/ pc

(VAT tax not included)

Minimum: 1 pc - Multiple: 1 pc

Availability
Stock (immediate dispatch)	166 pcs

Volume discounts
Q.ty	Unit Price	Ext. price
1+	$3.13	$3.13
4+	$2.91	$11.66
10+	$2.64	$26.39
30+	$2.36	$70.92
100+	$2.09	$208.92
(VAT tax not included)

Compliance
EU Tariff Code	85412900
Weight	0.90 g
RoHS	No
REACH	Not available

Polarity:
NPN
Collector-emitter voltage (Vce max):
30 V
Transition frequency (f_T):
1.4 GHz
Collector current (Ic max):
400 mA
Dissipated power (Ptot):
800 mW
Mounting:
thru-hole
Package:
TO-39
Package type :
metallic

Silicon NPN RF transistor, TO-39

This transistor is part of the devices particularly suitable for applications such as ultra-linear RF amplifiers, in particular for HF, VHF and UHF. It has similar characteristics to the 2N5109 and BFW16A.

For example with a current of 70 mA at 200 MHz it has a noise figure of 4.5 dB and a gain of 16 dB.

Order code: BFR36

Category: Transistors - BJT

	Title	Dimension
	Datasheet	442.7 kB
