SAW (Surface Acoustic Wave) filters

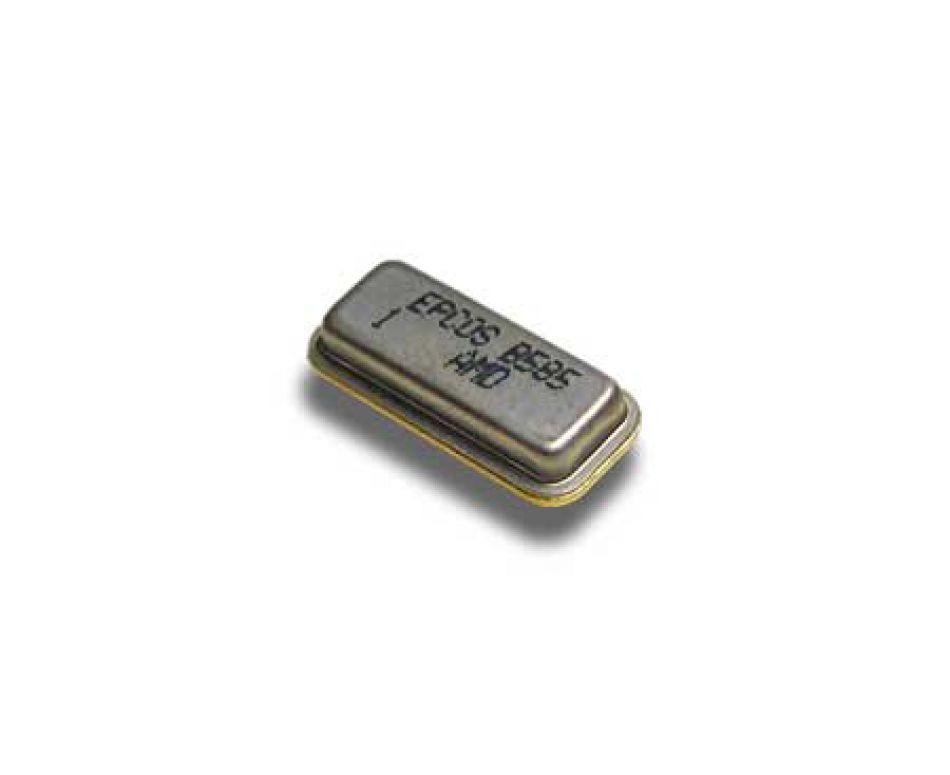

38.9 MHz band-pass SAW filter

Order code:	FW-B585
	38.9 MHz band-pass SAW filter Siemens Matsushita B39390-B585-X110
Nominal frequency:	38.9 MHz
Bandwidth (3dB):	7 MHz
Insertion loss (@ fN):	34.9 dB
Application:	TV (RX)
Package:	SIP-6M
Mounting:	thru-hole
Size:	19 x 8.6 mm

Go to product page FW-B585

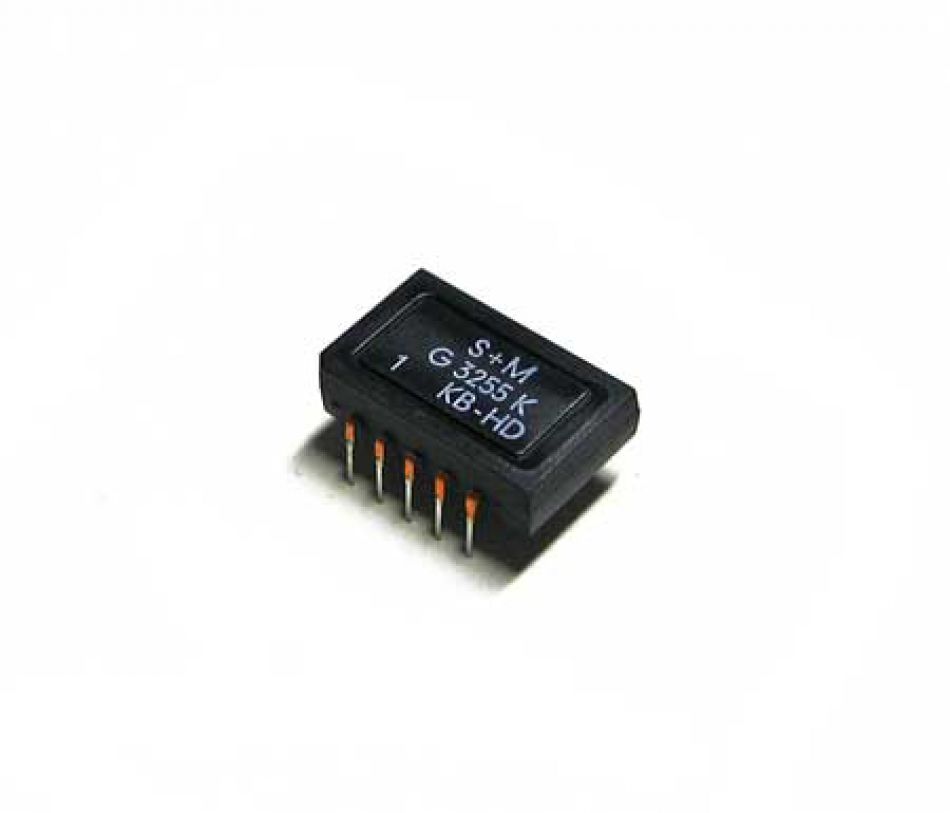

38.9 MHz double band-pass SAW filter

Order code:	FW-G3255K
	38.9 MHz double band-pass SAW filter Siemens Matsushita G3255K
Nominal frequency:	38.9 MHz
Application:	TV (RX)
Package:	DIP-9
Mounting:	thru-hole
Size:	19.4 x 11.3 mm

Go to product page FW-G3255K

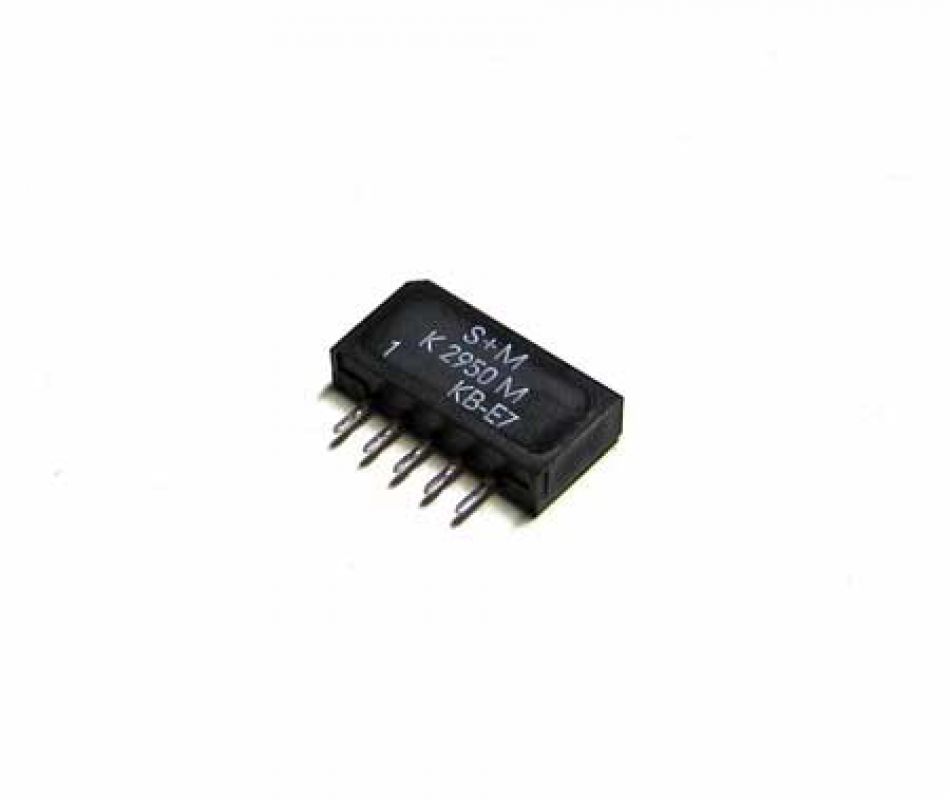

38.9 MHz band-pass SAW filter

Order code:	FW-K2950M
	38.9 MHz band-pass SAW filter Siemens Matsushita B39389-K2950-M100
Nominal frequency:	38.9 MHz
Bandwidth (3dB):	4.2 MHz
Insertion loss (@ fN):	16 dB
Application:	TV (RX)
Package:	SIP-5
Mounting:	thru-hole
Size:	17.3 x 8.7 mm

Go to product page FW-K2950M

38.9 MHz band-pass SAW filter

Order code:	FW-SWF2100
	38.9 MHz band-pass SAW filter ECC SWF2100
Nominal frequency:	38.9 MHz
Application:	TV (RX)
Package:	metal can
Mounting:	thru-hole
Size:	Ø16 mm

Go to product page FW-SWF2100

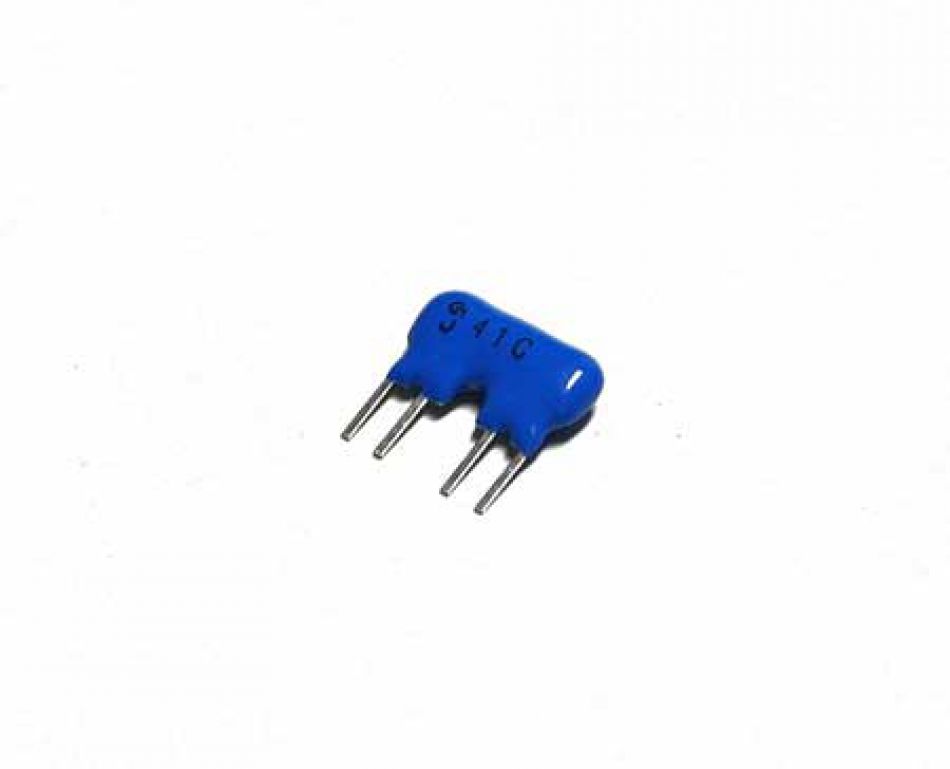

41 MHz band-pass SAW filter

Order code:	FW-SAF41
	41 MHz band-pass SAW filter muRata SAF41MC70Z
Nominal frequency:	41 MHz
Bandwidth (3dB):	500 kHz
Insertion loss (@ fN):	16 dB
Application:	SIF TV
Package:	Resin Molded SIP
Mounting:	thru-hole
Size:	14 x 10 mm

Go to product page FW-SAF41

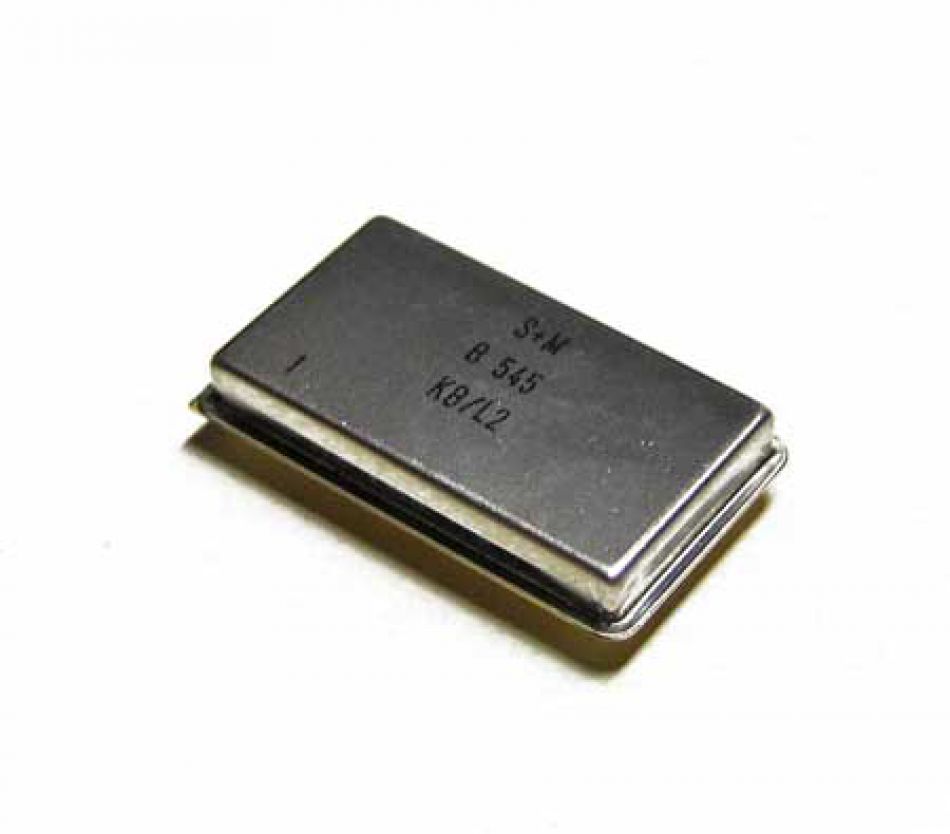

45.75 MHz band-pass SAW filter

Order code:	FW-B545
	45.75 MHz band-pass SAW filter Siemens Matsushita B39460-B545-G310
Nominal frequency:	45.75 MHz
Bandwidth (3dB):	4.9 MHz
Insertion loss (@ fN):	27.5 dB
Application:	TV (TX)
Package:	DIP-24-06
Mounting:	thru-hole
Size:	35.2 x 20.5 mm

Go to product page FW-B545

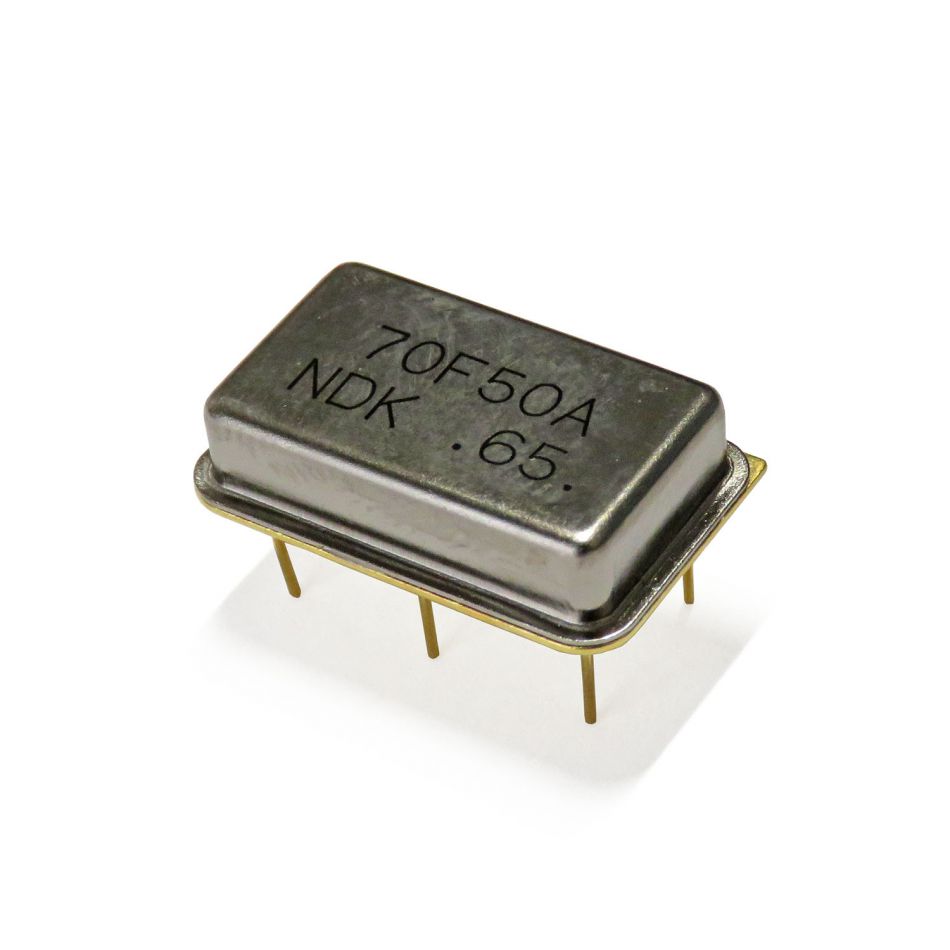

70 MHz band-pass SAW filter

Order code:	FW-70F50A
	70 MHz band-pass SAW filter NDK 70F50A
Nominal frequency:	70 MHz
Bandwidth (3dB):	2.8 MHz
Insertion loss (@ fN):	47 dB
Application:	Radio base stations, WCDMA
Package:	D-509B
Mounting:	thru-hole
Size:	20.5 x 13.3 mm

Go to product page FW-70F50A

70 MHz band-pass SAW filter

Order code:	FW-851544
	70 MHz band-pass SAW filter Sawtek Inc 851544
Nominal frequency:	70 MHz
Bandwidth (3dB):	1.26 MHz
Insertion loss (@ fN):	21.5 dB
Application:	Radio base stations, WCDMA
Package:	Style O
Mounting:	thru-hole
Size:	12.6 x 7.2 mm

Go to product page FW-851544

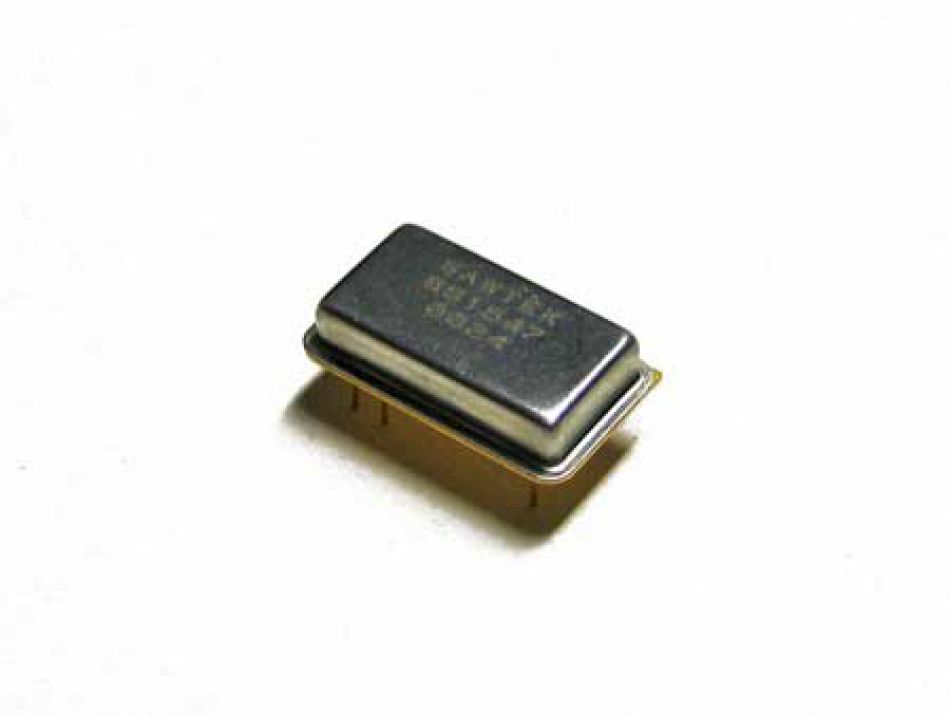

70 MHz band-pass SAW filter

Order code:	FW-851547
	70 MHz band-pass SAW filter Sawtek Inc 851547
Nominal frequency:	70 MHz
Bandwidth (3dB):	2.6 MHz
Insertion loss (@ fN):	25.2 dB
Application:	Radio base stations, WCDMA
Package:	Style I
Mounting:	thru-hole
Size:	22 x 12.6 mm

Go to product page FW-851547

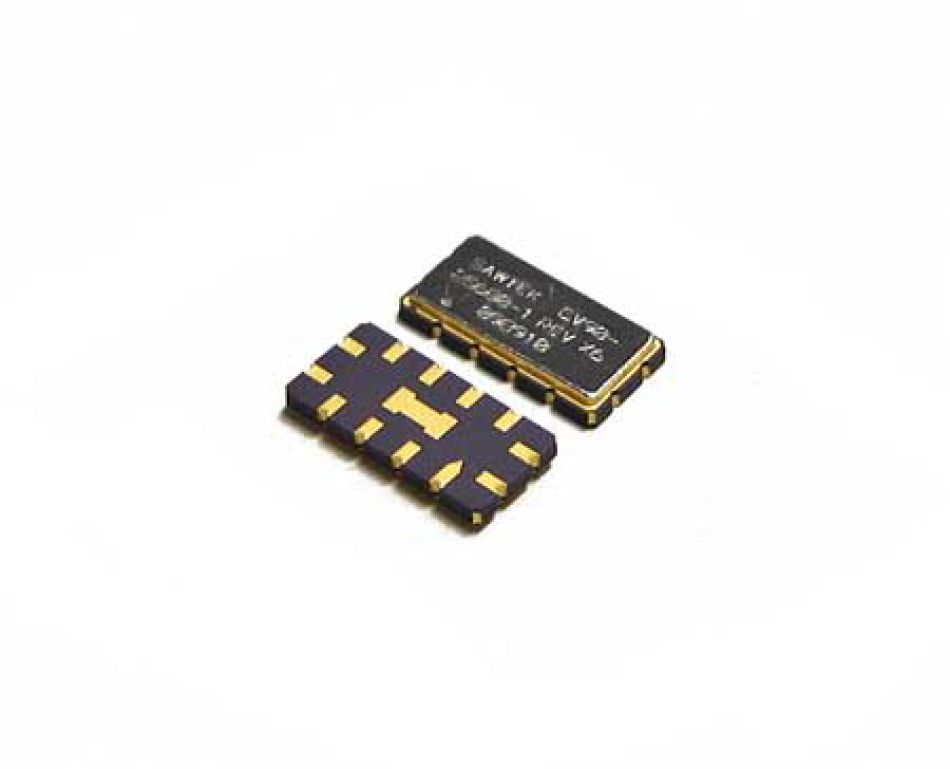

70 MHz band-pass SAW filter

Order code:	FW-854655
	70 MHz band-pass SAW filter Sawtek Inc 854655
Nominal frequency:	70 MHz
Bandwidth (3dB):	2.59 MHz
Insertion loss (@ fN):	8.75 dB
Application:	Radio base stations, WCDMA
Package:	SMP-75
Mounting:	SMD
Size:	19 x 6.5 mm

Go to product page FW-854655

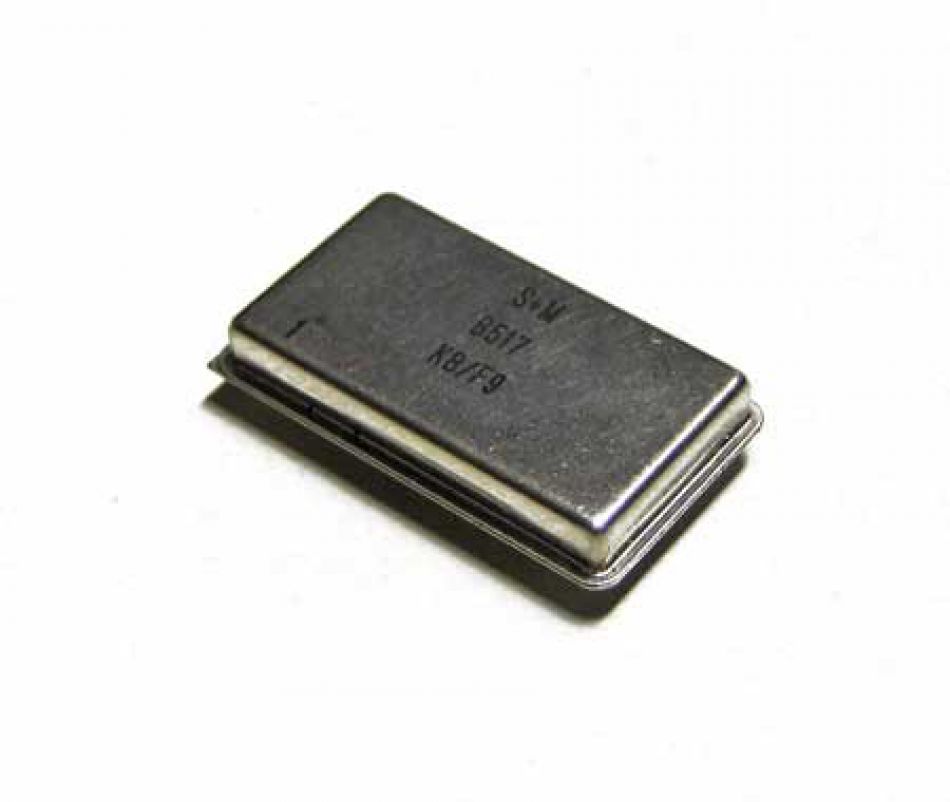

70 MHz band-pass SAW filter

Order code:	FW-B517
	70 MHz band-pass SAW filter Siemens Matsushita B517
Nominal frequency:	70 MHz
Bandwidth (3dB):	2.5 MHz
Insertion loss (@ fN):	44 dB
Application:	Radio base stations, WCDMA
Package:	DIP-24-06
Mounting:	thru-hole
Size:	35.2 x 20.5 mm

Go to product page FW-B517

70 MHz band-pass SAW filter

Order code:	FW-B518
	70 MHz band-pass SAW filter Siemens Matsushita B518
Nominal frequency:	70 MHz
Bandwidth (3dB):	5.5 MHz
Insertion loss (@ fN):	55 dB
Application:	Radio base stations, WCDMA
Package:	DIP-16
Mounting:	thru-hole
Size:	25 x 13 mm

Go to product page FW-B518

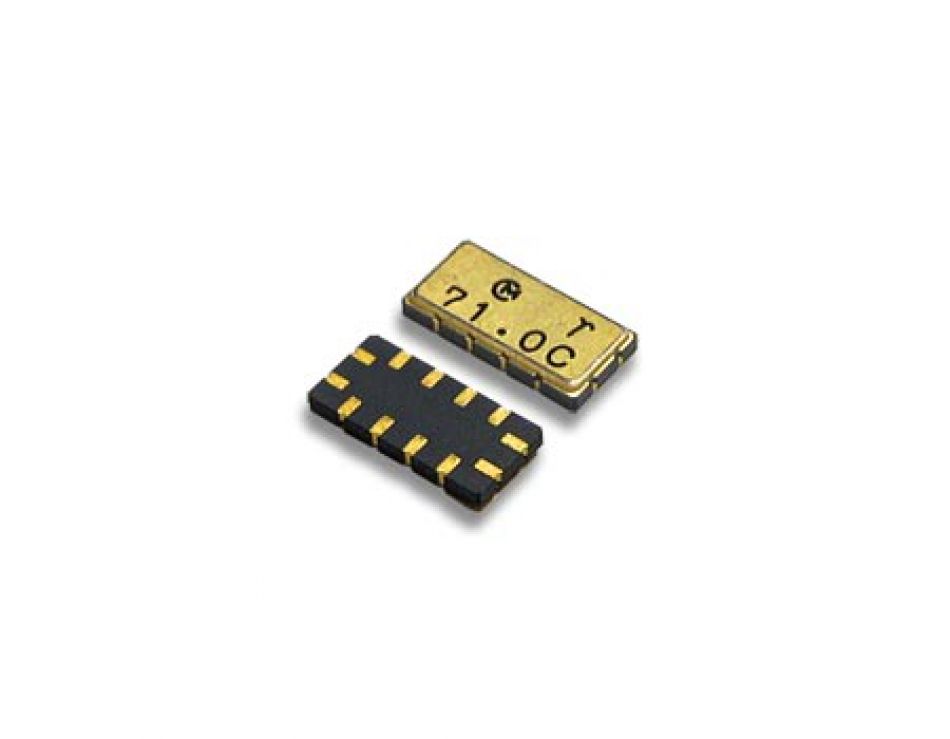

71 MHz band-pass SAW filter

Order code:	FW-SAFC71
	71 MHz band-pass SAW filter muRata SAFC71.0MC50T
Nominal frequency:	71 MHz
Bandwidth (3dB):	140 kHz
Insertion loss (@ fN):	7 dB
Application:	GSM
Package:	SC713
Mounting:	SMD
Size:	13.3 x 6.5 mm

Go to product page FW-SAFC71

83.16 MHz band-pass SAW filter

Order code:	FW-83FY4F
	83.16 MHz band-pass SAW filter NDK 83FY4F
Nominal frequency:	83.16 MHz
Bandwidth (3dB):	30 kHz
Insertion loss (@ fN):	5 dB
Application:	Cellular
Package:	D-537
Mounting:	SMD
Size:	13.3 x 6.5 mm

Go to product page FW-83FY4F

90.45 MHz band-pass SAW filter

Order code:	FW-90SDY3E
	90.45 MHz band-pass SAW filter NDK 90SDY3E
Nominal frequency:	90.45 MHz
Bandwidth (3dB):	30 kHz
Application:	General purpose
Package:	D-537
Mounting:	SMD
Size:	13.3 x 6.5 mm

Go to product page FW-90SDY3E
