Brand: Rogers Corp
Manufacturer code: RO4003C-0200-.5ED/.5ED
Order code: RO4003C-0200-05S0

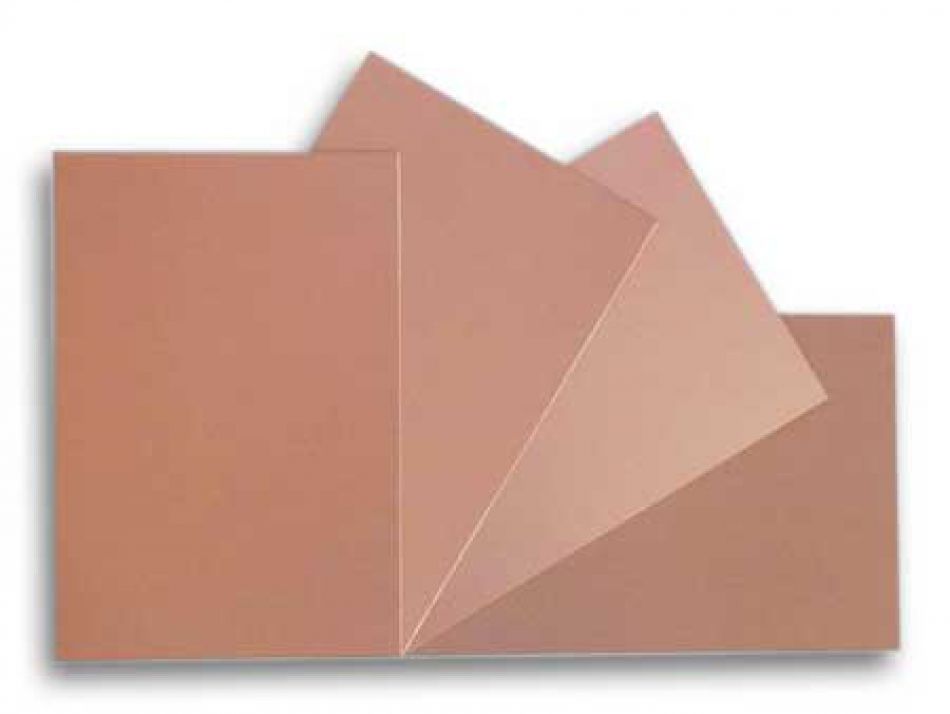

High frequency laminate RO4003C, εr=3.38, 20mils, 0.5OZ, 457x610mm

Product conditions: N
on request
Minimum: 10 pcs - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
0 pcs
Lead time
(factory standard)
5 wks.
Prezzo
Request offer
Compliance
Country of origin BE
EU Tariff Code 74102100
Weight 360.00 g
RoHS Yes
REACH SVHC not present
  • RO4003C
  • woven glass reinforced hydrocarbon/ceramics
  • 3.38
  • 0.508 mm (0.020 in)
  • 0.5 OZ
  • double sided
  • 0.0027 @ 10 GHz
  • 457 x 610 mm
  • 18 x 24 in

High frequency laminate RO4003C, εr=3.38, 20mils, 0.5OZ, 457x610mm

RO4003C™ Laminates

Rogers RO4003C materials are proprietary woven glass reinforced hydrocarbon/ceramics with the electrical performance of PTFE/woven glass and the manufacturability of epoxy/ glass.

Offered in various configurations, RO4003C laminates utilize both 1080 and 1674 glass fabric styles with all configurations meeting the same laminate electrical performance specification. RO4003C laminates provide tight control on dielectric constant (Dk) and low loss while utilizing the same processing method as standard epoxy/glass but at a fraction of the cost of conventional microwave laminates. Unlike PTFE based microwave materials, no special through-hole treatments or handling procedures are required.

RO4003C materials are non-brominated and are not UL 94 V-0 rated. For applications or designs requiring a UL 94 V-0 flame rating, RO4835™ and RO4350B™ laminates do meet this requirement.

Features

  • Dk of 3.38 +/- 0.05
  • Dissipation factor of 0.0027 @ 10 GHz
  • Low Z-axis coefficient of thermal expansion @ 46 ppm/°C

Benefits

  • Ideal for multi-layer board (MLB) constructions
  • Processes like FR-4 at lower fabrication cost
  • Designed for performance sensitive, high volume applications
  • Competitively priced
