R566944121
Brand: Radiall
Manufacturer code: R566944121
Order code: SW-16-56-02

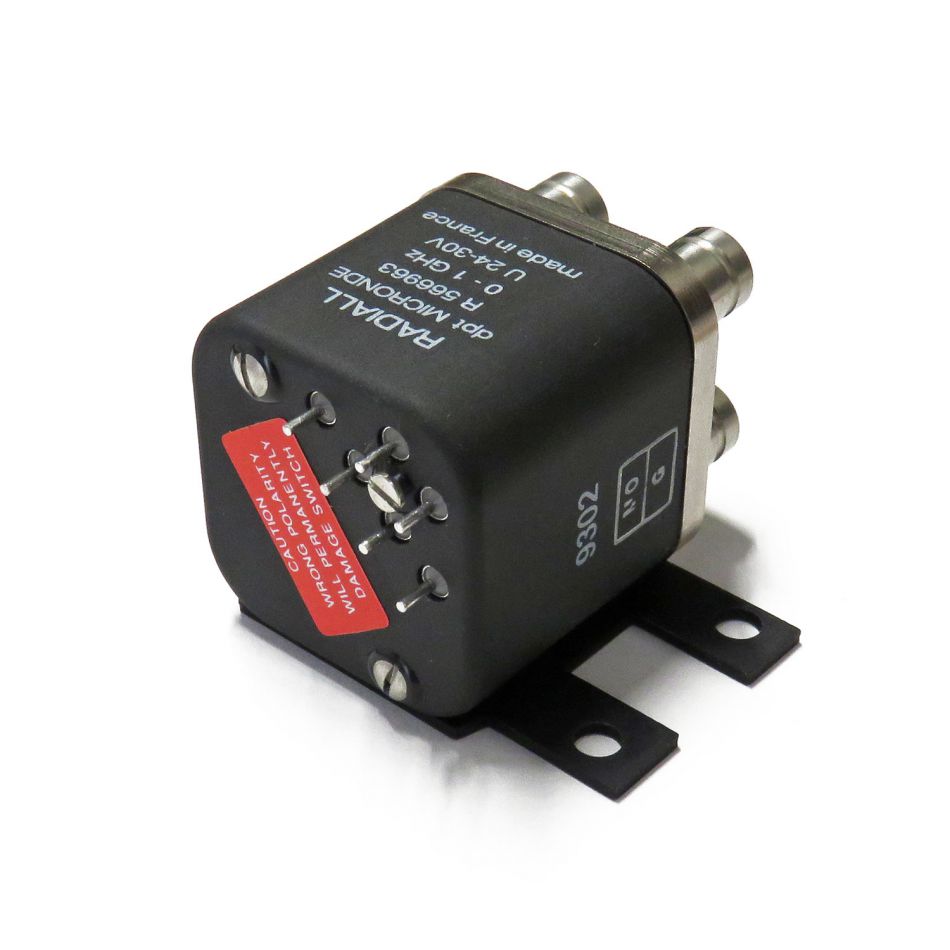

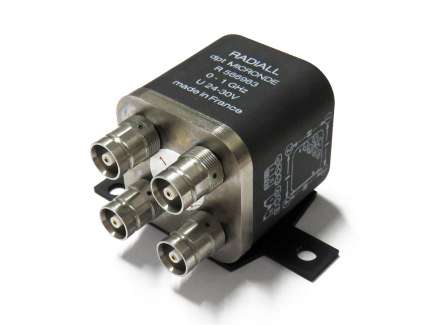

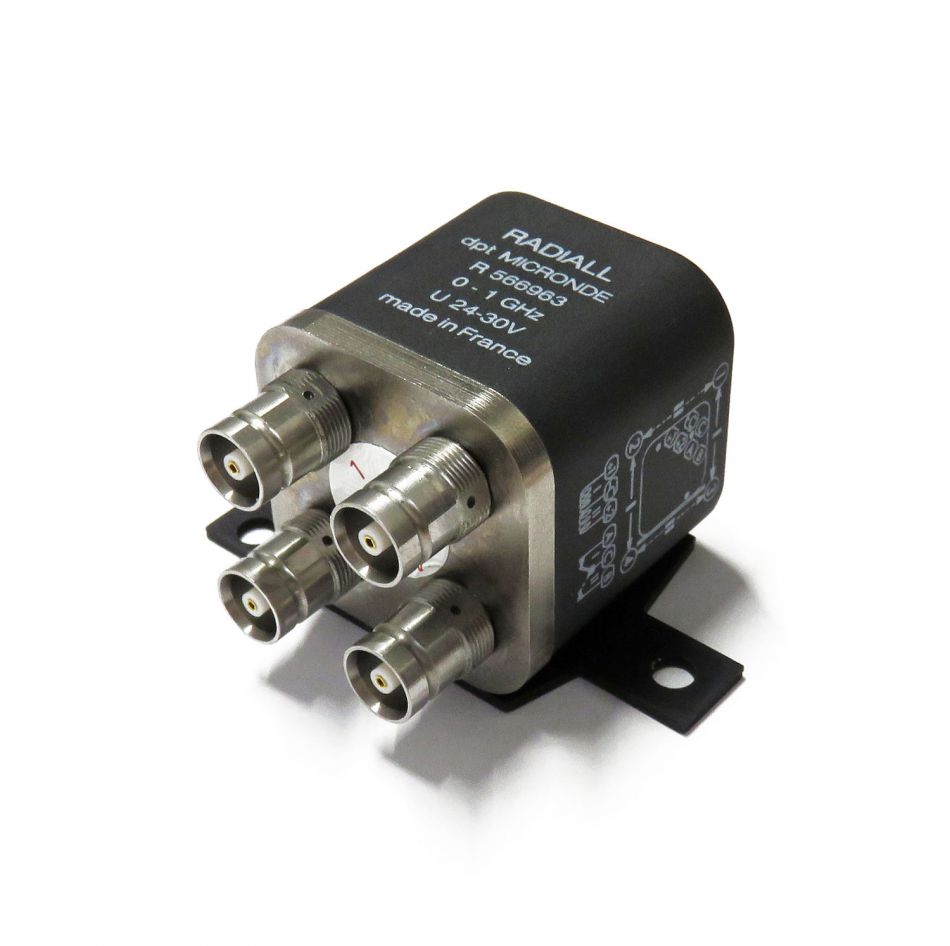

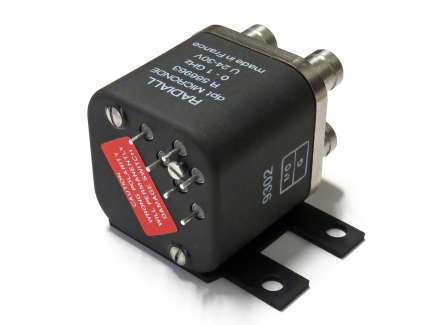

Electromechanical coaxial relay, latching, tranfer, 48V

Product conditions: N-
Electromechanical coaxial relay, latching, tranfer, 48V

- Max. frequency: dc- 1 GHz (usable up to 4 GHz)
- Insertion loss: 0.2 dB @ 1 GHz, 0.4 dB @ 4 GHz
- Isolation: >80 dB @ 1 GHz, >70 dB @ 4 GHz

Tranfer configuration with latching contact and signal indicator contact, 1.6/5.6 (DIN 47295) female connectors.

This relays can be used also as SPDT by simply not connecting one of the four coaxial connectors.

  • RF and high frequency
  • coaxial
  • Transfer
  • 48 V
  • 520 Ohm
  • 400 W
  • 1 GHz
  • 75 Ohm
  • 1.6/5.6 jack
  • Yes
  Title Dimension
Datasheet 443.5 kB
  • FR
  • 85364110
  • 75.00 g
  • No
  • Not available
Do login to add your comment
Availability
Stock
(immediate dispatch)
5 pcs
Cart
Minimum: 1 pc - Multiple: 1 pc
Unit Price:
$95.82
/ pc

Ext. price:
$95.82
(VAT tax not included)
Prices
Q.ty Unit Price Ext. price
1+ $95.82 $95.82
3+ $86.23 $258.70
(VAT tax not included)
