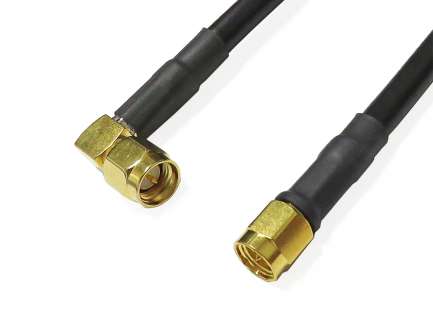

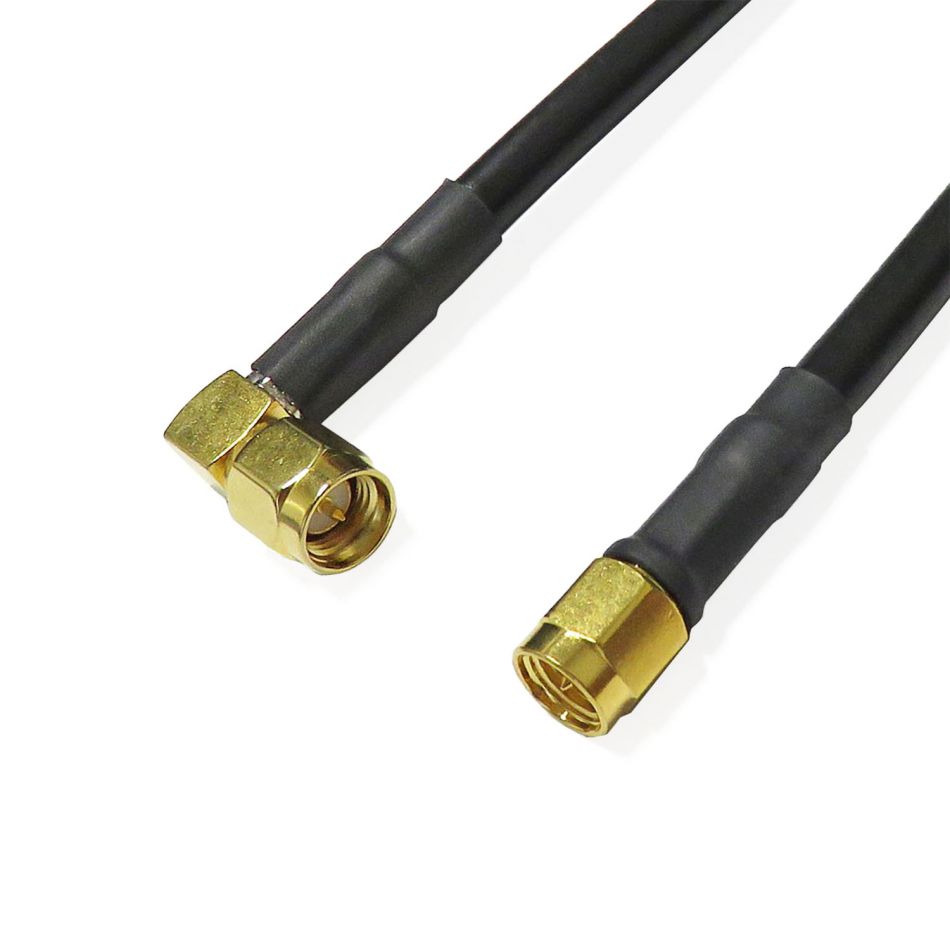

QAXIAL S02S07-12-01500 Coaxial cable assembly, SMA male/right angle male, RG223, 1.5 m

S02S07-12-01500 QAXIAL
Coaxial cable assembly, SMA male/right angle male, RG223, 1.5 m Brand: QAXIAL Manufacturer code: S02S07-12-01500 Order code: CIP-824 Category: Coaxial cable assemblies Product conditions: N (0 comments) Other available options Length CIP-820 - 25cm CIP-821 - 50cm CIP-822 - 75cm CIP-823 - 1m CIP-825 - 2m CIP-826 - 3m

Specifications

Maximum frequency:
6 GHz
Impedance :
50 Ohm
Cable type :
RG223
Dielectric:
PE
Connectors type:
SMA > SMA
Connectors gender:
male > right angle male
Length:
1.5 m
Application:
general purpose
high shielding
Flexibility:
flexible

Documents (1)

	Title	Dimension
	S02S07-12-01500 - Datasheet	241.7 kB

Additional info

This product can be supplied with custom lenght >> contact us << for personalized pricing.

These cable assemblies are made with RG223/U flexible cable with outer diameter 5.4 mm, the main features are: a low insertion loss, the double shield that guarantees a good level of shielding even at high frequencies and a silver plated center conductor to reduce the attenuation. These cable assemblies are a better performing alternative to the cheaper RG58.
