N15S02-12-00750 QAXIAL |
|
|---|---|

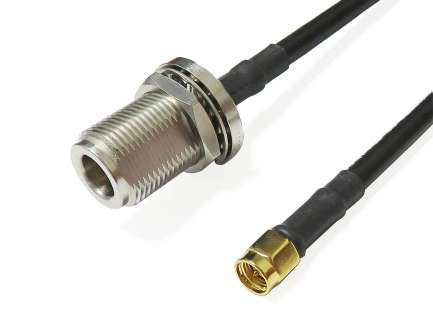

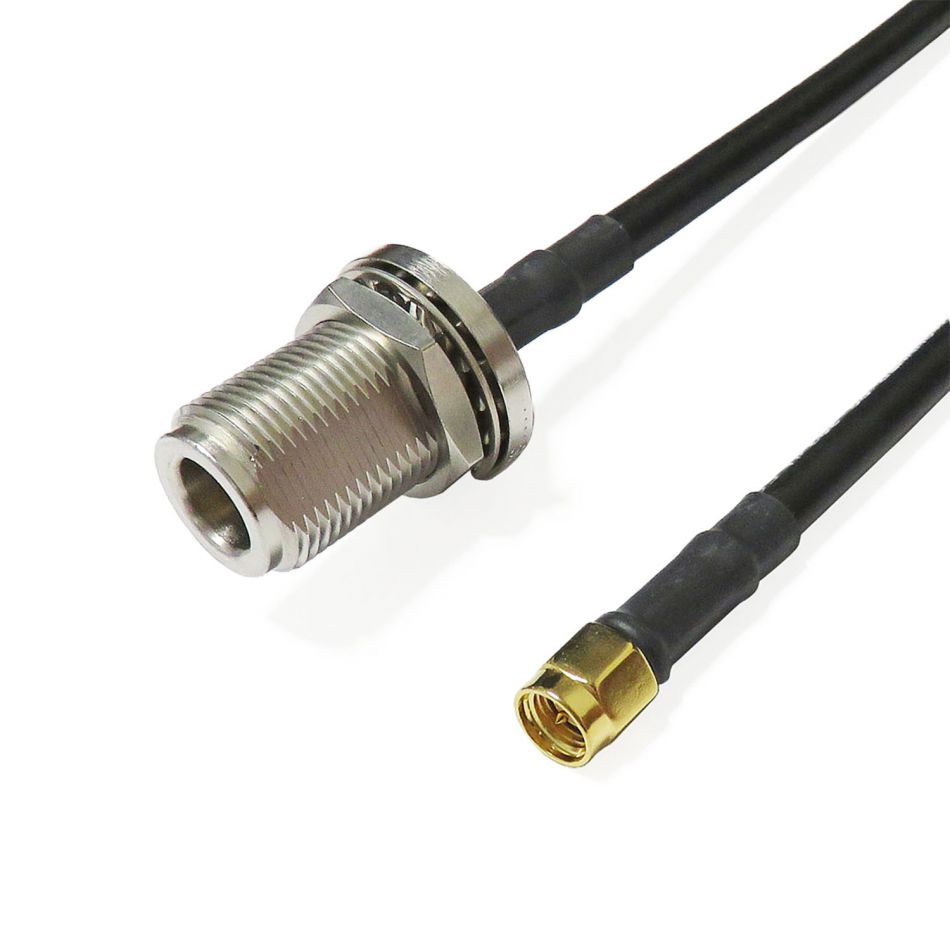

Coaxial cable assembly, N female/SMA male, RG223, 75 cm
N15S02-12-00750
Order code: CIP-742
Product conditions: N
Other available options |
|
CIP-740 -
25cm
CIP-741 -
50cm
CIP-743 -
1m
CIP-744 -
1.5m
CIP-745 -
2m
CIP-746 -
3m -
6 GHz
-
50 Ohm
-
RG223
-
PE
-
N > SMA
-
female > male
-
75 cm
-
bulkhead
-
general purpose
high shielding -
flexible
| Title | Dimension | ||
|---|---|---|---|
| N15S02-12-00750 - Datasheet | 384.0 kB |
This product can be supplied with custom lenght >> contact us << for personalized pricing.
These cable assemblies are made with RG223/U flexible cable with outer diameter 5.4 mm, the main features are: a low insertion loss, the double shield that guarantees a good level of shielding even at high frequencies and a silver plated center conductor to reduce the attenuation. These cable assemblies are a better performing alternative to the cheaper RG58.
-
IT
-
85444290
-
90.00 g
-
Yes
-
SVHC not present
