N14-00-03 QAXIAL
|
|
|---|---|
|
|
-
female
-
50 Ohm
-
18 GHz
-
straight
-
panel (4 holes flange)
-
round post
-
threaded
-
PTFE
-
15 mm
-
stainless steel
-
passivated
| Title | Dimension | ||
|---|---|---|---|
| Datasheet | 275.8 kB |

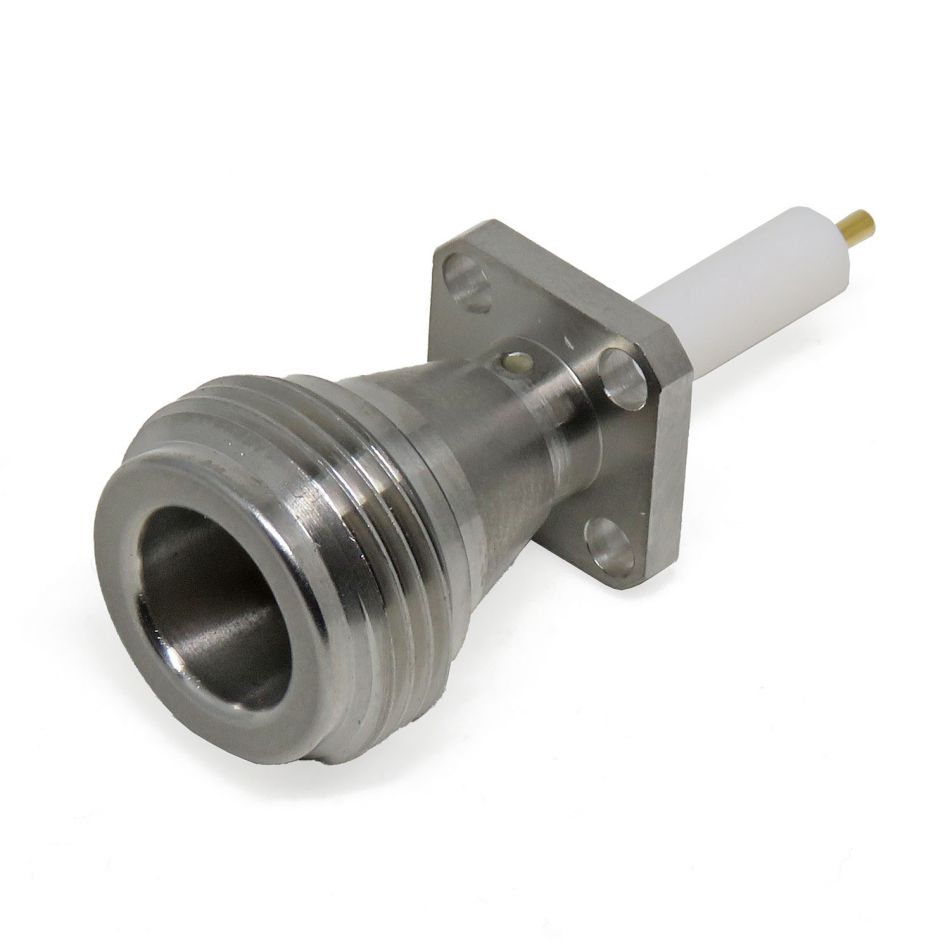

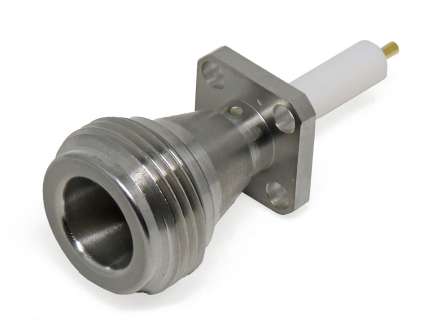

4-hole Flange Panel Mount N Female Connector
The QAXIAL N14-00-03 is a high-performance N-type female connector designed for panel mounting in RF and microwave systems. Built to MIL-STD-348A standards, it offers reliable signal integrity up to 18 GHz and is engineered for durability and precision.
Key Features
-
4-hole flange compatible with SMA connector layouts
-
Passivated stainless steel body for corrosion resistance
-
Gold-plated beryllium copper center contact
-
PTFE dielectric for stable insulation
- Rated up to 18 GHz with low VSWR
-
RoHS compliant
Applications
-
RF test equipment and instrumentation panels
- Power amplifiers
-
Microwave enclosures and high-frequency assemblies
-
Aerospace, telecom, defense, and industrial RF systems
-
CN
-
85366990
-
13.00 g
-
Yes
-
SVHC not present
