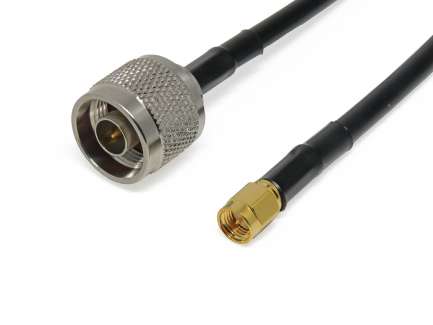

QAXIAL N02S02-12-00750 Coaxial cable assembly, N male/SMA male, RG223, 75 cm

N02S02-12-00750
Order code: CIP-712 Manufacturer code: N02S02-12-00750 Category: RF coaxial cable assemblies QAXIAL N02S02-12-00750 - Coaxial cable assembly, N male/SMA male, RG223, 75 cm Product conditions: N (0 comments) Other available options Length CIP-710 - 25cm CIP-711 - 50cm CIP-713 - 1m CIP-714 - 1.5m CIP-715 - 2m CIP-716 - 3m

Specifications

Maximum frequency:
6 GHz
Impedance :
50 Ohm
Cable type :
RG223
Dielectric:
PE
Connectors type:
N > SMA
Connectors gender:
male > male
Length:
75 cm
Application:
general purpose
high shielding
Flexibility:
flexible

Documents (1)

	Title	Dimension
	N02S02-12-00750 - Datasheet	250.2 kB

Additional info

This product can be supplied with custom lenght >> contact us << for personalized pricing.

These cable assemblies are made with RG223/U flexible cable with outer diameter 5.4 mm, the main features are: a low insertion loss, the double shield that guarantees a good level of shielding even at high frequencies and a silver plated center conductor to reduce the attenuation. These cable assemblies are a better performing alternative to the cheaper RG58.
