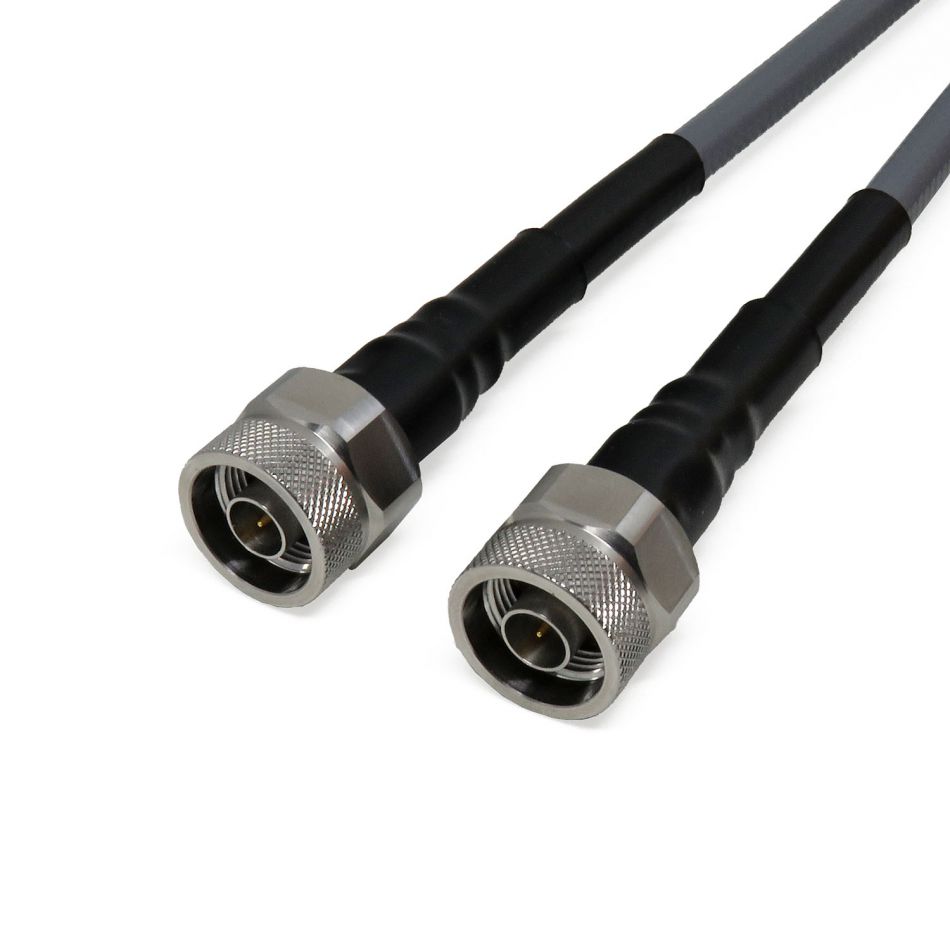

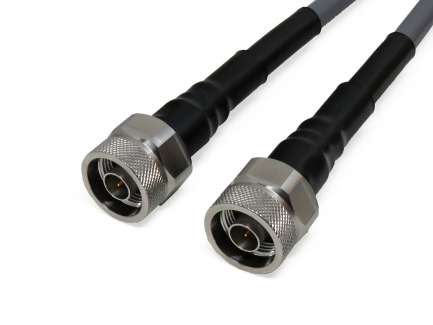

LLPS309 Ultra-Low Loss RF Cable Assembly with N Male Connectors 50 cm – Phase & Amplitude Stable up to 18 GHz

QAXIAL LLPS309 RF Cable Assembly - Overview

The QAXIAL N02N02-83-00500 is a high-performance RF coaxial cable assembly designed for demanding applications requiring ultra-low loss, phase and amplitude stability, and high power handling. Engineered with precision and terminated with N male connectors, this cable is ideal for use in environments where signal integrity and mechanical reliability are critical.

Applications

• Military and aerospace RF systems
• Naval and marine communication setups
• Broadcast transmission lines
• Precision test and measurement equipment
• High-frequency laboratory setups
• Satellite and radar systems

Key Features

• Frequency Range: DC to 18 GHz
• Phase Stability: <±5° @ 18 GHz
• Amplitude Stability: <±0.1 dB @ 18 GHz
• Shielding Effectiveness: >90 dB
• Power Handling: Up to 3341 W @ 0.3 GHz
• Construction: Silver-plated copper conductors, low-density PTFE dielectric, FEP jacket
• Connectors: Precision Stainless Steel N male connectors for secure and low-VSWR connections
• Temperature Range: –50°C to +150°C operating, –60°C to +160°C storage
• RoHS Compliant

Why choose?

The LLPS309 cable assembly offers a reliable and flexible solution for RF professionals who demand consistent electrical performance across a wide frequency range. Its robust construction and superior shielding ensure minimal signal degradation, making it a trusted choice for mission-critical RF applications.

This cable represents a valid and cost-effective alternative to the Huber+Suhner SUCOFLEX_106 and Carlisle UTiFLEX® UFB311A.

Custom Configuration Options

To meet diverse application needs, the LLPS309 RF cable assembly is available in custom lengths, with options for armor protection for harsh environments, and a wide selection of connector types including SMA, 7/16 DIN, and TNC. Whether you're working in a lab, field deployment, or high-vibration setting, we offer tailored solutions to ensure optimal performance and durability.

Use our cable configurator to design your LLPS309 cable assembly with the exact specifications you need.
