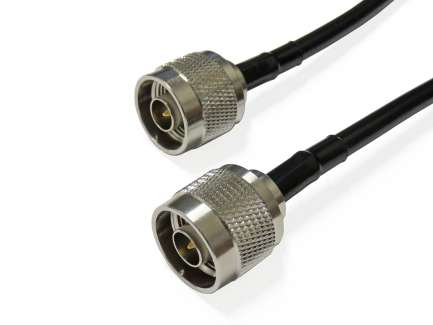

QAXIAL N02N02-12-00750 Coaxial cable assembly, 2x N male, RG223, 75 cm

N02N02-12-00750 QAXIAL
Coaxial cable assembly, 2x N male, RG223, 75 cm Brand: QAXIAL Manufacturer code: N02N02-12-00750 Order code: CIP-702 Category: Coaxial cable assemblies Product conditions: N (0 comments) Other available options Length CIP-700 - 25cm CIP-701 - 50cm CIP-703 - 1m CIP-704 - 1.5m CIP-705 - 2m CIP-706 - 3m

Specifications

Maximum frequency:
6 GHz
Impedance :
50 Ohm
Cable type :
RG223
Dielectric:
PE
Connectors type:
N > N
Connectors gender:
male > male
Length:
75 cm
Application:
general purpose
high shielding
Flexibility:
flexible

Documents (1)

	Title	Dimension
	N02N02-12-00750 - Datasheet	250.8 kB

Additional info

This product can be supplied with custom lenght >> contact us << for personalized pricing.

These cable assemblies are made with RG223/U flexible cable with outer diameter 5.4 mm, the main features are: a low insertion loss, the double shield that guarantees a good level of shielding even at high frequencies and a silver plated center conductor to reduce the attenuation. These cable assemblies are a better performing alternative to the cheaper RG58.
