Name: N male to PC3.5 male adapter, dc - 18 GHz precision series
Brand: QAXIAL
SKU: ADA-13
Price: 45.65 EUR
Availability: InStock

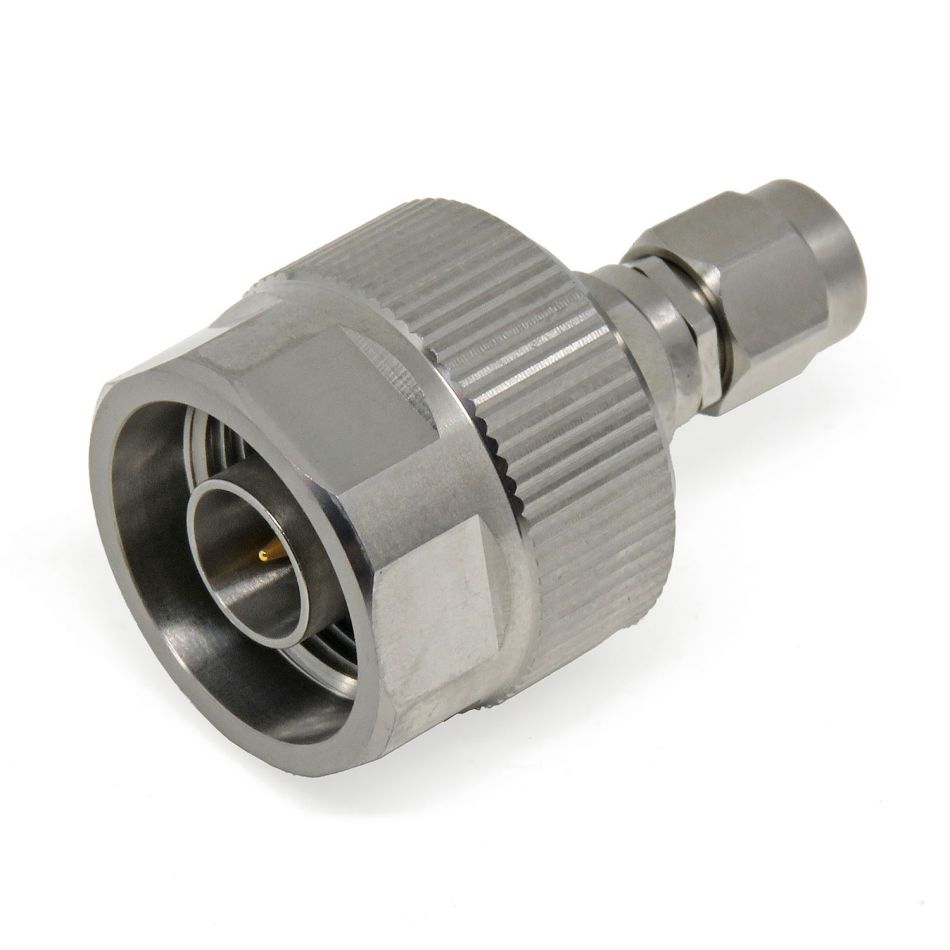

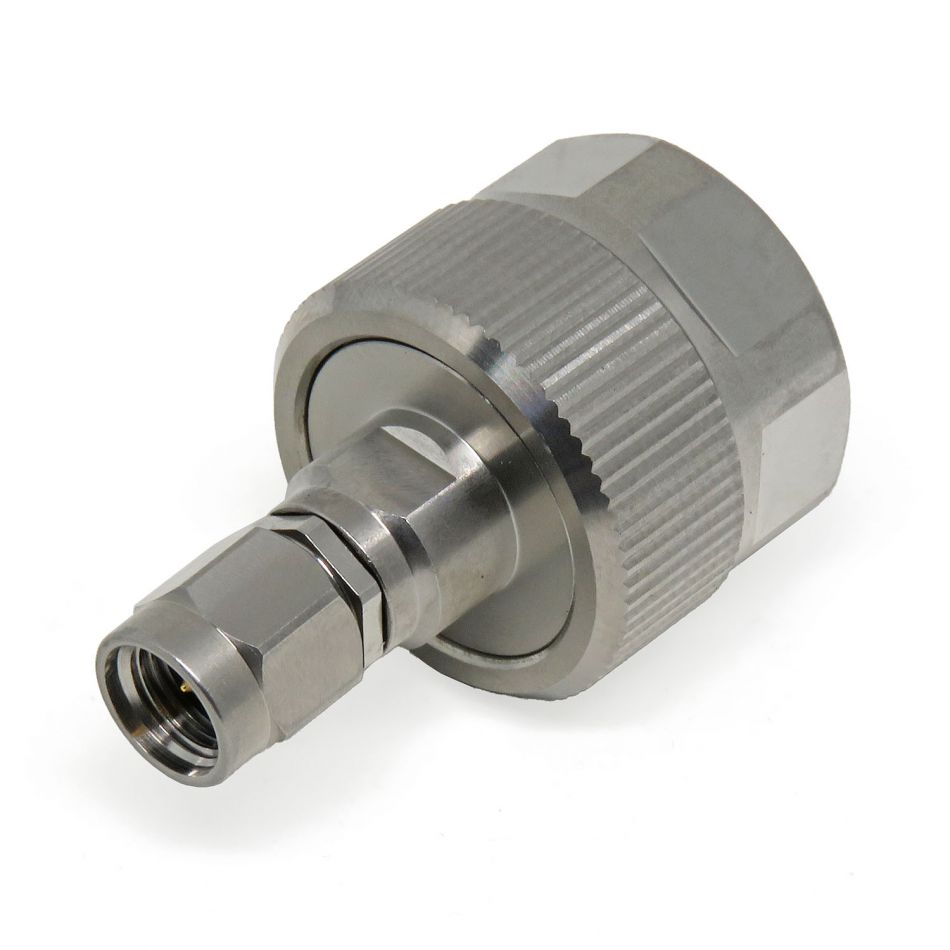

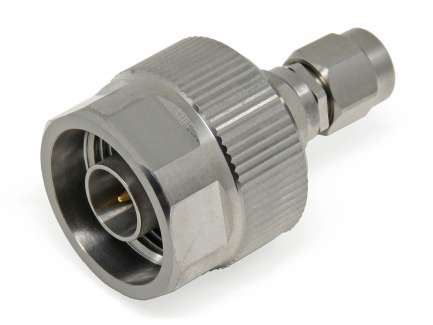

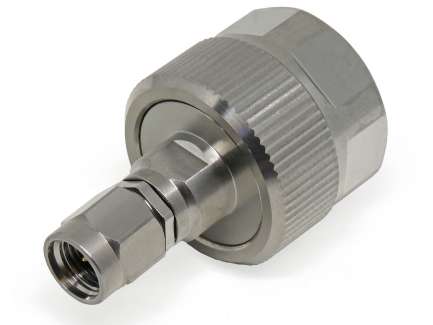

QAXIAL N-PC3541-PS N male to PC3.5 male adapter, dc - 18 GHz precision series

N-PC3541-PS QAXIAL
Order code: ADA-13 Manufacturer code: N-PC3541-PS Category: Coaxial adapters N male to PC3.5 male adapter, dc - 18 GHz precision series Product conditions: N (0 comments)

Specifications

Adapter Series:
N > PC3.5
Adapter Type:
male > male
Impedance :
50 Ohm
Maximum frequency:
18 GHz
Geometry:
straight
Mounting:
free hanging
Insulator:
PEI
Body material:
stainless steel
Body finishing:
passivated

Documents (1)

	Title	Dimension
	N-PC3541-PS - Datasheet	308.8 kB

The QAXIAL precision series has been designed for laboratory or critical applications where high performances of return loss, insertion loss and frequency are critical. In addition, the passivated stailess steel construction guarantee excellent mechanical tolerances and long product life.

The PC3.5 connector can be mated with SMA and 2.92mm (K).
