Potentiometers / resistive trimmers

Single turn trimmer resistor

Order code:	POT-D5-503
	Single turn trimmer resistor muRata POT1103H-1-503M
Conditions:	N (The product is brand new)
Series:	POT1103
Resistance value:	50 kOhm
Tolerance (±):	20 %
Power rating:	0.25 W
Max. voltage:	200 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D5-503

Single turn trimmer resistor

Order code:	POT-D6-100
	Single turn trimmer resistor muRata 3321P-1-100
Conditions:	N (The product is brand new)
Series:	3321
Resistance value:	10 Ohm
Tolerance (±):	20 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D6-100

Single turn trimmer resistor

Order code:	POT-D6-101

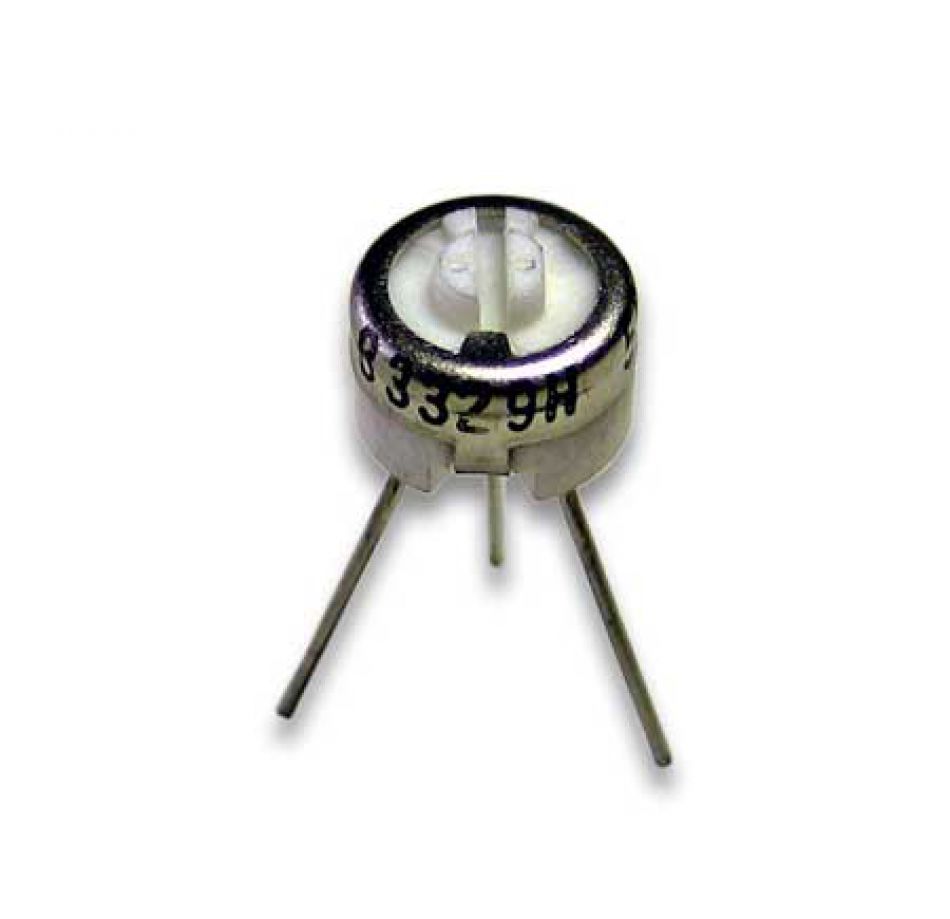

	Single turn trimmer resistor Bourns 3329H-1-101
Conditions:	N (The product is brand new)
Series:	3329
Resistance value:	100 Ohm
Tolerance (±):	10 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D6-101

Single turn trimmer resistor

Order code:	POT-D6-201
	Single turn trimmer resistor Bourns 3329H-1-201
Conditions:	N (The product is brand new)
Series:	3329
Resistance value:	200 Ohm
Tolerance (±):	10 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D6-201

Single turn trimmer resistor

Order code:	POT-D6-202
	Single turn trimmer resistor Bourns 3329H-1-202
Conditions:	N (The product is brand new)
Series:	3329
Resistance value:	2 kOhm
Tolerance (±):	10 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D6-202

Single turn trimmer resistor

Order code:	POT-D6-203
	Single turn trimmer resistor Bourns 3329H-1-203
Conditions:	N (The product is brand new)
Series:	3329
Resistance value:	20 kOhm
Tolerance (±):	10 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D6-203

Single turn trimmer resistor

Order code:	POT-D6-500
	Single turn trimmer resistor muRata 3321P-1-500
Conditions:	N (The product is brand new)
Series:	3321
Resistance value:	50 Ohm
Tolerance (±):	20 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D6-500

Single turn trimmer resistor

Order code:	POT-D6-501
	Single turn trimmer resistor Bourns 3329H-1-501
Conditions:	N (The product is brand new)
Series:	3329
Resistance value:	500 Ohm
Tolerance (±):	10 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D6-501

Single turn trimmer resistor

Order code:	POT-D6-503
	Single turn trimmer resistor muRata 3321P-1-503
Conditions:	N (The product is brand new)
Series:	3321
Resistance value:	50 kOhm
Tolerance (±):	20 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D6-503

Single turn CERMET trimmer resistor

Order code:	POT-D6-504

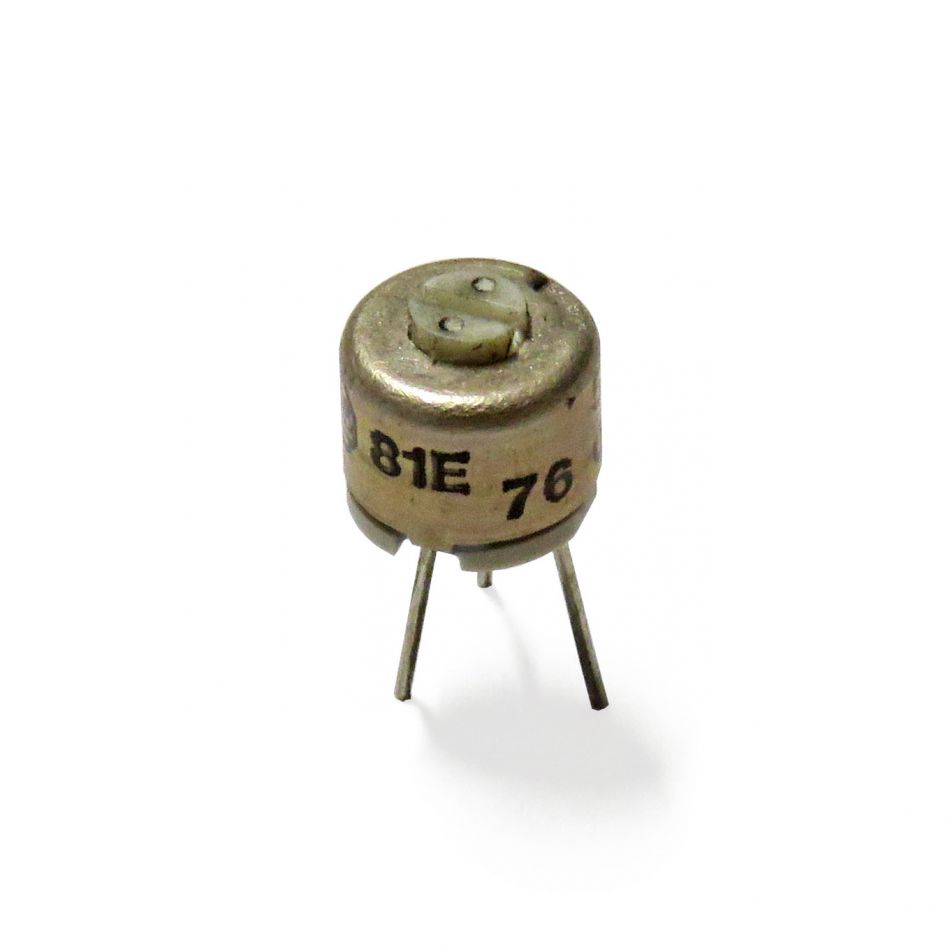

	Single turn CERMET trimmer resistor Morgante TYPE 81E
Conditions:	N (The product is brand new)
Resistance value:	500 kOhm
Tolerance (±):	10 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D6-504

Multi turn trimmer resistor

Order code:	POT-D7-102-M

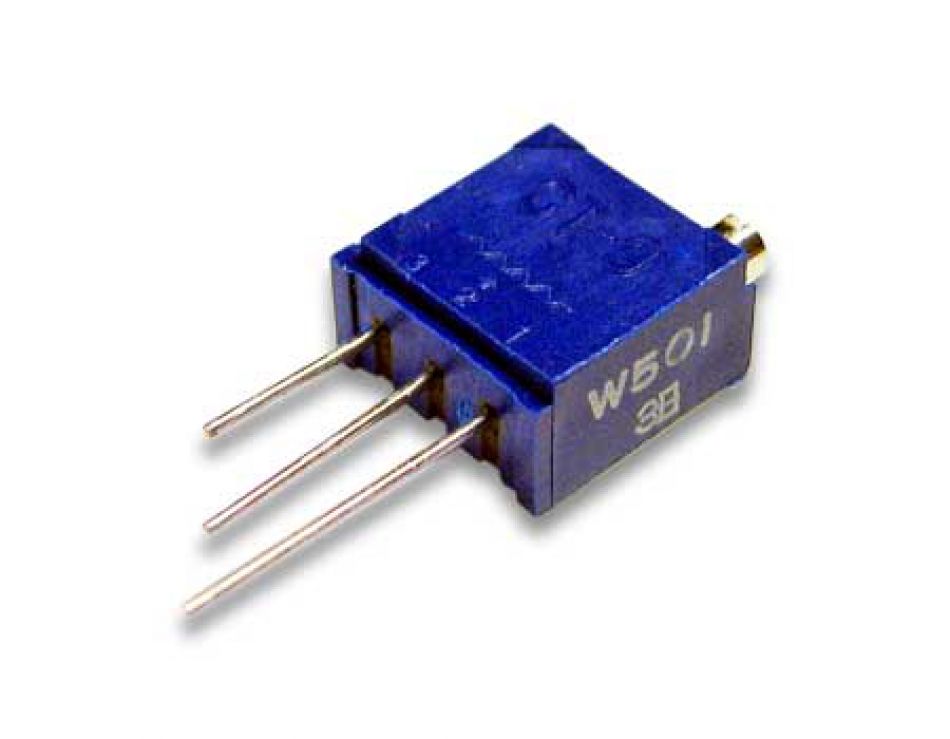

	Multi turn trimmer resistor muRata POT1102P-1-102
Conditions:	N (The product is brand new)
Series:	POT1102
Resistance value:	1 kOhm
Tolerance (±):	10 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	4
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D7-102-M

Single turn trimmer resistor

Order code:	POT-D7-254

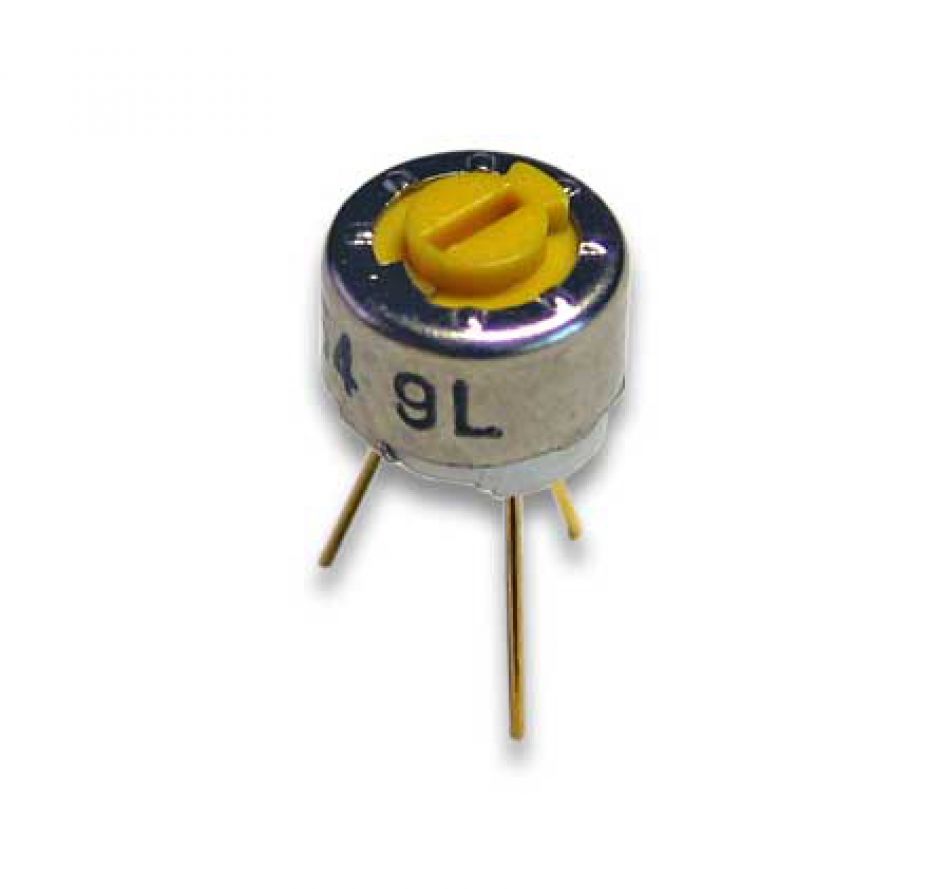

	Single turn trimmer resistor Copal RJ-6P250KΩ(254)
Conditions:	N (The product is brand new)
Series:	RJ-6
Resistance value:	250 kOhm
Tolerance (±):	10 %
Power rating:	0.5 W
Max. voltage:	200 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D7-254

Single turn trimmer resistor

Order code:	POT-D8-473

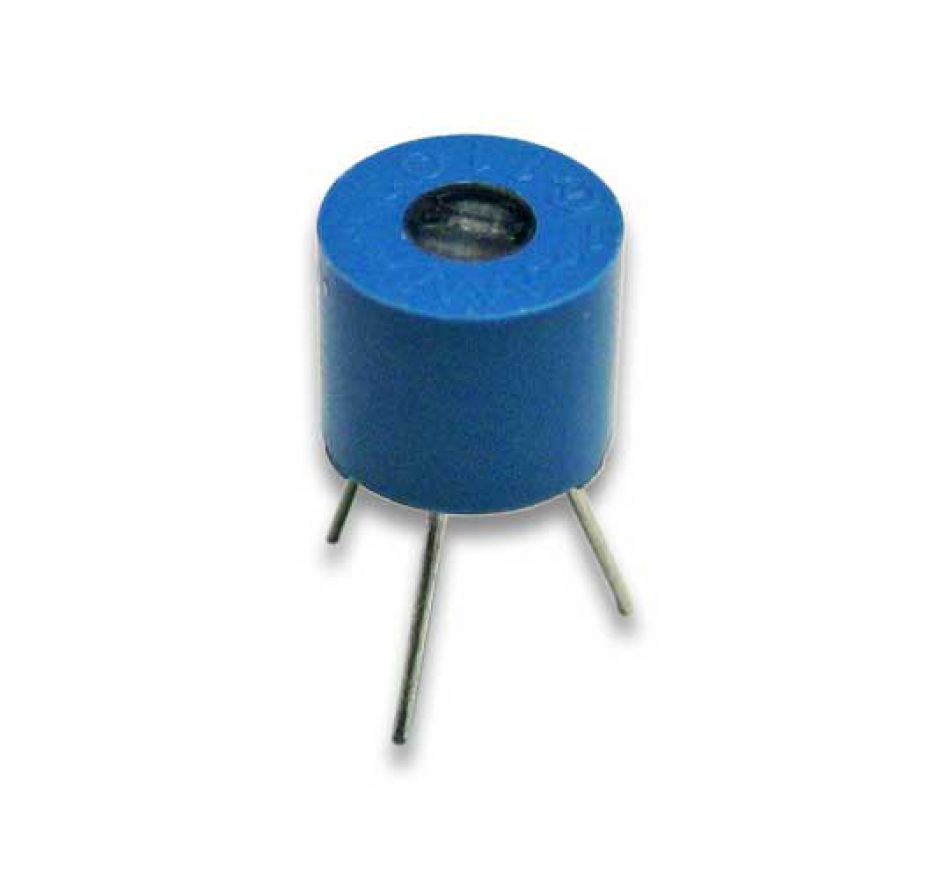

	Single turn trimmer resistor muRata RVF6P51A
Conditions:	N (The product is brand new)
Series:	RVF6
Resistance value:	47 kOhm
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-D8-473

Single turn trimmer resistor

Order code:	POT-Q1-105

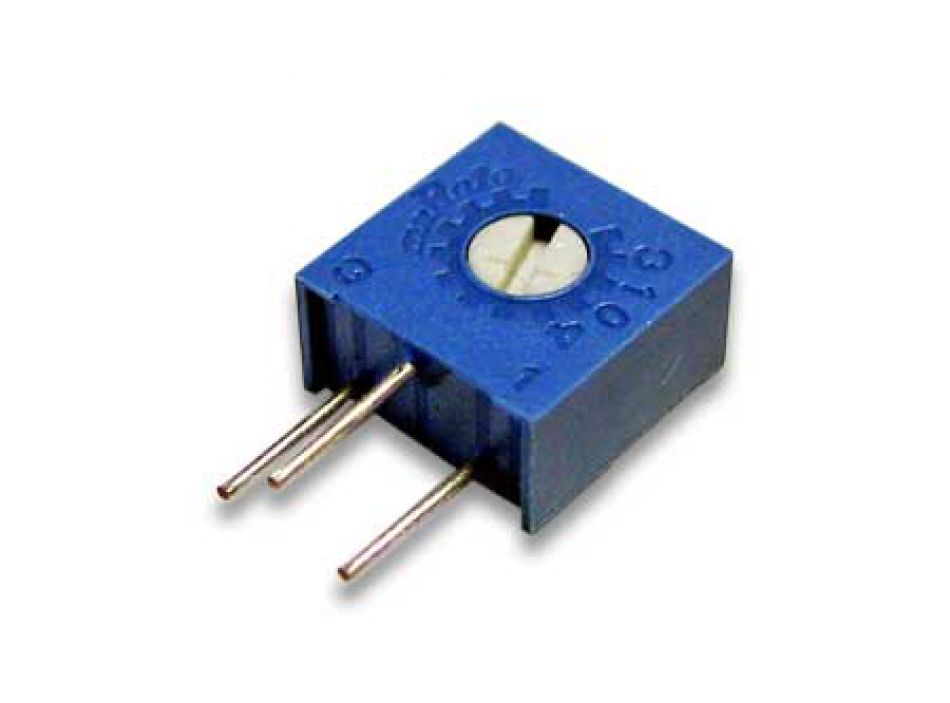

	Single turn trimmer resistor muRata POT3104X-1-105
Conditions:	N (The product is brand new)
Series:	POT3104
Resistance value:	1 MOhm
Tolerance (±):	10 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	side

Go to product page POT-Q1-105

Single turn trimmer resistor

Order code:	POT-Q2-101
	Single turn trimmer resistor muRata POT3104P-1-101
Conditions:	N (The product is brand new)
Series:	POT3104
Resistance value:	100 Ohm
Tolerance (±):	10 %
Power rating:	0.5 W
Max. voltage:	300 Vdc
Number of turns:	1
Mounting style:	thru-hole
Adjustment side:	top

Go to product page POT-Q2-101
