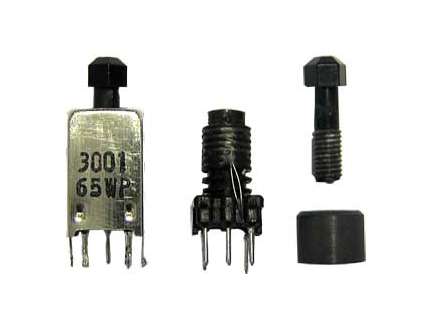

BV-3001

Tunable RF coil, 5 - 12µH, 7.5mm

Order code: BV-3001

Category: Tunable RF coils

Product conditions: N-

Write the first review!
Your opinion can help other customers.

Technical specifications

Min. inductance:
5 µH
Max. inductance:
12 µH
Configuration:
15 + 15 turns
Minimum Q:
65
Test frequency:
3 MHz
Type:
inductor
Mounting:
thru-hole
Square or diameter size:
7.5 mm
Height:
15 mm
With metal can shield:
Yes

Datasheets and documents

No document found

Applications and additional information

15 + 15 turns center tap, Q > 65 (10 µH at 3 MHz), h 15 mm (max 23 cm)

Equivalent circuit

Compliance

EU Tariff Code:
85045000
Weight:
2.00 g
RoHS:
No
REACH:
Not available

Reviews (0)

Do login to add your review

Availability
Stock (immediate dispatch)	274 pcs
Immediate availability	Dedicated technical support

Cart
Minimum: 1 pc - Multiple: 1 pc Unit Price: $1.72 / pc Ext. price: $1.72 (VAT tax not included)
Secure SSL payments	Fast shipping

Prices
Q.ty	Unit Price	Ext. price
1+	$1.72	$1.72
10+	$1.59	$15.94
25+	$1.47	$36.69
50+	$1.35	$67.66
100+	$1.23	$122.70
250+	$1.16	$289.54
Log-in to request an offer
(VAT tax not included)
