Order code: BV-0321

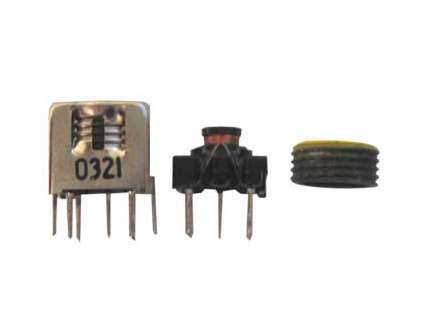

Tunable RF coil, 23 - 38µH, 7.5mm

Product conditions: N-
$1.61
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
1748 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $1.61 $1.61
10+ $1.50 $15.00
25+ $1.40 $35.11
50+ $1.33 $66.53
100+ $1.27 $126.72
250+ $1.21 $303.60
(VAT tax not included)
Compliance
EU Tariff Code 85045000
Weight 2.00 g
RoHS No
REACH Not available
  • 23 µH
  • 38 µH
  • 34 turns + 17+17 turns
  • 70
  • 2 MHz
  • transformer
  • thru-hole
  • 7.5 mm
  • 7 mm
  • Yes

Tunable RF coil, 23 - 38µH, 7.5mm

First winding 34 turns, second winding 17 + 17 turns with cener tap, total inductance for both windings, Q > 70 (30 µH at 2 MHz)

Equivalent circuit
BV-0321
/
Tunable RF coils
