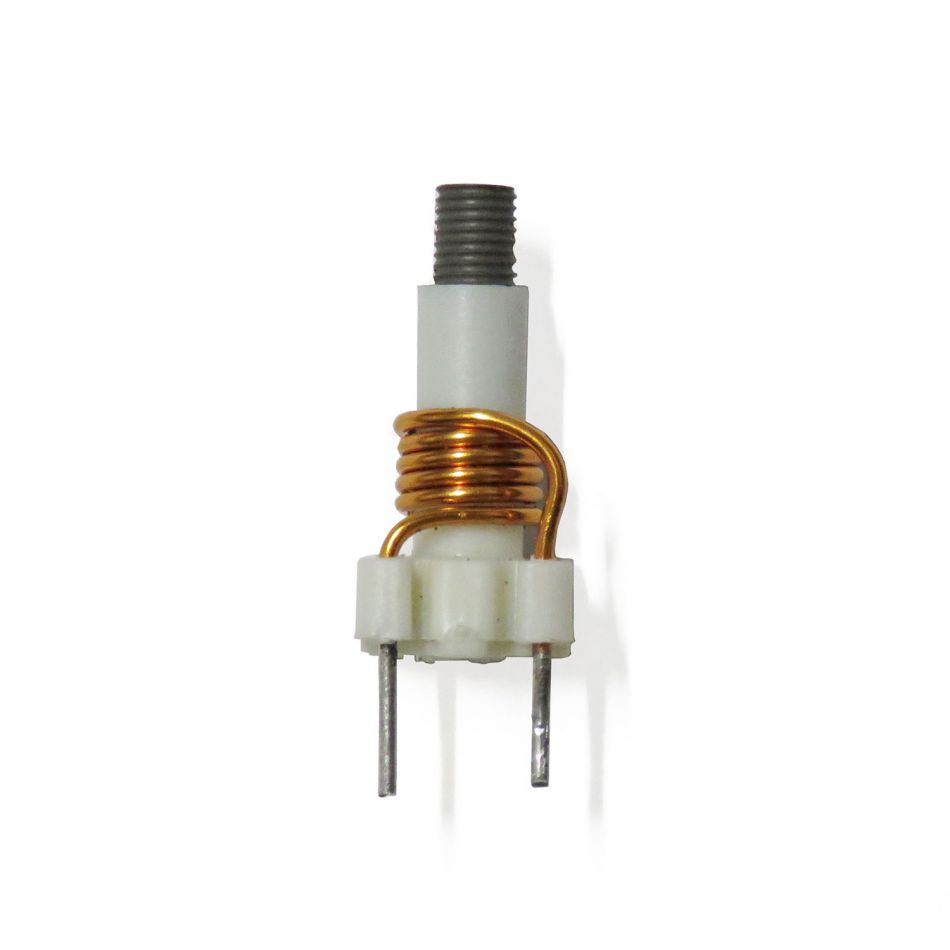

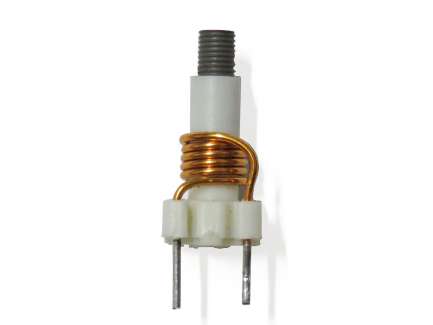

BV-200

Tunable RF coil, 150 - 240nH, 10mm

Order code: BV-200

Category: Tunable RF coils

Product conditions: N-

Write the first review!
Your opinion can help other customers.

Technical specifications

Min. inductance:
150 nH
Max. inductance:
240 nH
Configuration:
5 turns
Minimum Q:
60
Test frequency:
10 - 100 MHz
Type:
inductor
Mounting:
thru-hole
Square or diameter size:
10 mm
Height:
18 mm
With metal can shield:
No

Datasheets and documents

No document found

Applications and additional information

0.8mm copper wire winding, suitable for small power.

Q > 70 (190 nH @ 10 MHz)
Q > 60 (190 nH @ 100 MHz)

Equivalent circuit

Compliance

EU Tariff Code:
85045000
Weight:
0.80 g
RoHS:
No
REACH:
Not available

Reviews (0)

Do login to add your review

Availability
Stock (immediate dispatch)	292 pcs
Immediate availability	Dedicated technical support

Cart
Minimum: 1 pc - Multiple: 1 pc Unit Price: $1.25 / pc Ext. price: $1.25 (VAT tax not included)
Secure SSL payments	Fast shipping

Prices
Q.ty	Unit Price	Ext. price
1+	$1.25	$1.25
10+	$1.18	$11.84
25+	$1.13	$28.15
50+	$1.04	$52.24
100+	$0.99	$98.68
250+	$0.94	$235.08
Log-in to request an offer
(VAT tax not included)
