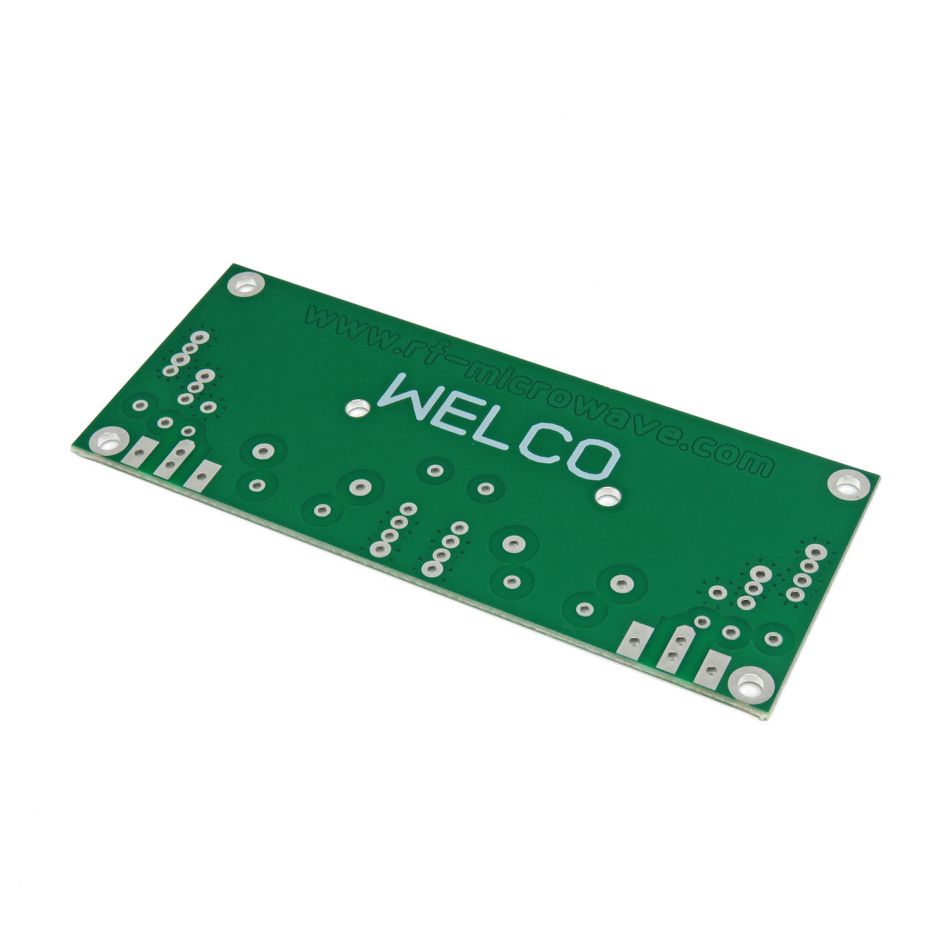

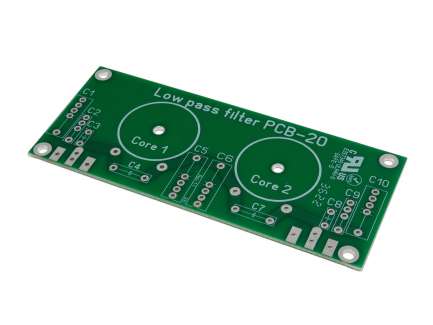

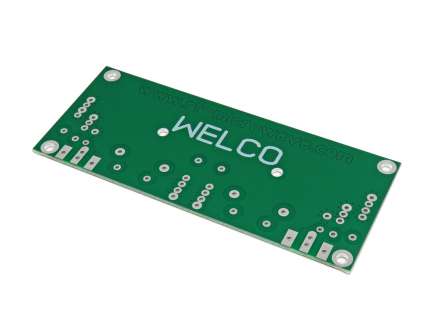

Printed circuit board for TX low pass filters for the HF band

Printed circuit board for TX low pass filters for the HF band

Order code: PCB-20Category: Printed circuit boards

Product conditions: N

Available in stock

188 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$6.34 /pcs

$6.34

More info on offers

Prices

Q.ty Price each Extended price

1+ $6.34 $6.34

Immediate availability

Dedicated technical support

Secure SSL payments

This printed circuit is ideal for the construction of low pass power filters for transmission in the HF band, it can be customized using components of your choice as the pads provide space for different pitches and different sizes of totoidal ferrites, also the input and output connections can include coaxial connectors or other types of terminals.

ELECTRIC DIAGRAM

C1, C10: pitch 7.5, 10, 12.5, 15 mm
C2, C9: pitch 5, 7.5, 10 mm
C3, C8: pitch 5 mm
C4, C7: pitch 10 mm
C5, C6: pitch 7.5, 10, 12.5, 15 mm
Core 1, Core 2: pitch 15 mm suitable for T68-x, T80-x, T92-x, T106-x, or wirewound coils
Connectors: SMA-40A
Board size: 42 x 102 mm, fixing hole spacing 93.5 x 35.5 mm

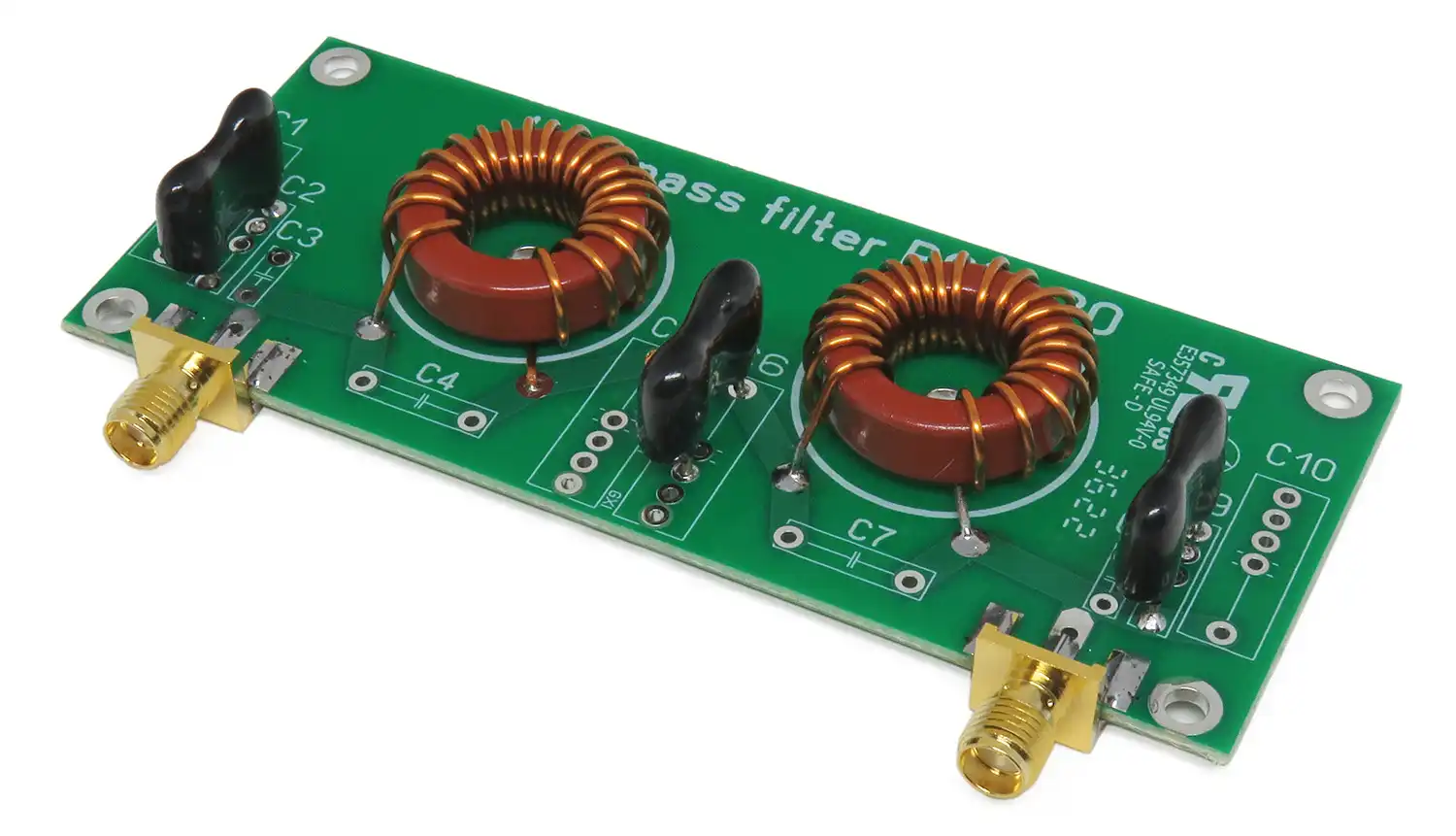

Example of assembled low pass filter with Micrometals T80-2 toroid for HF band

No documents found

Compliance

Country of origin:
CN
EU Tariff Code:
85340019
Weight:
14.20 g
RoHS:
Yes
REACH:
SVHC not present

Order code:	T80-2
	Iron powder toroid core, 0.25 - 20 MHz, OD 20.2 mm Micrometals T80-2
Conditions:	N (The product is brand new)
Color code:	red/clear
Material:	2
Permeability (µ_i):	10
A_L 100 turns:	55 µH
Frequency range:	0.25 - 20 MHz
Outer diameter (metric):	20.2 mm
Inner diameter (metric):	12.6 mm
Height (metric):	6.35 mm
Outer diameter (imperial):	0.795 in
Inner diameter (imperial):	0.495 in
Height (imperial):	0.25 in

Order code:	SMA-40A

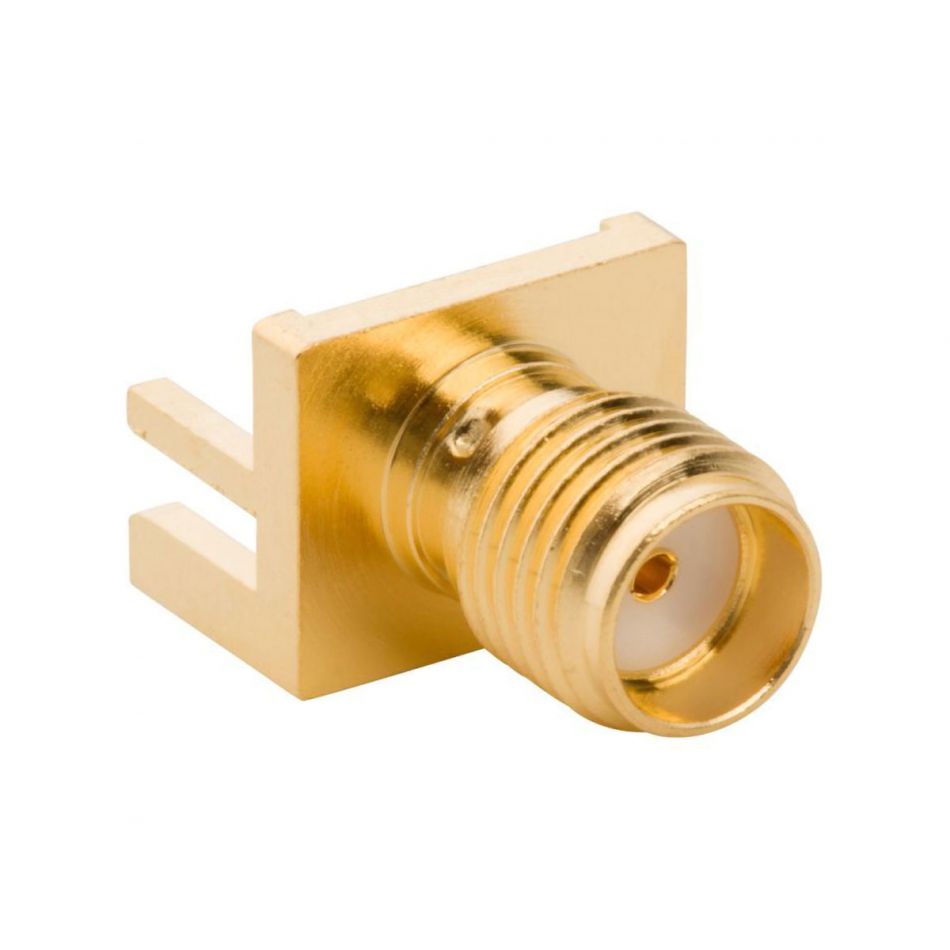

	Edge mount SMA female end-launch coaxial connector for 1.57mm PCB Amphenol RF SMA87091603-3GT50G
Conditions:	N- (The product is brand new but it comes from an old production)
Gender:	female
Impedance:	50 Ohm
Maximum frequency:	18 GHz
Geometry:	straight
Mounting:	PCB mount
Termination style:	PCB - end launch
Coupling:	threaded
Insulator:	PTFE
Body material:	brass
Body finishing:	gold

Order code:	T80-6
	Iron powder toroid core, 3 - 40 MHz, OD 20.2 mm Micrometals T80-6
Conditions:	N (The product is brand new)
Color code:	yellow/clear
Material:	6
Permeability (µ_i):	8.5
A_L 100 turns:	45 µH
Frequency range:	3 - 40 MHz
Outer diameter (metric):	20.2 mm
Inner diameter (metric):	12.6 mm
Height (metric):	6.35 mm
Outer diameter (imperial):	0.795 in
Inner diameter (imperial):	0.495 in
Height (imperial):	0.25 in

Order code:	FRS-35

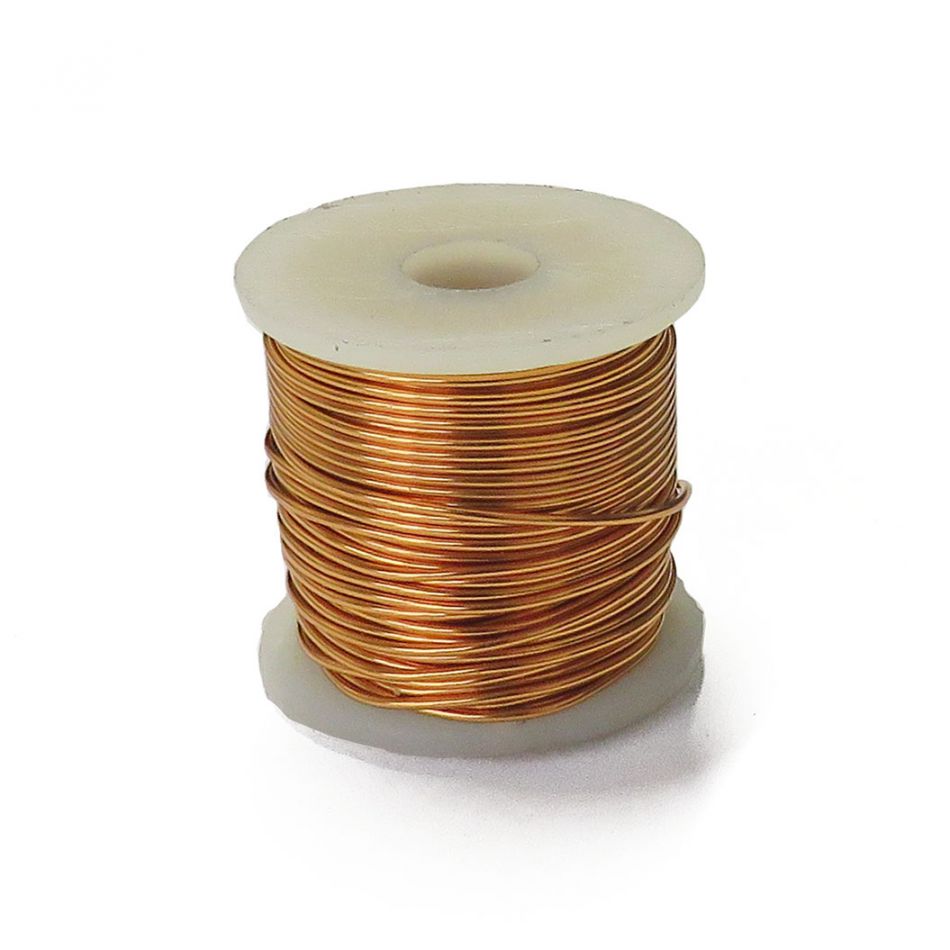

	Enameled copper wire spool, 8 m, ∅ 0.8 mm, AWG 20, copper Welco Plus ECW0R8C-F2
Conditions:	N (The product is brand new)
Conductor diameter:	0.8 mm
AWG:	20
Material & finishing:	enameled copper
Conductor type:	solid core
Wire length:	8 m
Colour:	natural copper

Order code:	FRS-38
	Enameled copper wire spool, 6 m, ∅ 1 mm, AWG 18, copper Welco Plus ECW1R0C-F2
Conditions:	N (The product is brand new)
Conductor diameter:	1 mm
AWG:	18
Material & finishing:	enameled copper
Conductor type:	solid core
Wire length:	6 m
Colour:	natural copper
