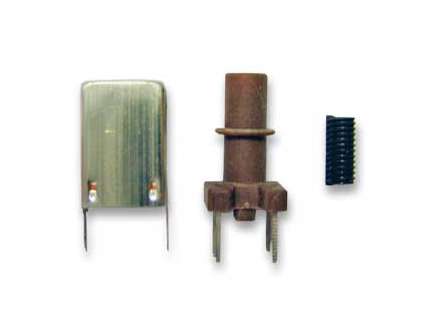

Kit for coil winding made of 5 pins 7.5mm support, 7.5mm shield and ferrite core

Order code: SBK-71SCategory: Kits and supports for coil assemblies

Product conditions: N

Available in stock

674 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$1.55 /pcs

$1.55

Prices

Q.ty Price each Extended price

1+ $1.55 $1.55

10+ $1.49 $14.94

50+ $1.44 $71.78

100+ $1.31 $130.83

250+ $1.26 $315.50

500+ $1.22 $607.85

Kit for coil winding made of 5 pins 7.5mm support, 7.5mm shield and ferrite core.

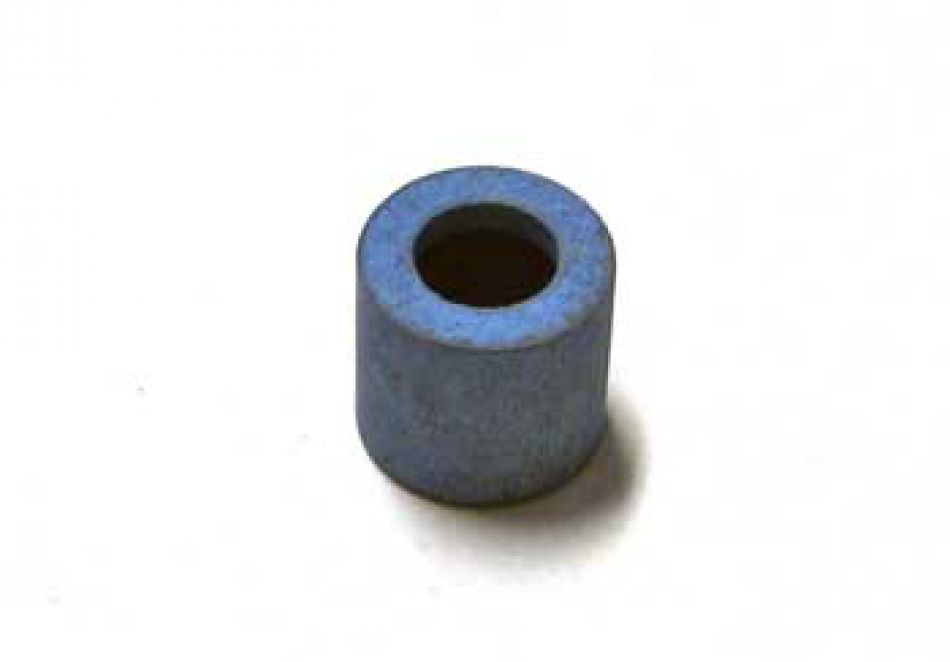

To improve shielding and inductance value it possible to add an optional ferrite cup cod. SBK-CF1.
