Order code: SBK-51

Insulated threaded screw coil support, useful space 5.7 mm, maximum 4.5 turns, wire Ø max 0.6 mm, max.inductance about 100 nH

Product conditions: N
$0.54
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)		 2603 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $0.54 $0.54
10+ $0.49 $4.88
50+ $0.45 $22.25
100+ $0.41 $41.25
250+ $0.39 $97.70
500+ $0.37 $184.54
1000+ $0.35 $347.36
(VAT tax not included)
Compliance
EU Tariff Code 85045000
Weight 2.00 g
RoHS No
REACH Not available

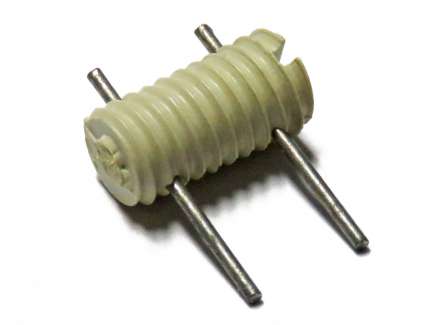

Insulated threaded screw coil support, useful space 5.7 mm, maximum 4.5 turns, wire Ø max 0.6 mm, max.inductance about 100 nH

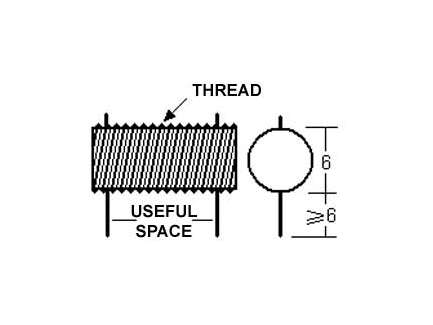

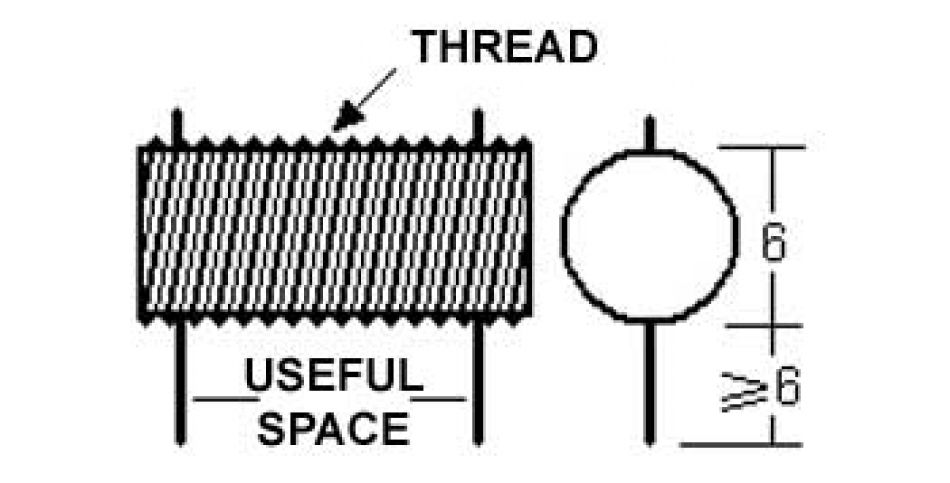

Insulated threaded screw coil support , useful space 5.7 mm, maximum 4.5 turns, wire Ø max 0.6 mm, max.inductance about 100 nH.

The thread guarantee the best mechanical fixing of the coils and stability over time.

With the thread you can also use silver plated wire because the turns are always kept well insulated by the it, this increase the Q of the coil thanks to the possibility to use silver plated wire.

These supports come without tuning core as they does not implement core tuning.



SBK-51
/
