Brand: Motorola
Manufacturer code: MRF559
Order code: MRF559

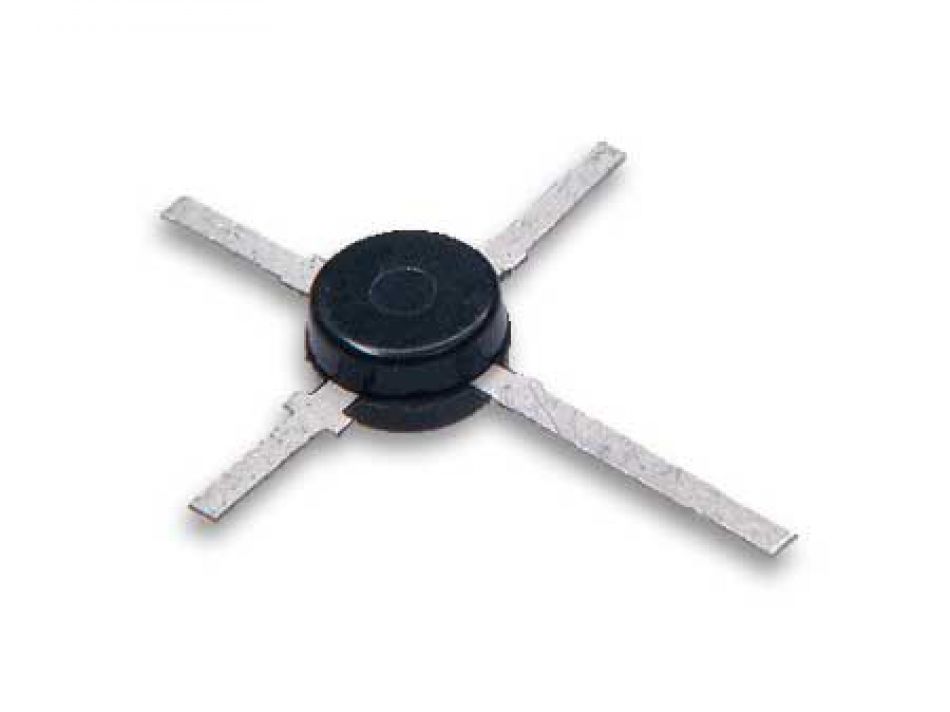

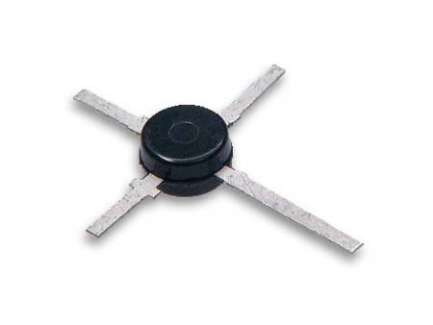

Silicon bipolar NPN RF transistor, SOT-103

Product conditions: N
$2.83
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
108 pcs
Volume discounts
Q.ty Unit Price Ext. price
1+ $2.83 $2.83
10+ $2.52 $25.23
25+ $2.13 $53.15
50+ $1.86 $92.88
(VAT tax not included)
Compliance
EU Tariff Code 85412900
Weight 0.10 g
RoHS No
REACH Not available
  • NPN
  • 16 V
  • 3 GHz
  • 150 mA
  • 2 W
  • surface
  • SOT-103
  • plastic

Silicon bipolar NPN RF transistor, SOT-103

High performances and very high dynamic transistor, for applicaztions as front-end RX stage, for example:

- Noise figure: 4dB @ 500 MHz, 80mA
- Gain: 14dB @ 500 MHz, 80mA

Or for applications as low power stage:

- Output power: 0.8W @ 470 MHz, 0.7W @ 1 GHz

CLASS A:

  • Frequency Bands: I, II, III, IV, V
  • Class A output level: 500mV
MRF559
/
Transistors - BJT
  Title Dimension
Datasheet 124.3 kB
