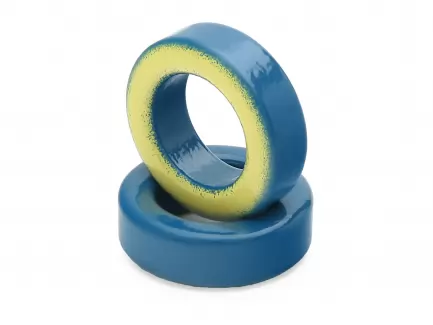

Micrometals T94-17 Iron powder toroid core, 20 - 200 MHz, OD 23.9 mm

T94-17 - Iron powder toroid core, 20 - 200 MHz, OD 23.9 mm

Name: Iron powder toroid core, 20 - 200 MHz, OD 23.9 mm
Brand: Micrometals
SKU: T94-17
Price: 2.53 EUR
Availability: InStock

Order code: T94-17Brand: MicrometalsManufacturer code: T94-17Category: RF iron powder toroids

Product conditions: N

Other available options

Permeability (µ_i)

Outer diameter (metric)

Available in stock

941 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$2.84 /pcs

$2.84

More info on offers

Prices

Q.ty Price each Extended price

1+ $2.84 $2.84

10+ $2.28 $22.76

50+ $1.89 $94.75

100+ $1.69 $169.32

250+ $1.54 $384.05

500+ $1.47 $734.45

1000+ $1.39 $1,390.41

2500+ $1.32 $3,307.84

Immediate availability

Dedicated technical support

Secure SSL payments

Micrometals T94-17 Toroidal Core for RF

Engineered for demanding RF and high-frequency applications, the Micrometals T94-17 toroidal core combines a dimension of 23.9 mm (0.942 inches) with exceptional magnetic stability. Made from proprietary -17 iron powder material, this core offers low permeability and a tightly controlled AL value, ensuring predictable inductance across a wide range of operating conditions. Its robust mechanical design make it a trusted choice for engineers developing broadband transformers, EMI filters, and custom inductors. Whether you're optimizing a VHF balun or designing a high-frequency choke, the T94-17 delivers consistent performance, minimal core loss, and reliable thermal behavior.

Typical Applications

RF transformers and baluns
EMI/RFI suppression
Broadband signal conditioning
High-frequency chokes
Custom inductors for VHF/UHF circuits

Micrometals MIX 17 - Key Features

High frequency carbonyl Iron Powder material
High Q up to 150 MHz
Ideally designed for cable television applications
Suited for moderate band transformers from 400 to 700 MHz.
Permeability 4μ

Specifications

Color code:
blue/yellow
Material:
17
Permeability (µ_i):
4
A_L 100 turns:
29 µH
Frequency range:
20 - 200 MHz
Outer diameter (metric):
23.9 mm
Inner diameter (metric):
14.2 mm
Height (metric):
7.92 mm
Outer diameter (imperial):
0.942 in
Inner diameter (imperial):
0.56 in
Height (imperial):
0.312 in

Datasheet

PDF · 439.4 kB

View

Compliance

Country of origin:
US
EU Tariff Code:
85049018
Weight:
9.00 g
RoHS:
Yes
REACH:
SVHC not present
