Micrometals T94-10 Iron powder toroid core, 15 - 100 MHz, OD 23.9 mm

T94-10 - Iron powder toroid core, 15 - 100 MHz, OD 23.9 mm

Name: Iron powder toroid core, 15 - 100 MHz, OD 23.9 mm
Brand: Micrometals
SKU: T94-10
Price: 3.02 EUR
Availability: InStock

Order code: T94-10Brand: MicrometalsManufacturer code: T94-10Category: RF iron powder toroids

Product conditions: N

Other available options

Permeability (µ_i)

Outer diameter (metric)

Available in stock

24 Units ready for shipment

+ 1250 units on order

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$3.49 /pcs

$3.49

More info on offers

Prices

Q.ty Price each Extended price

1+ $3.49 $3.49

10+ $2.87 $28.69

50+ $2.38 $119.15

100+ $2.17 $217.48

250+ $1.97 $491.64

500+ $1.87 $937.01

1000+ $1.79 $1,793.04

2500+ $1.70 $4,251.24

Immediate availability

Dedicated technical support

Secure SSL payments

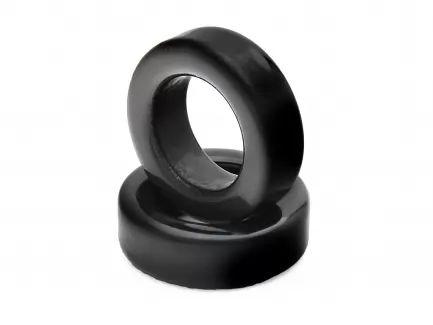

Micrometals T94-10 Toroidal Core for RF

The T94-10 is a toroidal core made from Micrometals’ Mix 10 carbonyl iron powder. With a nominal outer diameter of 23.9mm (0.942 inches), this core is engineered for high-frequency performance and low loss. With a nominal permeability of 6μ, it offers excellent stability and high Q up to 150 MHz, making it ideal for RF and broadband applications.

Typical Applications

RF chokes and filters
Broadband transformers
Cable TV splitters and combiners
High-frequency inductors

Micrometals MIX 10 - Key Features

High frequency carbonyl Iron Powder material
High Q up to 150 MHz
Suitable for moderate band transformers from 400 to 700 MHz
Permeability 6μ

Specifications

Color code:
black/clear
Material:
10
Permeability (µ_i):
6
A_L 100 turns:
58 µH
Frequency range:
15 - 100 MHz
Outer diameter (metric):
23.9 mm
Inner diameter (metric):
14.2 mm
Height (metric):
7.92 mm
Outer diameter (imperial):
0.942 in
Inner diameter (imperial):
0.56 in
Height (imperial):
0.312 in

Datasheet

PDF · 439.2 kB

View

Compliance

Country of origin:
US
EU Tariff Code:
85049018
Weight:
11.00 g
RoHS:
Yes
REACH:
SVHC not present
