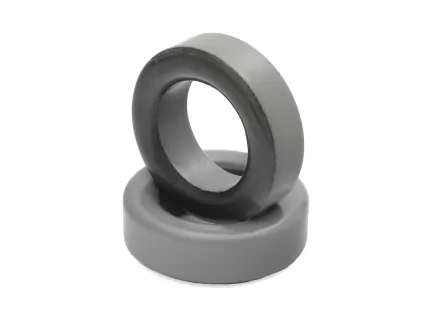

Micrometals T80-3 Iron powder toroid core, 0.02 - 1 MHz, OD 20.2 mm

T80-3 - Iron powder toroid core, 0.02 - 1 MHz, OD 20.2 mm

Name: Iron powder toroid core, 0.02 - 1 MHz, OD 20.2 mm
Brand: Micrometals
SKU: T80-3
Price: 1.33 EUR
Availability: InStock

Order code: T80-3Brand: MicrometalsManufacturer code: T80-3Category: RF iron powder toroids

Product conditions: N

Other available options

Permeability (µ_i)

Outer diameter (metric)

Available in stock

963 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$1.539 /pcs

$1.54

Prices

Q.ty Price each Extended price

1+ $1.539 $1.539

10+ $1.338 $13.384

50+ $1.164 $58.187

100+ $1.058 $105.847

250+ $0.962 $240.614

400+ $0.916 $366.474

800+ $0.872 $697.782

Immediate availability

Dedicated technical support

Secure SSL payments

Iron Powder Toroid T80-3 Micrometals

The T80-3 toroid from Micrometals is an iron powder magnetic core designed for low-frequency RF applications. Thanks to its Mix 3 and initial permeability of 35, this toroid is particularly suitable for circuits requiring high stability and signal handling precision.

The T80-3 is ideal for building inductors, broadband transformers, low-pass filters and impedance matching circuits. It is commonly used in amateur radio, analog and digital communication systems, and power electronics projects requiring stable response up to 1 MHz.

Mix 3 offers high linearity and low magnetic loss, making this toroid ideal for applications where maintaining a high Q (quality factor) and reducing signal distortion is essential.

Typical Applications of the T80-3 Toroid

Broadband RF transformers
Inductors for low-pass filters
Compensation coils for audio circuits
DC-DC converters and switching regulators
Amateur radio and SDR (Software Defined Radio) projects
EMI/RFI filters for noise suppression

Micrometals MIX 3 - KEY FEATURES

Annealed carbonyl iron powder material
Provides the highest carbonyl permeability
Used for high-Q applications below 1 MHz
Ideal for broadband transformers from 50 to 500 MHz
Permeability 35μ

Specifications

Color code:
gray/clear
Material:
3
Permeability (µ_i):
35
A_L 100 turns:
180 µH
Frequency range:
0.02 - 1 MHz
Outer diameter (metric):
20.2 mm
Inner diameter (metric):
12.6 mm
Height (metric):
6.35 mm
Outer diameter (imperial):
0.795 in
Inner diameter (imperial):
0.495 in
Height (imperial):
0.25 in

Datasheet

PDF · 438.3 kB

View

Compliance

Country of origin:
US
EU Tariff Code:
85049018
Weight:
6.00 g
RoHS:
Yes
REACH:
SVHC not present
