Brand: Micrometals
Manufacturer code: T68-2
Order code: T68-2

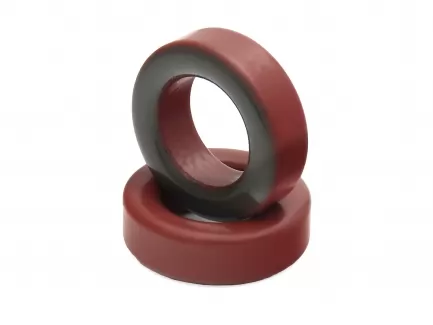

Iron powder toroid core T68-2

Product conditions: N
$0.823
/ pc
(VAT tax not included)
Minimum: 1 pc - Multiple: 1 pc
Availability
Stock
(immediate dispatch)
3230 pcs
Lead time
(factory standard)
20 wks.
Volume discounts
Q.ty Unit Price Ext. price
1+ $0.823 $0.82
50+ $0.658 $32.88
100+ $0.572 $57.20
250+ $0.511 $127.84
750+ $0.465 $348.58
1500+ $0.430 $645.16
 3000+ Request offer
(VAT tax not included)
  • red/clear
  • 2
  • 10
  • 57 µH
  • 0.25 - 20 MHz
  • 17.5 mm
  • 9.4 mm
  • 4.83 mm
  • 0.69 in
  • 0.37 in
  • 0.19 in

Iron powder toroid core T68-2

MIX 2 - KEY FEATURES
- Industry standard for RF and audio applications
- Carbonyl Iron mix - exclusively from Micrometals
- High Q up to 40 MHz
- Used for moderate band transformers 200 to 400 MHz
- Permeability of 10μ
- The low permeability results in lower operating AC flux density than other materials with no additional gap‐loss

T68-2
/
  Title Dimension
Datasheet 438.9 kB
Country of origin US
EU Tariff Code 85049018
Weight 4.20 g
RoHS Yes
REACH SVHC not present
avatar
fabrizio
25/05/2015

ok
