T44-17 Micrometals
|
|
|---|---|
|
|
T44-0 -
1
T44-2 -
10
T44-1 -
20
T44-3 -
35
T44-10 -
6
T44-6 -
8.5
T25-17 -
6.48mm
T30-17 -
7.8mm
T37-17 -
9.53mm
T50-17 -
12.7mm
T68-17 -
17.5mm
T80-17 -
20.2mm
T94-17 -
23.9mm
T106-17 -
26.9mm
T130-17 -
33mm
T157-17 -
39.9mm -
blue/yellow
-
17
-
4
-
18.5 µH
-
20 - 200 MHz
-
11.2 mm
-
5.82 mm
-
4.04 mm
-
0.44 in
-
0.229 in
-
0.159 in
| Title | Dimension | ||
|---|---|---|---|
| Datasheet | 439.2 kB |

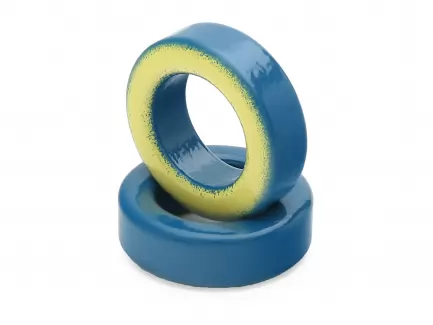

Micrometals T44-17 Toroidal Core for RF
Engineered for demanding RF and high-frequency applications, the Micrometals T44-17 toroidal core combines a dimension of 11.2 mm (0.44 inches) with exceptional magnetic stability. Made from proprietary -17 iron powder material, this core offers low permeability and a tightly controlled AL value, ensuring predictable inductance across a wide range of operating conditions. Its robust mechanical design make it a trusted choice for engineers developing broadband transformers, EMI filters, and custom inductors. Whether you're optimizing a VHF balun or designing a high-frequency choke, the T44-17 delivers consistent performance, minimal core loss, and reliable thermal behavior.
Typical Applications
- RF transformers and baluns
- EMI/RFI suppression
- Broadband signal conditioning
- High-frequency chokes
- Custom inductors for VHF/UHF circuits
Micrometals MIX 17 - Key Features
- High frequency carbonyl Iron Powder material
- High Q up to 150 MHz
- Ideally designed for cable television applications
- Suited for moderate band transformers from 400 to 700 MHz.
- Permeability 4μ
-
US
-
85049018
-
1.00 g
-
Yes
-
SVHC not present
| Availability | |
|---|---|
| Stock (immediate dispatch) |
1996 pcs |
Immediate availability |
Dedicated technical support |
| Cart | |
|---|---|
|
Minimum: 1 pc -
Multiple: 1 pc Unit Price:
$0.500
/ pc
Ext. price:
$0.50
(VAT tax not included) |
|
Secure SSL payments |
Fast shipping |
|
