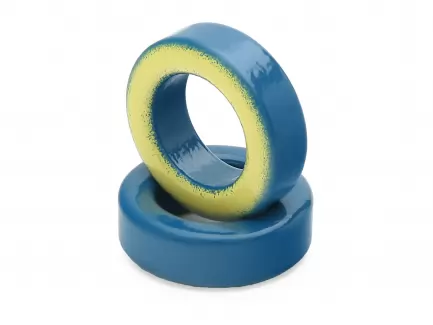

Micrometals T30-17 Iron powder toroid core, 20 - 200 MHz, OD 7.8 mm

T30-17 - Iron powder toroid core, 20 - 200 MHz, OD 7.8 mm

Name: Iron powder toroid core, 20 - 200 MHz, OD 7.8 mm
Brand: Micrometals
SKU: T30-17
Price: 0.21 EUR
Availability: InStock

Order code: T30-17Brand: MicrometalsManufacturer code: T30-17Category: RF iron powder toroids

Product conditions: N

Other available options

Permeability (µ_i)

Outer diameter (metric)

Available in stock

2673 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$0.243 /pcs

$0.24

Prices

Q.ty Price each Extended price

1+ $0.243 $0.243

10+ $0.192 $1.919

100+ $0.160 $15.954

500+ $0.146 $72.834

1000+ $0.132 $131.795

Immediate availability

Dedicated technical support

Secure SSL payments

Micrometals T30-17 Toroidal Core for RF

Engineered for demanding RF and high-frequency applications, the Micrometals T30-17 toroidal core combines a dimension of 7,8 mm (0.307 inches) with exceptional magnetic stability. Made from proprietary -17 iron powder material, this core offers low permeability and a tightly controlled AL value, ensuring predictable inductance across a wide range of operating conditions. Its robust mechanical design make it a trusted choice for engineers developing broadband transformers, EMI filters, and custom inductors. Whether you're optimizing a VHF balun or designing a high-frequency choke, the T30-17 delivers consistent performance, minimal core loss, and reliable thermal behavior.

Typical Applications

RF transformers and baluns
EMI/RFI suppression
Broadband signal conditioning
High-frequency chokes
Custom inductors for VHF/UHF circuits

Micrometals MIX 17 - Key Features

High frequency carbonyl Iron Powder material
High Q up to 150 MHz
Ideally designed for cable television applications
Suited for moderate band transformers from 400 to 700 MHz.
Permeability 4μ

Specifications

Color code:
blue/yellow
Material:
17
Permeability (µ_i):
4
A_L 100 turns:
16 µH
Frequency range:
20 - 200 MHz
Outer diameter (metric):
7.8 mm
Inner diameter (metric):
3.84 mm
Height (metric):
3.25 mm
Outer diameter (imperial):
0.307 in
Inner diameter (imperial):
0.151 in
Height (imperial):
0.128 in

Datasheet

PDF · 439.7 kB

View

Compliance

Country of origin:
US
EU Tariff Code:
85049018
Weight:
1.00 g
RoHS:
Yes
REACH:
SVHC not present
