Micrometals T25-10 Iron powder toroid core, 15 - 100 MHz, OD 6.48 mm

T25-10 - Iron powder toroid core, 15 - 100 MHz, OD 6.48 mm

Name: Iron powder toroid core, 15 - 100 MHz, OD 6.48 mm
Brand: Micrometals
SKU: T25-10
Price: 0.28 EUR
Availability: InStock

Order code: T25-10Brand: MicrometalsManufacturer code: T25-10Category: RF iron powder toroids

Product conditions: N

Other available options

Permeability (µ_i)

Outer diameter (metric)

Available in stock

227 Units ready for shipment

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$0.325 /pcs

$0.33

Prices

Q.ty Price each Extended price

1+ $0.325 $0.325

10+ $0.259 $2.589

100+ $0.216 $21.595

Immediate availability

Dedicated technical support

Secure SSL payments

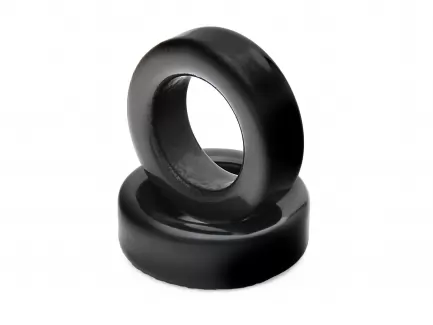

Micrometals T25-10 Toroidal Core for RF

The T25-10 is a toroidal core made from Micrometals’ Mix 10 carbonyl iron powder. With a nominal outer diameter of 6.48mm (0.255 inches), this core is engineered for high-frequency performance and low loss. With a nominal permeability of 6μ, it offers excellent stability and high Q up to 150 MHz, making it ideal for RF and broadband applications.

Typical Applications

RF chokes and filters
Broadband transformers
Cable TV splitters and combiners
High-frequency inductors

Micrometals MIX 10 - Key Features

High frequency carbonyl Iron Powder material
High Q up to 150 MHz
Suitable for moderate band transformers from 400 to 700 MHz
Permeability 6μ

Specifications

Color code:
black/clear
Material:
10
Permeability (µ_i):
6
A_L 100 turns:
19 µH
Frequency range:
15 - 100 MHz
Outer diameter (metric):
6.48 mm
Inner diameter (metric):
3.05 mm
Height (metric):
2.44 mm
Outer diameter (imperial):
0.255 in
Inner diameter (imperial):
0.12 in
Height (imperial):
0.096 in

Datasheet

PDF · 439.2 kB

View

Compliance

Country of origin:
US
EU Tariff Code:
85049018
Weight:
1.00 g
RoHS:
Yes
REACH:
SVHC not present
