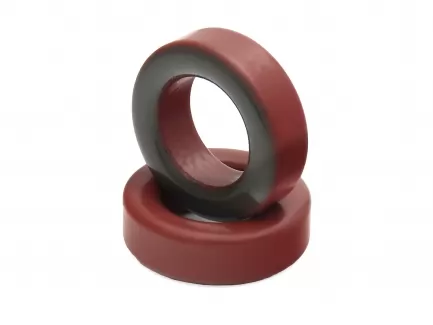

Micrometals T200-2 Iron powder toroid core, 0.25 - 20 MHz, OD 50.8 mm

T200-2 - Iron powder toroid core, 0.25 - 20 MHz, OD 50.8 mm

Name: Iron powder toroid core, 0.25 - 20 MHz, OD 50.8 mm
Brand: Micrometals
SKU: T200-2
Price: 6.79 EUR
Availability: InStock
Rating: 5 (9 reviews)

Order code: T200-2Brand: MicrometalsManufacturer code: T200-2Category: RF iron powder toroids

Product conditions: N

Other available options

Permeability (µ_i)

Outer diameter (metric)

Available in stock

259 Units ready for shipment

+ 1200 units on order

Quantity

Minimum: 1 pcs

Multiple: 1 pcs

$7.90 /pcs

$7.90

More info on offers

Prices

Q.ty Price each Extended price

1+ $7.90 $7.90

5+ $6.58 $32.92

15+ $5.99 $89.85

30+ $5.44 $163.30

60+ $4.94 $296.59

120+ $4.80 $576.43

240+ $4.66 $1,119.37

480+ $4.52 $2,171.74

Immediate availability

Dedicated technical support

Secure SSL payments

Micrometals T200-2: Iron Powder Toroid for RF and Audio Applications

The Micrometals T200-2 is a high-performance magnetic component made from carbonyl iron powder, designed to deliver excellent results in high-frequency circuits. This toroid is particularly valued for its magnetic stability, low permeability, and high Q factor, making it ideal for RF, audio, and EMI filtering applications.

Thanks to its compact geometry and Mix 2 formulation, the T200-2 enables efficient design of inductors and transformers, reducing losses and improving frequency response. It is a reliable choice for electronics engineers, radio amateurs, and designers of analog and digital circuits.

Applications of the T200-2 Toroid

The Micrometals T200-2 toroid is widely used in a variety of electronic applications where efficient energy handling and precise high-frequency response are required:

Low-frequency RF filters
Inductors for switching power supplies
Transformers for 200–400 MHz transmissions
High-fidelity audio circuits
EMI/RFI suppression systems
Amateur radio and DIY electronics projects

Advantages of the Micrometals T200-2

High thermal and magnetic stability
Excellent performance in RF environments
Easy to wind and integrate into circuits
Readily available and competitively priced
Compliant with international standards for passive components

Micrometals MIX 2 - KEY FEATURES

Industry standard for RF and audio applications
Carbonyl Iron mix - exclusively from Micrometals
High Q up to 40 MHz
Used for moderate band transformers 200 to 400 MHz
Permeability of 10μ
The low permeability results in lower operating AC flux density than other materials with no additional gap‐loss

Specifications

Color code:
red/clear
Material:
2
Permeability (µ_i):
10
A_L 100 turns:
120 µH
Frequency range:
0.25 - 20 MHz
Outer diameter (metric):
50.8 mm
Inner diameter (metric):
31.8 mm
Height (metric):
14 mm
Outer diameter (imperial):
2 in
Inner diameter (imperial):
1.25 in
Height (imperial):
0.55 in

Datasheet

PDF · 438.3 kB

View

Compliance

Country of origin:
US
EU Tariff Code:
85049018
Weight:
83.00 g
RoHS:
Yes
REACH:
SVHC not present
