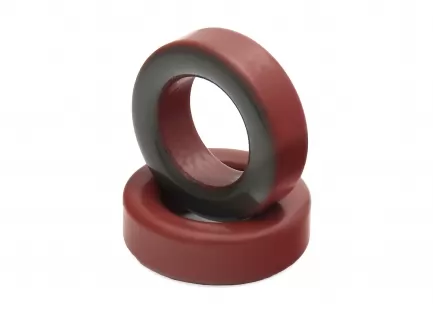

Name: T157-2 iron powder toroid core, 0.25 - 20 MHz, OD 39.9 mm
Brand: Micrometals
SKU: T157-2
Price: 4.71 EUR
Availability: InStock

Micrometals T157-2 T157-2 iron powder toroid core, 0.25 - 20 MHz, OD 39.9 mm

T157-2 Micrometals
T157-2 iron powder toroid core, 0.25 - 20 MHz, OD 39.9 mm Brand: Micrometals Manufacturer code: T157-2 Order code: T157-2 Category: RF iron powder toroids Product conditions: N (0 comments)

Specifications

Color code:
red/clear
Material:
2
Permeability (µ_i):
10
A_L 100 turns:
140 µH
Frequency range:
0.25 - 20 MHz
Outer diameter (metric):
39.9 mm
Inner diameter (metric):
24.1 mm
Height (metric) :
14.5 mm
Outer diameter (imperial):
1.57 in
Inner diameter (imperial):
0.95 in
Height (imperial) :
0.57 in

Documents (1)

	Title	Dimension
	T157-2 - Datasheet	438.8 kB

MIX 2 - KEY FEATURES
- Industry standard for RF and audio applications
- Carbonyl Iron mix - exclusively from Micrometals
- High Q up to 40 MHz
- Used for moderate band transformers 200 to 400 MHz
- Permeability of 10μ
- The low permeability results in lower operating AC flux density than other materials with no additional gap‐loss

Compliance

Country of origin:
US
EU Tariff Code:
85049018
Weight:
55.00 g
RoHS:
Yes
REACH:
SVHC not present

Comments (0)

Do login to add your comment

Availability
Stock (immediate dispatch)	535 pcs
Need more quantity? Click here to check lead time

Cart
Minimum: 1 pc - Multiple: 1 pc Unit Price: $5.51 / pc Ext. price: $5.51 (VAT tax not included)

Prices
Q.ty	Unit Price	Ext. price
1+	$5.51	$5.51
10+	$4.87	$48.75
30+	$4.31	$129.41
60+	$3.93	$235.67
120+	$3.57	$427.85
240+	$3.40	$816.43
480+	$3.24	$1,554.30
960+	$3.09	$2,962.71
(VAT tax not included)

Factory lead time for more quantity
Estimated production time from the factory for quantities exceeding those available from stock	14 wks.
